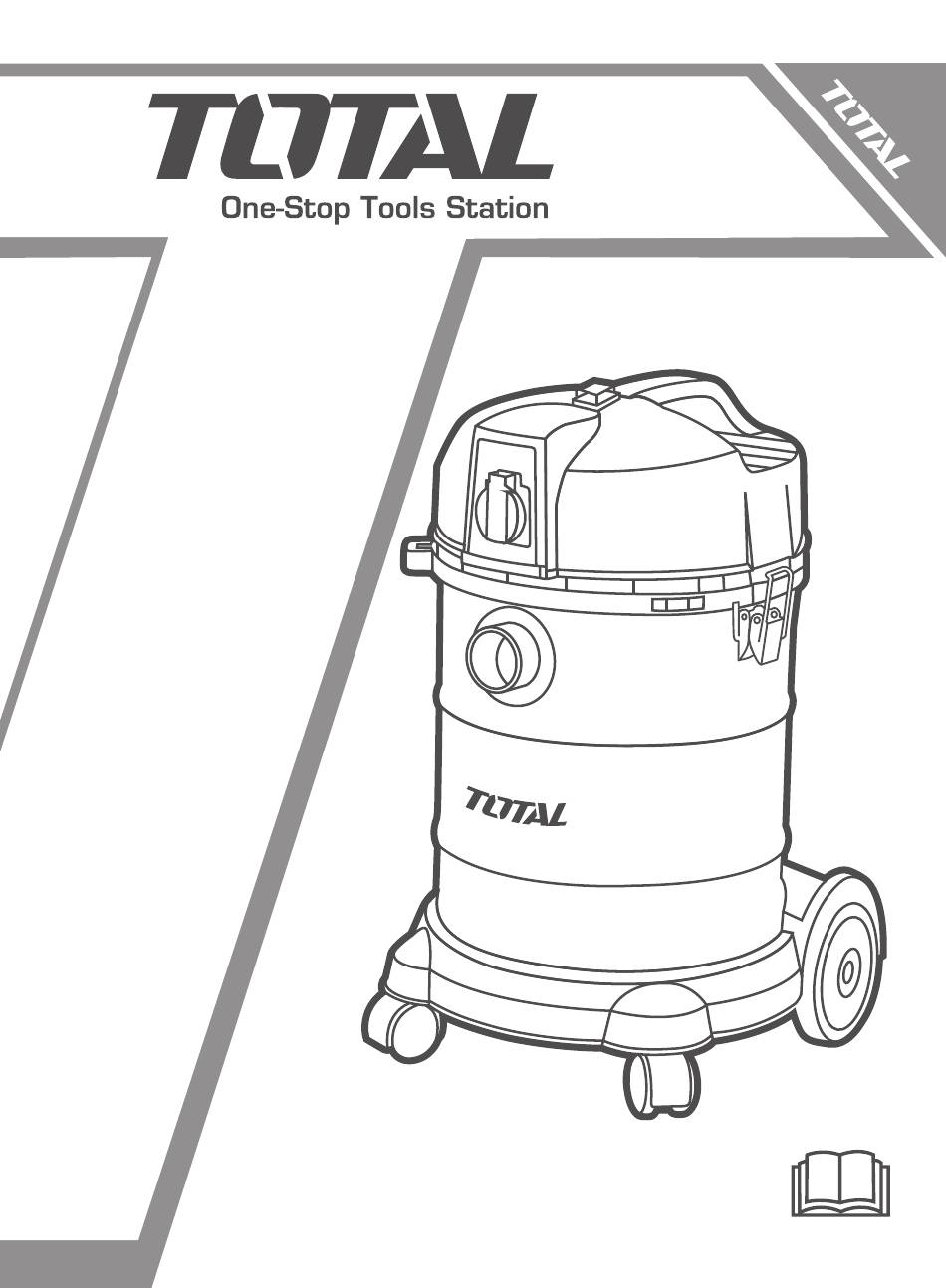

- Page 1 PRODUCT MANUAL VACUUM CLEANER TVC14301 TVC14301xy UTVC14301 x (blank, 1,2,3,4,5,6,7,8,9,E,S,A,M) y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English THE SYMBOLS IN INSTRUCTION MANUAL Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 7: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING To reduce the risk of fire, electric shock, or injury: Do not use outdoors. Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use and before servicing. Do not allow to be used as a toy. -
Page 8: Intended Use
| English INTENDED USE The vacuum cleaner is designed for wet and dry vacuuming using the appropriate filter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances. -
Page 9: Technical Specifications
| English SPECIFICATIONS 1. Blower 5.Locking block 2. Hose connector 6.Power cord plug 3. Dust barrel 7.Wheel 4.Switch Technical specifications Model No. TVC14301 TVC14301xy UTVC14301 Voltage 220V-240V~50/60Hz 110V-120V~60Hz Input power 1400W 1400W Dust capacity Air flow 1.8-1.9 m3/min 1.8-1.9 m3/min Vacuum pressure 16-18kPa 16-18kPa... - Page 10 | English OPERATION PICTURE...
-
Page 11: Operation
| English OPERATION Release the lock block to open the up housing, take out wheels and accessories. (see Figure A) Install 4 small wheels. (see Figure B) Put the hose connector into ①, the suction function is available Put the hose connector into ②, the blow function is available. -
Page 12: Troubleshooting
| English TROUBLESHOOTING Problem Possible cause Solution • Check if the power plug is • Re-plug the plug to the socket. plugged well to the socket. • Make sure there is power in the The electric motor • Check if there is power in socket. - Page 13 TOTAL TOOLS WORLD MADE IN CHINA T1123.V01 NEWWAY TECHNOLOGY (SUZHOU) CO.,LIMITED No.20 Dagang Road, Fuqiao Town, Taicang City, China...
