Summary of Contents for Total TVLI2001

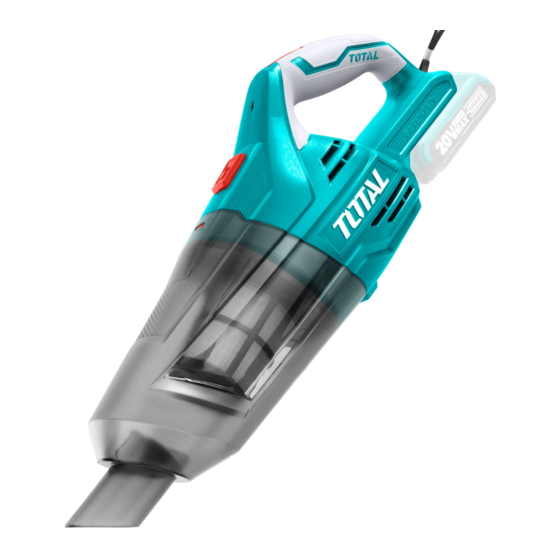

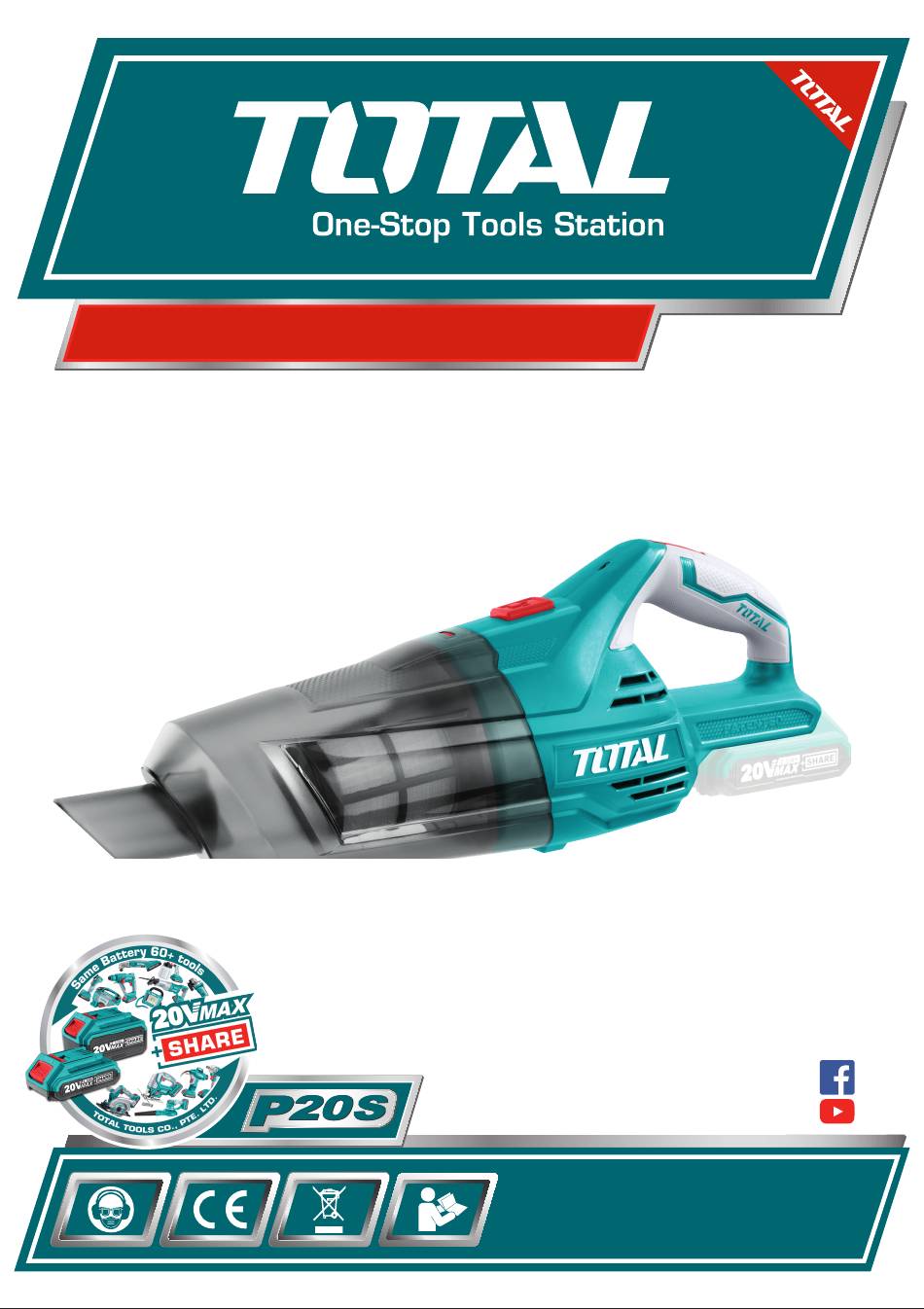

- Page 1 LITHIUM-ION VACUUM CLEANER TVLI2001 totaltoolsworld TOTAL TOOLS WORLD...
-
Page 2: Safety Regulations
SAFETY REGULATIONS Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Warning! This vacuum cleaner is not intended for use by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 3: Operation
OPERATION Installing /Removing Battery Pack Insert the battery pack into the product as shown. (FIG.2) Make sure the latches on the battery pack snap into place and that battery pack is secured in the product before beginning operation. Make sure the on/off main switch is in the off(O) position before remove the battery pack. Depress the latches to remove the battery pack.(FIG.3) Warning! Battery tools are always in operating condition. - Page 4 Check the filters Press the release button for dust cup, open the dust cup. FIG.4 Take out the dust cup cover from the dust cup(step1), turn off the filter net from the dust cup cover(step2), check and turn tight the HEPA filter on the dust cup cover. (see FIG.5) Turn tight the filter net on the dust cup cover(step3), put in the dust cup cover to the dust cup(step4).
- Page 5 To switch on the vacuum cleaner, press the ON/OFF button; to switch off the vacuum cleaner, press the ON/OFF button. (see FIG.7) To adjust the vacuum cleaner running speed, press the speed adjustment switch; can select high or low speed. (see FIG.8) For safe and proper working, always keep the vacuum cleaner and ventilation slots clean.
- Page 6 If the HEPA filter is found to be damaged, replace the HEPA filter in time. If the HEPA filter is used too many times, please replace the filter in time. There is a sling on the vacuum cleaner that can be hung on a reliable hook.(see FIG.11)
- Page 7 TVLI2001 Exploded view...
- Page 8 TVLI2001 Spare part list Part Description Part Description Sling Gasket Switch lable Dust blocking board Switch stand Dust cup Spring Release button for dust cup Battery connector Fixed cylinder Left shell Motor Right shell Motor seal Screw ST4 14 Motor cover...
- Page 9 LITHIUM-ION VACUUM CLEANER www.totaltools.cn TOTAL TOOLS CO., PTE. LTD. MADE IN CHINA T1119.V02...
