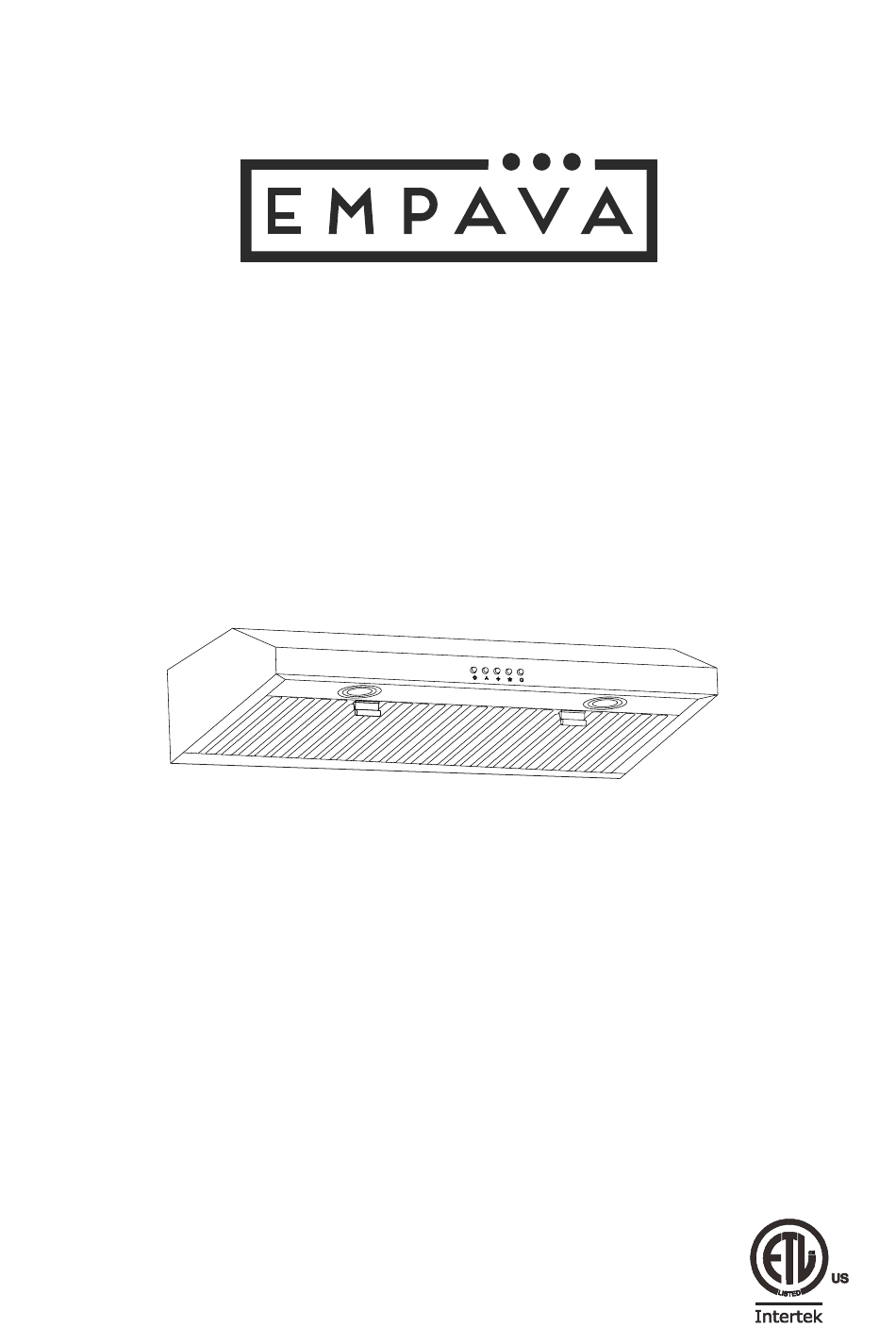

- Page 1 Model No.: EMPV-30RH15F RANGE HOOD Installation and Operation Manual EMPAVA APPLIANCE INC. Add: 15253 Don Julian Rd, City of Industry, CA 91745 Tel: 888-682-8882 www.empava.com 5020256...
-
Page 2: Table Of Contents
Table of Contents Warning Main Parts Name Opening size Specifications Installation Requirement 7-14 Installation Procedures Installation of carbon filters Operations Maintenance To Replace Light Trouble shooting... -
Page 3: Warning
Warning 1. Installation work and electric wiring (including switch location) must be done by the qualifed person(s) in accordance with local applicable codes and standards, including fre-rated construction. 2. This hood may have sharp edges. Be car eful to avoid cuts and abrasions during installation and cleaning. - Page 4 WARNING TO REDUCE THE RISK OF INJURY IN THE EVENT OF A RANGE TOP FIRE, OBSER VE THE FOLLOWING 1. SMOTHER FLAMES with a close-ftting lid, cookie sheet or met al tray, If the fames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
-
Page 5: Main Parts Name
Main Parts Name Hood Body Baffle filters Opening Size Top Vent Round Adaptor Top & back Vent Rectangle Adaptor (10" x 3 1/4") (6") -
Page 6: Specifications
Specifications: Model： EMPV-30RH15F Voltage: 110V-120V/60Hz Air exit: 6" Duct Light: 2x2W LED Motor power: 135W Total power: 139W Filter: Steel baffle filters Control: 3 speed push button Installation Requirement Do not install the range hood where there are many doors or windows, to avoid effecting the exhuast effciency of the hood cause by air convection. -
Page 7: Installation Procedures
Installation Procedures Safety Warning: Hood may have very sharp edges. Please w ear protective gloves if it is necessary to remove any parts from installing, c leaning or servicing. Installation Height 3. The distance between the stove surface and the underside of the range hood must be in the range of 26"-33"... - Page 8 Calculating Vent System Length To Calculat...
- Page 9 Parts Supplied Note: The fasteners included may not suitable to your cabinet. Please check with the installer on proper fasteners to be used on the material makeup of your cabinet. (A) Range hood (B) Power cord with 3-prong plug (C)6" round air vent (attached to top of the range hood) (D) 3-1/4"x10"...
- Page 10 Ventilate out of your dwelling vertically by using the 6" round air vent (c) of located on top of the range hood. 1. Remove the (7) set screws from the air vent (C) that is attached to the top of the range hood and remove the air vent.
- Page 12 1. Remov7 the (7)
-
Page 14: Installation Of Carbon Filters
1. Some models, depending on motor configuration, have a lever on the bottom of the range hood to determine whether the range hood will operate in the ducked or ductless mode. For other models, simply removing or not removing the recirculating plate cover on top of the range hood will determine ducted or ductless mode of operation. -
Page 15: Operations
Operation 1).Push Button Press to turn on /off the light. Press to select the high speed. Press to select the medium speed. Press to select the low speed. Press to select on/off. Maintenance Caution: Never put your hand into the area housing while the fan is operating. For the optimal level of operation, c lean the range hood surface, f an, and stainless steel filter regularly. -
Page 16: To Replace Light
To Replace Light Caution: LED light can not replace a new bulb, replace the whole LED light. Make sure all the control switches are off, and the r ange hoods unplugged! Please follow below instructions: Take out the fliters and cut off the wire connection of the light, press the spring according to the arrow direction, then y ou can take off the LED light unit.
