Summary of Contents for Empava EMPV-30RH05

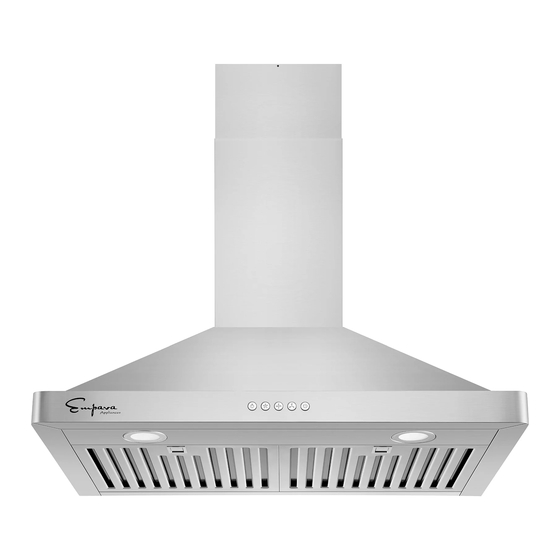

- Page 1 RANGE HOOD Installation and Operation Manual EMPAVA APPLIANCE INC. Add: 15253 Don Julian Rd, City of Industry, CA 91745 Tel: 888-682-8882 www.empava.com...
-
Page 2: Technical Characteristics
Thanks for your purchase of our range hood and we hope we can fully satisfy all of your needs. Please read the entire instructions carefully before proceeding to obtain the best results of operation the range hood. TECHNICAL CHARACTERISTICS Model No.: EMPV-30RH05 EMPV-30RH06 Total power: 204W Motor power: 200W Led Light:... -
Page 3: Main Parts Name
MAIN PARTS NAME EMPV-30RH05 Hook Inner duct cover Outer duct cover Vent pipe Blower box Filter EMPV-30RH06 Hook Inner duct cover Outer duct cover Vent pipe Air outlet Blower box Glass Filter... -
Page 4: Installation Requirement
INSTALLATION REQUIREMENT 1. Do not install the range hood where there are many doors ro windows in order to avoid effecting the exhaust efficiency of the hood that caused by air convection. (fig.1) 2. Install the range hood right above the cooking surface. The recommended distance between the cooking surface and the lower edge of the range hood is minimum 27.56"... - Page 5 INSTALLATION PROCEDURES SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. Vent pipe Air outlet Step 1: Put the vent pipe to the air outlet like this picture.
- Page 6 Step5: Expanding tube A ccording to the size of hook key holes. 5x50 Drill 3 holes in level in the wall with Metal Screw 10mm in diameter and 75~85mm in depth. Press the 3 expanding tube provided into Hook the holes. Fix the hook using the 5x50 metal screw provided.
-
Page 7: Touch Control
OPERATING INSTRUCTION 1).Electronic Switch 2). Touch Control A. Light B. Time C. Speed down D. Speed up E. Max speed F. On /off A: Light Press the button once to turn on the light, press again to turn off. B. Timer In standby mode, press 3 seconds, to enter into time setting mode, Press “+”... - Page 8 MAINTENANCE CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING WHILE THE FAN IS OPERATING. FOR THE OPTIMAL LEVEL FO OPERATION, CLEAN THE RANGE HOOD SURFACE, AN AND ALUMINUM FILTER REGULARLY. 1. Use only mild soap or detergent solutions to clean the range hood surface.
- Page 9 Do not connect the air outlet to chimney flues or combustion gas ducts Do not leave naked flames under the hood In case of any damage to power cable, replace the broken cable with a new one by qualified person. Do clean the hood correctly in accordance with instruction stated or it...
- Page 11 WARNING – TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
-
Page 12: Troubleshooting
TROUBLE SHOOTING CAUTION: Disconnect the power supply before servicing. Cause and Method of Repairing Tools required Status Check circuit breakers Philips If the power supply is damaged, No power Screwdriver please call for a qualified person a).The motor is broken, replace motor. The motor Philips b).
