Summary of Contents for Empava EMPV-30RH13

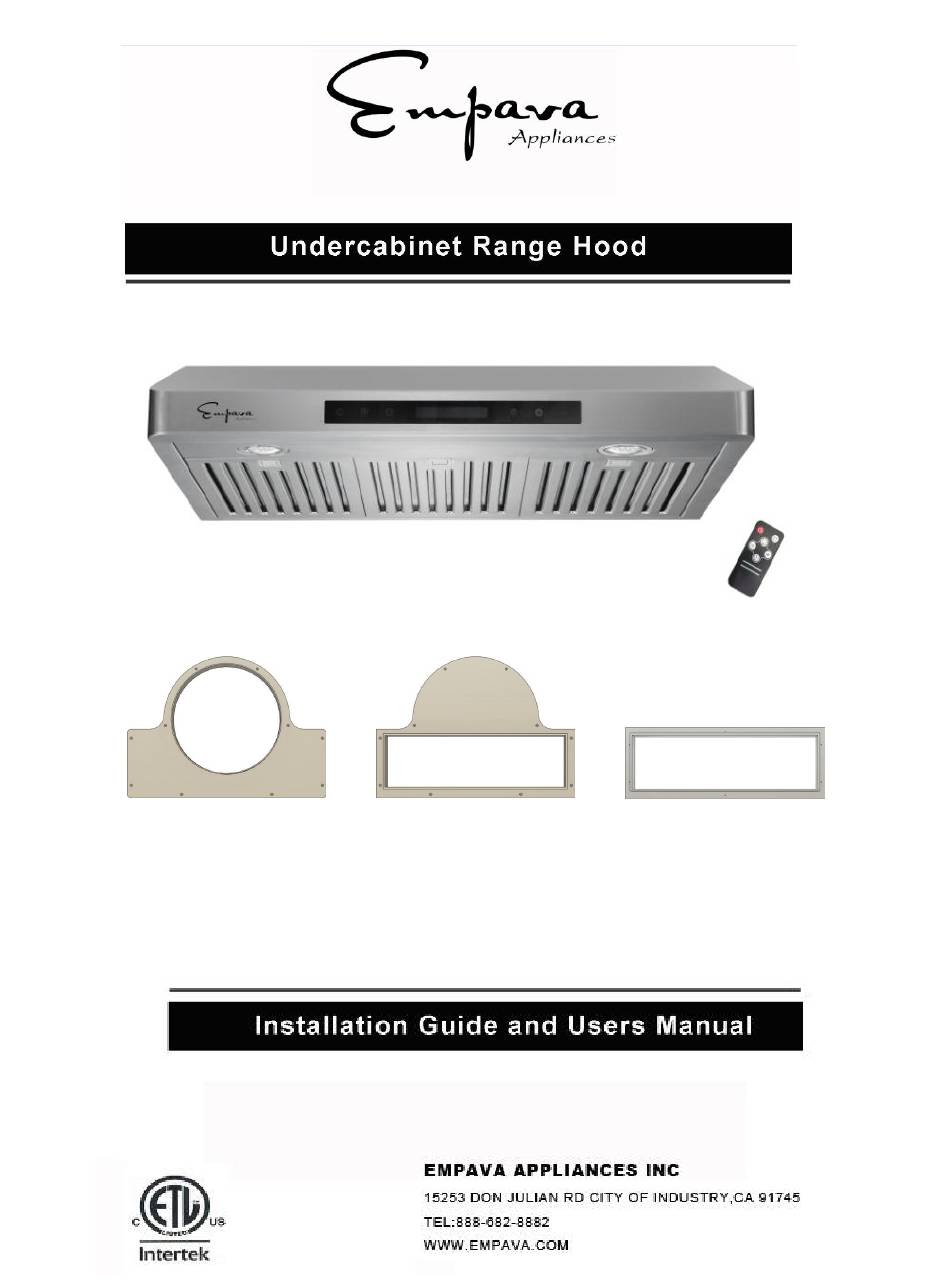

- Page 1 6" Top 3-1/4" x 10" Top 3-1/4" x 10" Rear Round Adapter Rectangular Adapter Rectangular Adapter * 3 adapters and 1 top cover are included. * 1 remote control is included. EMPV-30RH13/36RH14...
- Page 2 PLEASE FOLLOW THESE INSTRUCTIONS TO TEST THE RANGE HOOD BEFORE INSTALLATION FOR ANY DEFECTS In case of this manual destroyed or lost, please visit OR SHIPPING DAMAGE: https://www.empava.com and downloadadigital version. Remove the range hood and accessories from the package carefully.
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions Installation Preparations Venting Requirements Venting System Setup Duct Run Calculation Chart Electrical Requirement Installation Installing the Range Hood Connecting the Vent System Electrical Connection Installing the Baffle Filters Completing the Installation Range Hood Use Range Hood Control Panel Range Hood Care Clean the Exterior Surfaces... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR Cherries Jubilee, Peppercorn Beef Flambé). PERSONAL INJURY,PLEASE READ THE FOLLOWING • Clean ventilating fans frequently. Grease should not CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, be allowed to accumulate on the fan or filter. INSTALL,OPERATE OR MAINTAIN THE RANGE HOOD: •... -
Page 5: Installation Preparations
INSTALLATION PREPARATIONS Venting Requirements DO NOT • Have the venting system go vertically from the • End the venting system in an enclosed area indoors. range hood to the roof if possible. • Use plastic vent. • Have 24"-30"distance between the cooktop and •... -
Page 6: Duct Run Calculation Chart
INSTALLATION PREPARATIONS IMPORTANT! • Iflong duct run is needed, increase the duct size from 6" to 7" or 8" to 9". • Ifa reducer is needed, use a long reducer instead of a pancake reducer and install it as far away from the range hood as possible. -
Page 7: Installation
INSTALLATION This range hood series can be: The following steps require 2 or more people: • Installed under the cabinet. • Draw the power cord through the bottom cutout and align the range hood beneath the • Installed on the wall without a cabinet. cabinet so that the exhaust on the Hood and the cutout are in line. -
Page 8: Connecting The Vent System
INSTALLATION • Determind the location to install the Hood. wire connectors. • Use a stud finder to locate and mark 2 studs within • Store the excess wires in the wiring box. the installation area. • Reconnect the power. • Align and securely install the Brackets to the studs. -
Page 9: Range Hood Use
RANGE HOOD USE Range Hood Control Panel • When the Delayed Auto Shut Off function is activated a countdown timer will show up in the LCD display. Remote Control Delayed Auto Sensor Shut Off Light Touchthe Light button once and the lamps will turn •... -
Page 10: Range Hood Care
RANGE HOOD CARE Cleaning front, align and insert the filter. • Pull the spring release handle and push the filter WARNING into position. • Release the handle. • To reduce the risk of electrical shock, DO NOT clean • Repeat the steps for the remaining filters. the hood while it's operating. -
Page 11: Range Hood Troubleshooting
RANGE HOOD TROUBLESHOOTING Before Calling forService Issue Possible Cause / Solution • Check if the range hood is plugged in. Make sure that all The range hood doesn't turn on power is turned on, the fuse isn't blown and all electrical wirings are properly connected. -
Page 12: Warranty
Empava will, at our options, • Describe the issue you are experiencing in detail. either repair or replace any part of our products...
