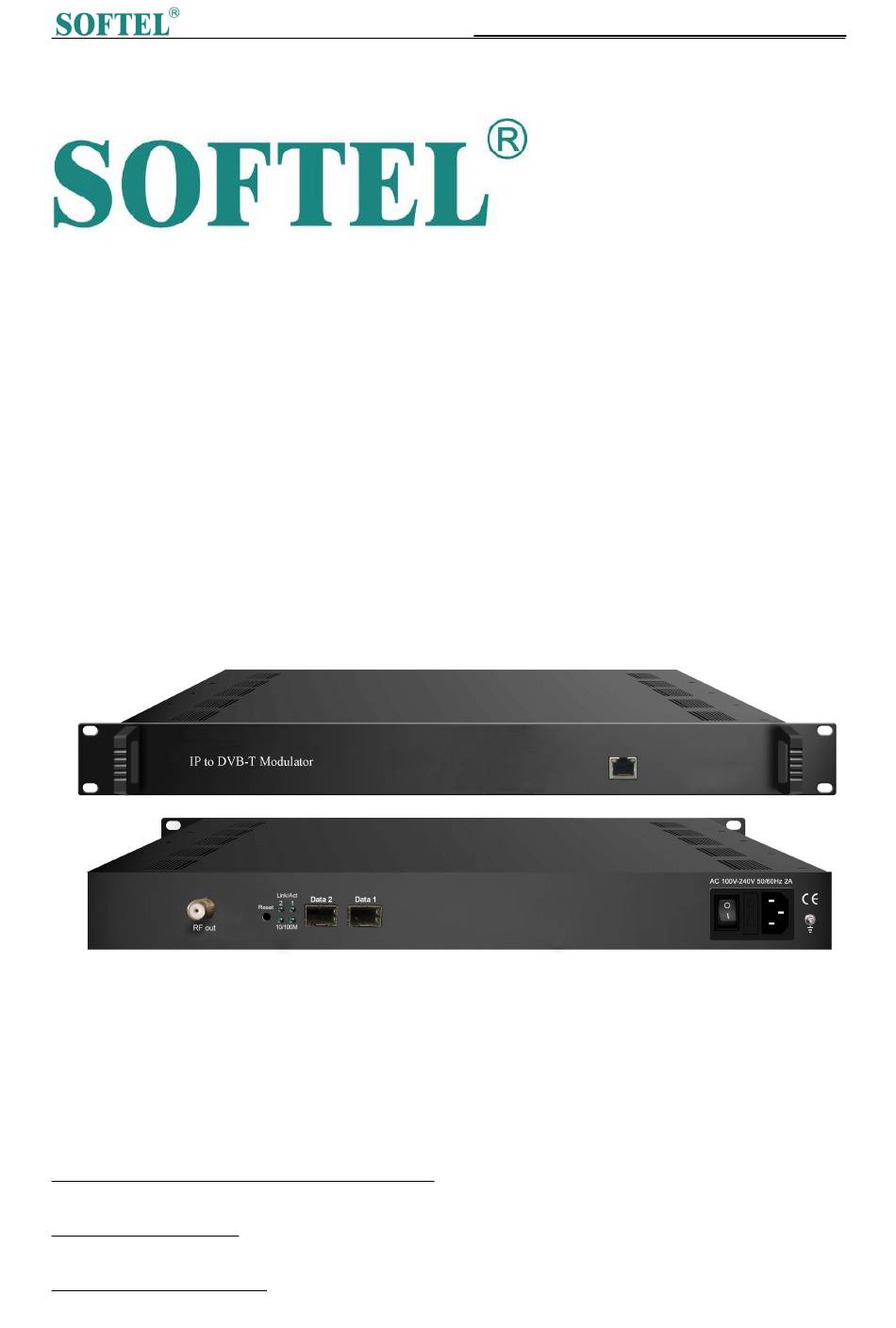

- Page 1 SFT3308T IP to DVB-T Modulator User Manual SFT3308T IP to DVB-T Modulator User Manual SW Version: 1.23 Build 200.00 Jul 19 2016 HW version: 0.90.0.0 Web NMS version: 1.10...
-
Page 2: About This Manual
SFT3308T IP to DVB-T Modulator User Manual About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. -
Page 3: Table Of Contents
SFT3308T IP to DVB-T Modulator User Manual Directory Chapter 1 Product Overview .................... 4 1.1 Outline .......................... 4 1.2 Inner Structure ......................4 1.5 Specifications ....................... 5 Chapter 2 Physical Presentational Statement ..............5 2.1 Front panel Illustration: ....................6 2.2 Rear panel Illustration: .................... -
Page 4: Chapter 1 Product Overview
SFT3308T IP to DVB-T Modulator User Manual Chapter 1 Product Overview 1.1 Outline This IP to DVB-T modulator is an all-in-one device developed by us. It has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 1024 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. -
Page 5: Carrier Setting Illustration
SFT3308T IP to DVB-T Modulator User Manual 1.4 Carrier Setting Illustration 1.5 Specifications Input 512×2 IP input, 2 100/1000M Ethernet Port (SFP) Input Transport Protocol TS over UDP/RTP, unicast and multicast, IGMP V2/V3 Transmission Rate Max 840Mbps for each input channel... -
Page 6: Chapter 2 Physical Presentational Statement
SFT3308T IP to DVB-T Modulator User Manual Demission 420mm×440mm×44.5mm (WxLxH) Weight General Temperature 0~45℃(operation), -20~80℃(storage) Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz Consumption ≤20W Chapter 2 Physical Presentational Statement 2.1 Front panel Illustration: 2.2 Rear Panel Illustration: NMS: network management port... -
Page 7: Chapter 3 Installation Guide
SFT3308T IP to DVB-T Modulator User Manual Power switch AC Power Socket Grounding Chapter 3 Installation Guide 3.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: IP to DVB-T Modulator ... -
Page 8: Grounding Requirement
SFT3308T IP to DVB-T Modulator User Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m. - Page 9 SFT3308T IP to DVB-T Modulator User Manual Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible. Users should make sure the 2 ends of grounding wire well electric conducted and be antirust.
-
Page 10: Chapter 4 Web Nms Management
SFT3308T IP to DVB-T Modulator User Manual Chapter 4 Web NMS Management This device does not support the LCD operation, and the modification can only be operated under Web NMS. 4.1 Login The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address. - Page 11 SFT3308T IP to DVB-T Modulator User Manual User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 4.2.2 Parameters Parameters → TS Config: Click “TS Config”, it displays the interface where users can configure the output TS parameters in this interface.
-
Page 12: Stream Select
SFT3308T IP to DVB-T Modulator User Manual Figure-4. Users can select the output TS channels. To select output TS channel 1-8 Figure-4 Stream Select From the menu on up side of the webpage, clicking “Stream Select”, it displays the interface where users can choose the programs to Mux out. -
Page 13: Program Modification
SFT3308T IP to DVB-T Modulator User Manual : To enable/disable the PID remapping To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output. - Page 14 SFT3308T IP to DVB-T Modulator User Manual Add description Figure-7 Users click the interface is display as below, and click to apply the modified parameters.(Figure-8) Figure-8 PID Pass From the menu on up side of the webpage, clicking “PID Pass”, it displays the interface where to add...
- Page 15 SFT3308T IP to DVB-T Modulator User Manual Figure-9 Parameters → Modulator: From the menu on left side of the webpage, clicking ‘Modulator’, it will display the interface as Figure-10 where to set RF output parameters. Click to set all To set the common...
- Page 16 SFT3308T IP to DVB-T Modulator User Manual Parameters → IP Stream: This modulator supports TS to output in IP (8*MPTS) format through the DATA port. Click ‘IP Stream’, it will display the interface as Figure-12 where to set IP out parameters.
- Page 17 SFT3308T IP to DVB-T Modulator User Manual parameters. Figure-13 System → Password: From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-14 where to set the login account and password for the web NMS.
- Page 18 SFT3308T IP to DVB-T Modulator User Manual Figure-14 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen as Figure-15 where to set your configurations for the device. Select areas...
- Page 19 SFT3308T IP to DVB-T Modulator User Manual Figure-15 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-16 where to update firmware for the device. Browse botton… Figure-16 System → Log: From the menu on left side of the webpage, clicking “Log”, it will display the screen as Figure-17...
-
Page 20: Chapter 5 Troubleshooting
SFT3308T IP to DVB-T Modulator User Manual To select “Kernel log” and “System Log” Figure-17 Chapter 5 Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All of our products have been passed the testing and inspection before ship out factory. -
Page 21: Chapter 6 Packing List
SFT3308T IP to DVB-T Modulator User Manual Frequently switching on/off device is prohibited; the interval between every switching on/off must greater than 10 seconds. Conditions need to unplug power cord Power cord or socket damaged. Any liquid flowed into device.
