SFT3542H
Encoder Modulator User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFT3542H and is the answer not in the manual?

Questions and answers

Related Manuals for Softel SFT3542H

Summary of Contents for Softel SFT3542H

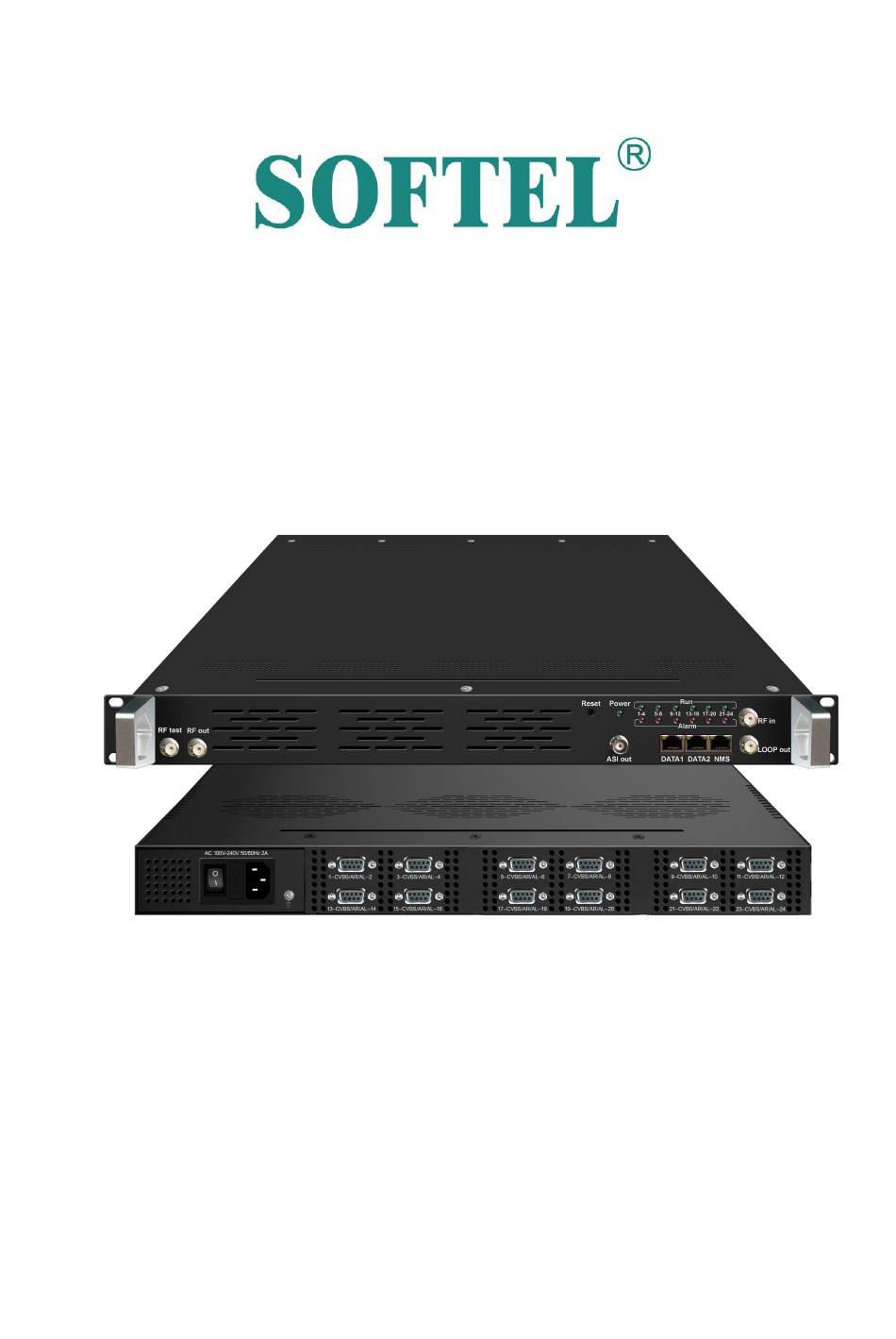

  • Page 1 SFT3542H Encoder Modulator User Manual...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. SOFTEL shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    SFT3542H Encoder Modulator User Manual Directory CHAPTER 1 INTRODUCTION.......................... 1 ..........................1 1.1 P RODUCT VERVIEW 1.2 K ............................1 EATURES ............................2 1.3 S PECIFICATIONS 1.4 P .............................3 RINCIPLE HART CHAPTER 2 INSTALLATION GUIDE......................... 6 ...........................6 2.1 G ENERAL RECAUTIONS 2.2 P...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Product Overview SFT3542H24 in 1 encoder modulator is SOFTEL’s newest devices which integrate encoding, multiplexing, scrambling and DVB-C/T modulation. It supports 24 CVBS input, one DVB-C tuner input and 128 IP input with Data1 (GE) and Data2 (FE) port.

  • Page 6: Specifications

    SFT3542H Encoder Modulator User Manual 1.3 Specifications 24 CVBS inputs , RCA interface , Input 1 DVB-C Tuner, F type interface 128 IP input over UDP and RTP, DATA1 and DATA2,RJ45 720×480_60i, 544×480_60i, 352×480_60i 352×240_60i,320×240_60i,176×240_60i, 176×120_60i Resolution 720×576_50i,704×576_50i,640×576_50i, 352×288_50i 320×288_50i, 176×288_50i, 176×144_50i...

  • Page 7: Principle Chart

    SFT3542H Encoder Modulator User Manual Bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Guard 1/4, 1/8, 1/16, 1/32 Interval 1/2, 2/3, 3/4, 5/6, 7/8 ≥42 dB RF frequency 50~960MHz, 1KHz step 4*RF COFDM DVB-T out (4 carriers RF out combined output) RF output -28~ -3 dBm (77~97 dbµV), 0.1db step...
  • Page 8 SFT3542H Encoder Modulator User Manual DVB-T RF output 1.5 Appearance and Description Front and Rear Panel Illustration Page 4 / 30...
  • Page 9 SFT3542H Encoder Modulator User Manual RF test and RF out port Port Power supply and Grounding Pole 24CVBS input( DB9 to RCA) Reset Key/Data Port Indicator Indicator DATA Port (for IP stream input/output) NMS/CAS RF in and Loop out port...

  • Page 10: Chapter 2 Installation Guide

    SFT3542H Encoder Modulator User Manual Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product.

  • Page 11: Grounding Requirement

    SFT3542H Encoder Modulator User Manual 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity ground anti-static material: Machine Hall Floor 1X10 ~1X10 ，Grounding current limiting resistance: 1M (Floor bearing should be greater than 450Kg/㎡) 5~40℃(sustainable )，0~45℃(short time)，...

  • Page 12: Chapter 3 Web Nms Operation

    SFT3542H Encoder Modulator User Manual Chapter 3 WEB NMS Operation 3.1 Encoder login The default IP address of this device is 192.168.0.136. Connect the PC (Personal Computer) and the device with net cable, and use ping command to confirm they are on the same network segment.
  • Page 13 SFT3542H Encoder Modulator User Manual Current software version information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameters → Module 1-6 NDS3542H-24 support up to 6 modules with 24 CVBS input. From the menu on left side of the webpage, clicking “Module1-6”, it displays the information of each encoding...
  • Page 14 SFT3542H Encoder Modulator User Manual General settings for the Encoding program: User can edit any item listed as needed. Video Status read area Figure-3 Parameters → Tuner: From the menu on left side of the webpage, clicking “Tuner”, it displays the interface where users can configure the Tuner input parameters as Figure-4.
  • Page 15 SFT3542H Encoder Modulator User Manual Figure-4 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the TS output parameters.  TS Config→Output TS X: From the menu on up side of the webpage, clicking “Output TS X”, it displays the...
  • Page 16 SFT3542H Encoder Modulator User Manual Figure-5  TS Config→Stream select: From the menu on up side of the webpage, clicking “Stream select”, it displays the interface where users can select program(s) to multiplex out and modify program info. (Figure-6) Page 12 / 30...
  • Page 17 SFT3542H Encoder Modulator User Manual Input Area Output Area Operation Area Figure-6 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To add input channel which can from GE1/GE2/Connector : To edit the input channel...
  • Page 18 SFT3542H Encoder Modulator User Manual Similarly, user can cancel the multiplexed programs from the right box. To select all the input programs To select all the output programs To parse programs time limitation of parsing input programs  Program Modification: The multiplexed program information can be modified by clicking the program in the ‘output’...
  • Page 19 SFT3542H Encoder Modulator User Manual Figure-8  TS Config→PID Bypass: From the TS Config menu on up side of the webpage, clicking “PID Bypass”, it displays the interface as Figure-9 where user can add PIDs to be passed, click the “+” symbol, input current IP channel number, then input current IP source Pid and output Pid which is customer needed , then click “set”...
  • Page 20 SFT3542H Encoder Modulator User Manual Figure-9 Parameters → Scramber: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble (Figure-10). Output carrier select CA channel select EMMG and...
  • Page 21 Channel Config Figure-11 Parameters → IP Stream: SFT3542H supports TS to output in IP (Max 128 IP) format through the DATA1 and DATA2 port. Click ‘IP Stream’, it will display the interface where to set IP out parameters (Figure-12). Page 17 / 30...
  • Page 22 SFT3542H Encoder Modulator User Manual Quickly Config Channel Config Figure-12 System → Network: Click ‘Network’, it will display the interface as Figure-13 where to set network parameters. Page 18 / 30...
  • Page 23 SFT3542H Encoder Modulator User Manual Figure-13 System → password From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-14 where to set the login account and password for the web NMS. Page 19 / 30...
  • Page 24 SFT3542H Encoder Modulator User Manual Figure-14 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen as Figure-15 where to save/ restore/factory setting/ backup/ load your configurations. Page 20 / 30...
  • Page 25 SFT3542H Encoder Modulator User Manual Figure-15 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-16 where to update firmware for the modulator. Page 21 / 30...
  • Page 26 SFT3542H Encoder Modulator User Manual Figure-16 System→ Date/Time: From the menu on left side of the webpage, clicking “Date/Time”, it will display the screen as Figure-17 where to set date and time for the device. Page 22 / 30...
  • Page 27 SFT3542H Encoder Modulator User Manual Figure-17 System→ Log: From the menu on left side of the webpage, clicking “Log”, it will display the log interface as Figure-18 where to check or export the Kernel/System log. Page 23 / 30...
  • Page 28 SFT3542H Encoder Modulator User Manual Figure-18 Page 24 / 30...

  • Page 29: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by SOFTEL.

  • Page 30: Chapter 5 Packing List

    SFT3542H Encoder Modulator User Manual Chapter 5 Packing List SFT3542HEncoder Modulator 1 pcs DB9 to CVBS Adaptor Cables 12 pcs Power Cord 1pcs Page 26 / 30...
