Summary of Contents for Softel SFT3394T

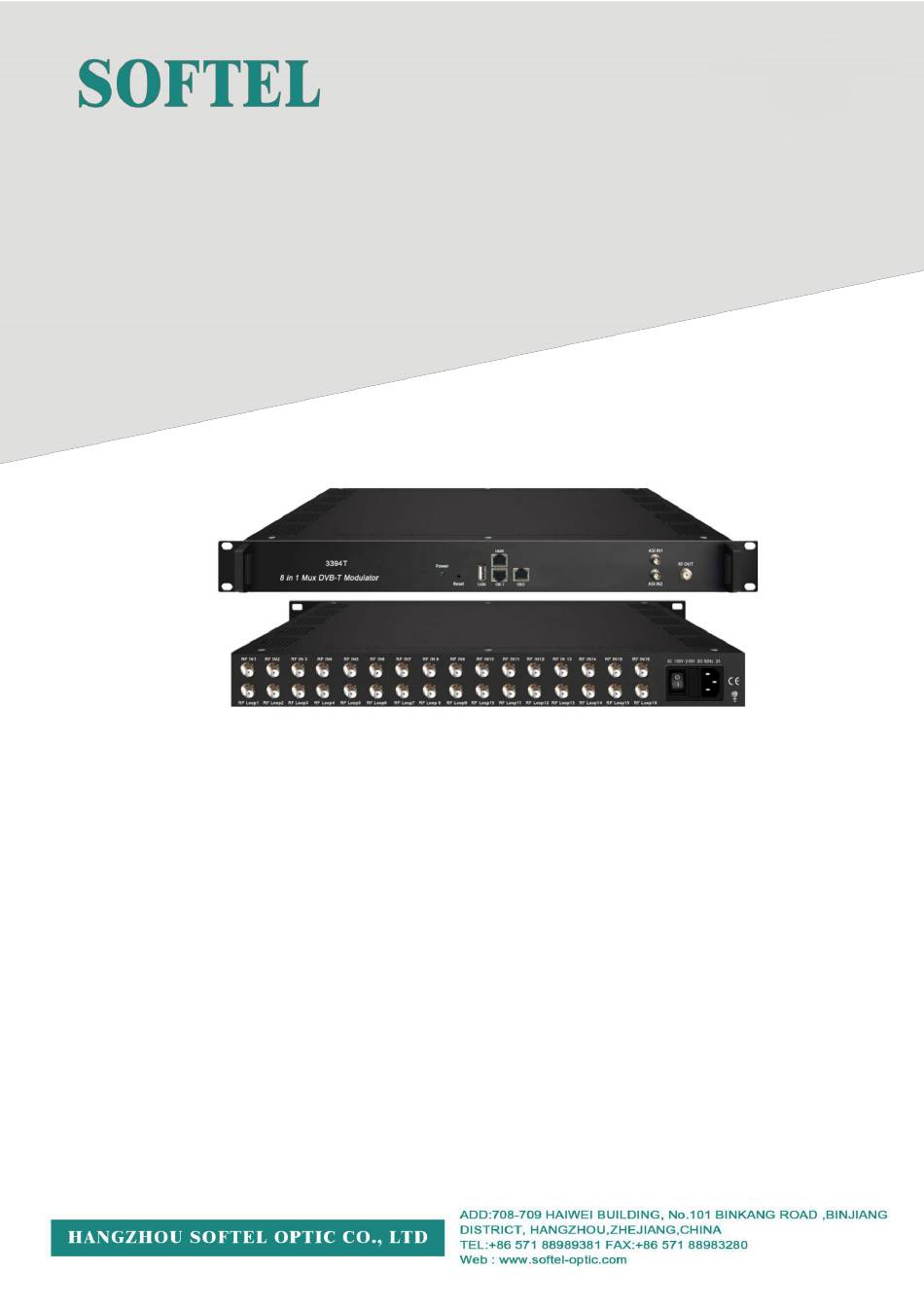

- Page 1 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual...
-
Page 2: Table Of Contents
DIRECTORY Chapter 1 Product Outline..................1 1.1 Outline...........................1 1.2Features..........................1 1.3 Principle Chart........................2 1.4 Technical Specifications.......................2 1.5 Appearance and description....................3 Chapter 2 Installation Guide..................5 2.1 Acquisition Check.........................5 2.2 Installation Preparation......................5 2.3 Wire’s Connection........................ 7 2.4 Signal Cable Connection...................... 7 Chapter 3 Web-based NMS Management..............9 3.1 login............................ -
Page 3: Chapter 1 Product Outline
(50MHz~960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with 2 ASI input ports. SFT3394T is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system. -
Page 4: Principle Chart
SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual 1.3 Principle Chart 1.4 Technical Specifications Input 16 DVB-S/S2 (DVB-T/T2 Optional) FTA Tuner 512 IP (GE1 and GE2)input over UDP and RTP protocol 2 ASI input, BNC interface Tuner DVB-S Input Frequency... -
Page 5: Appearance And Description
SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual 2K 4K 8K Bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Guard interval 1/4, 1/8, 1/16, 1/32 1/2, 2/3, 3/4, 5/6, 7/8 Stream 8 IP(MPTS) output over UDP /RTP, 100M/1000M self-adaption... - Page 6 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Rear Panel Illustration 16 channels RF IN/Loop out port Integrated power switch and socket Grounding Wire...
-
Page 7: Chapter 2 Installation Guide
SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ... - Page 8 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual should be 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity of ground anti-static material: Machine Hall Floor 1X10 ~1X10 ，Grounding current limiting resistance: 10 ...
-
Page 9: Wire's Connection
When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to SFT3394T 8 in 1 Mux DVB-T Modulator, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable. - Page 10 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Tuner Input/Loop Cable Illustration: ASI input cable illustration:...
-
Page 11: Chapter 3 Web-Based Nms Management
Users cannot use front buttons to set configuration, can only control and set the configuration in computer by connecting the device to web NMS Port. Users should ensure that the computer’s IP address is different from the SFT3394T’s IP address; otherwise, it would cause IP conflict. - Page 12 Figure-2 Parameters → Tuner 1-16 SFT3394T support 16 DVB-S/S2 (DVB-T/T2) tuner input. From the menu on left side of the webpage, clicking “Tuner1-16”, it displays the interface where users can set parameters as Figure-3. Figure-3 Parameters →...
- Page 13 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual interface where users can check output TS of each channel. (Figure-4) Figure-4 TS Config→Stream select: From the menu on up side of the webpage, clicking “Stream select”, it displays the interface where users can select program(s) to multiplex out and modify program info.
- Page 14 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual : To delete all inputs channel : To check input IP lock or not, green means current IP locked : To check current TS overflow or not, red color means current TS...
- Page 15 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Figure-7 TS Config→PID Bypass: From the TS Config menu on up side of the webpage, clicking “PID Bypass”, it displays the interface as Figure-8 where user can add PIDs to be passed, click the “+”...
- Page 16 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Quickly Config Channel Config Figure-9 Parameters → IP Stream: SFT3394T supports TS to output in IP (8*MPTS) format through the DATA port. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-10). Click here...
- Page 17 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Figure-11 System → password From the menu on left side of the webpage, clicking “Password”, it displays the screen as Figure-12 where to set the login account and password for the web NMS.
- Page 18 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Figure-13 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it displays the screen as Figure-14 where to update firmware for this modulator. Figure-14 System→ Log: From the menu on left side of the webpage, clicking “Log”, it displays the log...
- Page 19 SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Figure-15...
-
Page 20: Chapter 4 Troubleshooting
SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by SOFTEL. -
Page 21: Chapter 5 Packing List
SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Chapter 5 Packing List SFT3394T 8 in 1 Mux DVB-T Modulator User’s Manual Power Cord...
