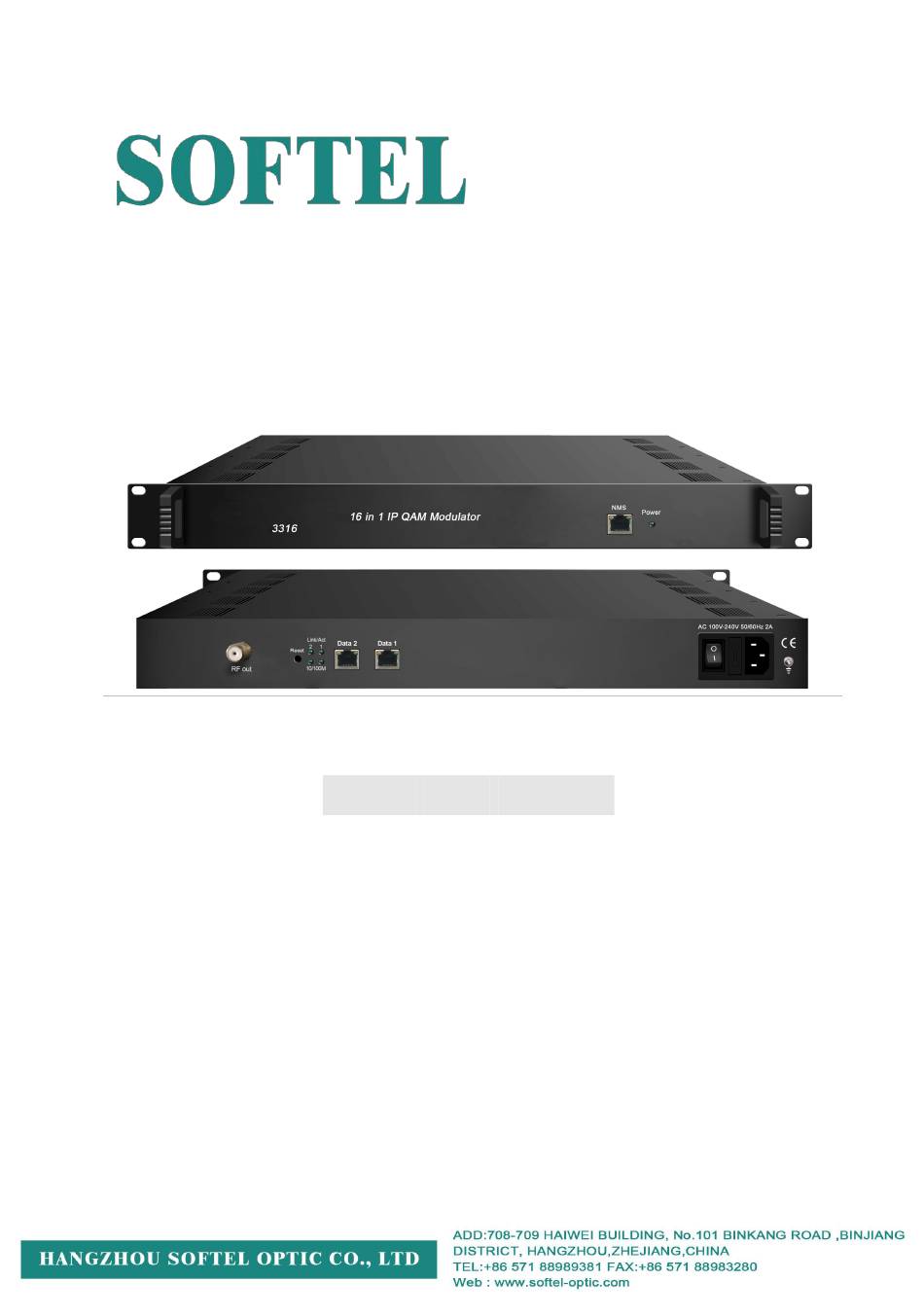

SFT3316 16 in 1 IP QAM Modulator
User Manual
About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate
and to install the product. Some chapters require some prerequisite knowledge in
electronics and especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written
permission of the copyright owner.
The contents of this document are subject to revision without notice due to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFT3316 and is the answer not in the manual?

Questions and answers

Related Manuals for Softel SFT3316

Summary of Contents for Softel SFT3316

  • Page 1 SFT3316 16 in 1 IP QAM Modulator User Manual About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.

  • Page 2: Table Of Contents

    This document includes some confidential information. Its usage is limited to the owners of the product that it is relevant to. It cannot be copied, modified, or translated in another language without prior written authorization from SOFTEL. Directory Chapter 1 Product Overview.................... 1 1.1 Outline...........................1...

  • Page 3: Chapter 1 Product Overview

    SFT3316 16 in 1 IP QAM Modulator User Manual 1 Chapter 1 Product Overview 1.1 Outline SFT3316 modulator latest generational Mux-scrambling-modulating all-in-one device developed by SOFTEL. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 512 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface.

  • Page 4: Specifications

    SFT3316 16 in 1 IP QAM Modulator User Manual 2 1.4 Carrier Setting Illustration 1.5 Specifications 512 IP input, 2 100/1000M Ethernet Port(SFP Input optional) Input TS over UDP/RTP, unicast and multicast, IGMP Transport Protocol V2/V3 Transmission Rate Max 840Mbps for each GE input...
  • Page 5 SFT3316 16 in 1 IP QAM Modulator User Manual 3 Constellation : 64QAM/ 256QAM J.83B Bandwidth :6M QAM Channel 16 non-adjacent carrier Modulation Standard EN300 429/ITU-T J.83A/B(DVB-C) Symbol Rate 5.0~7.0Msps, 1ksps stepping RS (204, 188) Interface 1 F typed output port for 16 carriers, 75Ω impedance...

  • Page 6: Chapter 2 Physical Presentational Statement

    SFT3316 16 in 1 IP QAM Modulator User Manual 4 Chapter 2 Physical Presentational Statement 2.1 Front panel Illustration: 2.2 Rear Panel Illustration: NMS/CAS: network management port and CA data port RF output port Reset IP: Reset webmaster IP address, recover it to default IP address...

  • Page 7: Chapter 3 Installation Guide

    SFT3316 16 in 1 IP QAM Modulator User Manual 5 Chapter 3 Installation Guide 3.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 8 SFT3316 16 in 1 IP QAM Modulator User Manual 6 Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
  • Page 9 When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to SFT3316 16 in 1 IP QAM Modulator, user should set the power switch to “OFF”.

  • Page 10: Chapter 4 Web Nms Management

    SFT3316 16 in 1 IP QAM Modulator User Manual 8 Chapter 4 Web NMS Management User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from this device’s IP address;...
  • Page 11 SFT3316 16 in 1 IP QAM Modulator User Manual 9 over view of the system information. User can click any item here enter corresponding interface to check information or set the parameters. Figure-2 4.2.2 Monitor Monitor → Input Status: Clicking “Input Status”, it will display the interface as Figure-3 where users can monitor the...
  • Page 12 SFT3316 16 in 1 IP QAM Modulator User Manual 10 Figure-3 Monitor → Output Status: Clicking “Output Status”, it will display the interface as Figure-4/5 where users can monitor output status of the 16 IP and 16 QAM. Figure-4...
  • Page 13 SFT3316 16 in 1 IP QAM Modulator User Manual 11 Figure-5 4.2.3 Parameters Parameters → TS Config: Clicking “TS Config”, it will display the interface where users can configure the output TS parameters in this interface.  Output TS X Clicking “Output TS X”, it will display the interface as Figure-6 where users can select the...
  • Page 14 SFT3316 16 in 1 IP QAM Modulator User Manual 12 To select output TS channel 1-16 Figure-6  Stream Select Clicking “Stream Select”, it will display the interface where users can choose the programs to Mux out. (Figure-7) Input Area...
  • Page 15 SFT3316 16 in 1 IP QAM Modulator User Manual 13 : To add input channel which come from Data1and Data 2 : To edit the input channel : To delete the input channel : To delete all inputs channel : To check input IP lock or not, green means current IP locked...
  • Page 16 SFT3316 16 in 1 IP QAM Modulator User Manual 14 Figure-8  General Clicking “General”, it will display the interface where users can set parameters for each output channel. (Figure-9)
  • Page 17 SFT3316 16 in 1 IP QAM Modulator User Manual 15 Figure-9 Users click the interface is display as below, and click to apply the modified parameters. (Figure-10) Figure-10 PID Pass  Clicking “PID Bypass”, it will display the interface as Figure-11 where user can add PIDs to be passed, click the “+”...
  • Page 18 SFT3316 16 in 1 IP QAM Modulator User Manual 16 scramble. (Figure-12) Scramble channel select CA channel select EMMG and ECMG working state, green means work normally, while red means communication error communication. This field indicates current outputting programs. The programs selected will be scrambled.
  • Page 19 When users click “Channel config” button, it triggers a dialog box as follow where users can set the corresponding channel configration. Parameters → IP Stream: SFT3316 supports TS to output in IP (16*MPTS) format through the DATA port. Clicking “IP Stream”, it will display the interface as Figure-14 where to set IP out parameters.
  • Page 20 SFT3316 16 in 1 IP QAM Modulator User Manual 18 Quickly Config Channel Config Figure-14 When users click “Quickly Config” button, it triggers a dialog box where users can set all channels MPTS configration simultaneously. When users click “Channel Config” button, it triggers a dialog box where users can set corresponding MPTS channel configration.
  • Page 21 SFT3316 16 in 1 IP QAM Modulator User Manual 19 System → Network: Clicking “Network”, it will display the interface as Figure-15 where to set network parameters. Figure-15 System → Password: Clicking “Password”, it will display the screen as Figure-16 where to set the login account and...
  • Page 22 SFT3316 16 in 1 IP QAM Modulator User Manual 20 Figure-16 System → Configuration: Clicking “Configuration”, it will display the screen as Figure-17 where to set your configurations for the device. Select areas Figure-17 System → Firmware: Clicking “Firmware”, it will display the screen as Figure-18 where to update firmware for the...
  • Page 23 SFT3316 16 in 1 IP QAM Modulator User Manual 21 Figure-18 System → Date/Time: Clicking “Date/Time”, it will display the interface as Figure-19 where users can set date/time for this device. Figure-19 System → Log: Clicking “Log”, it will display the screen as Figure-20 where to check the “Log”.

  • Page 24: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already...

  • Page 25: Chapter 6 Packing List

    SFT3316 16 in 1 IP QAM Modulator User Manual 23 SOFTEL. To prevent potential hazard, please strictly follow the operation conditions. Prevention Measure  Installing the device at the place in which environment temperature between 0 to 45 °C  Making sure good ventilation for the heat-sink on the rear panel and other heat-sink bores if necessary ...
