SFT2500C 32 in 1 IP to Analog Modulator
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFT2500C and is the answer not in the manual?

Questions and answers

Related Manuals for Softel SFT2500C

Summary of Contents for Softel SFT2500C

  • Page 1 SFT2500C 32 in 1 IP to Analog Modulator User Manual...
  • Page 2 Copy Warning This document includes some confidential information. Its usage is limited to the owners of the product that it is relevant to. It cannot be copied, modified, or translated in another language without prior written authorization from SOFTEL.

  • Page 3: Table Of Contents

    Directory Chapter 1 Product Overview.................... 1 1.1 Key Features.........................1 1.2 Specifications........................ 1 1.3 Appearance and Illustration..................2 Front panel Illustration..................... 2 Rear Panel Illustration:..................... 2 Chapter 2 Installation Guide.................... 4 2.1 Acquisition Check......................4 2.2 Installation Preparation....................4 3.1 Login..........................7 3.2 Operation........................

  • Page 4: Chapter 1 Product Overview

    SFT2500C 32 in 1 IP to Analog Modulator User Manual Chapter 1 Product Overview 1.1 Key Features  2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input  Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation ...

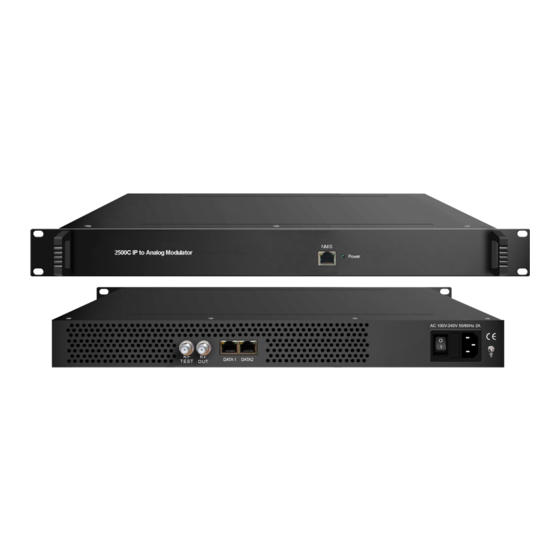

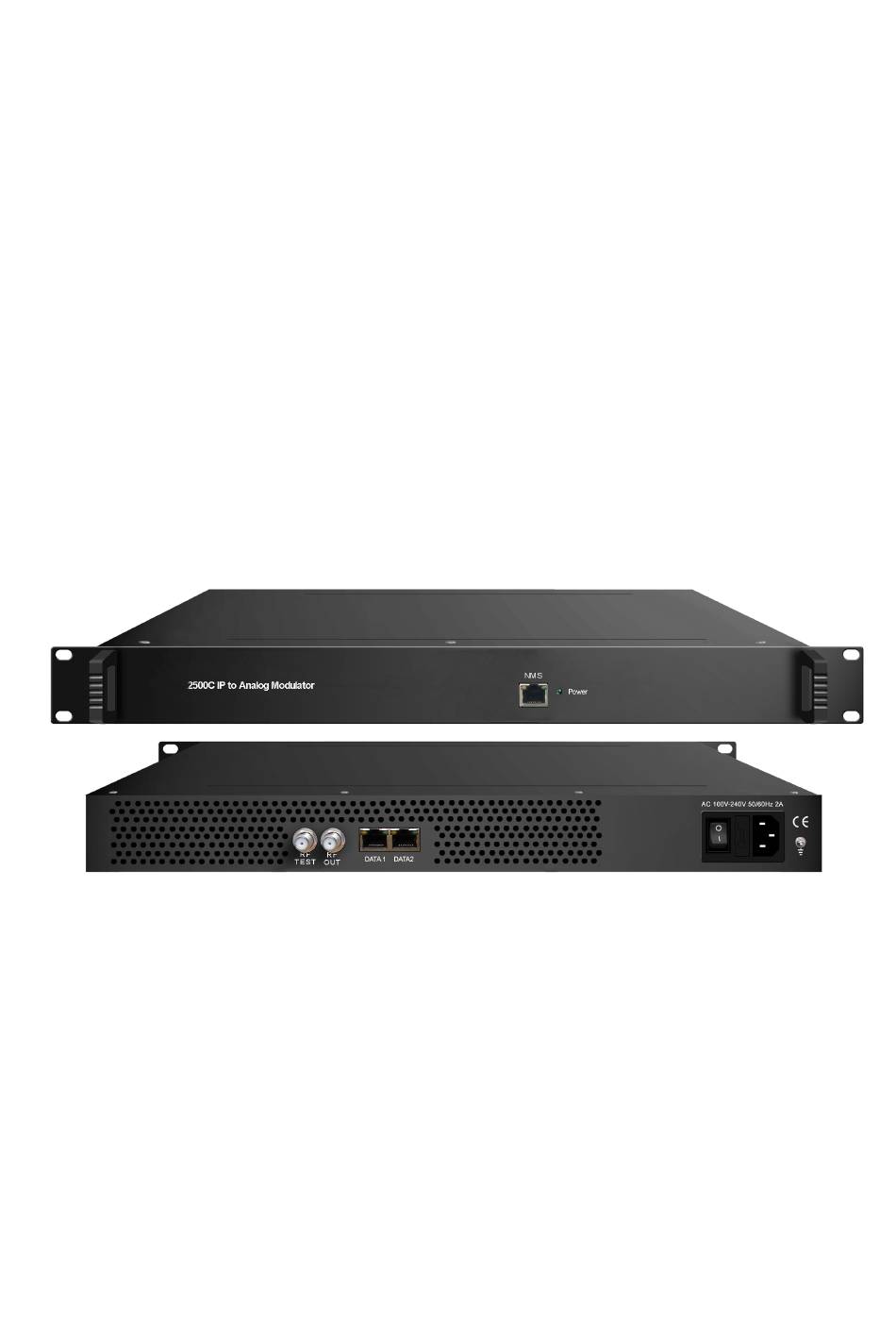

  • Page 5: Appearance And Illustration

    SFT2500C 32 in 1 IP to Analog Modulator User Manual Number of channels up to 32 Connectors 75Ω, F-jack Frequency range 47 – 862MHz, digital modulation process Output Bandwidth 400MHz Output level maximum 112dBμV Modulation Return loss ≥ 14dB Parameters Spurious frequency dist.
  • Page 6 SFT2500C 32 in 1 IP to Analog Modulator User Manual NMS: network management port Power Indicator Grounding AC Power Socket Power switch Data Input RF output port RF test port...

  • Page 7: Chapter 2 Installation Guide

    SFT2500C 32 in 1 IP to Analog Modulator User Manual Chapter 2 Installation Guide 2.1 Acquisition Check When user opens the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ...
  • Page 8 SFT2500C 32 in 1 IP to Analog Modulator User Manual When user installs machine frame array in one machine hall, the distance Machine Hall between 2 rows of machine frames should be 1.2~1.5m and the distance Space against wall should be no less than 0.8m.
  • Page 9 When the device adopts united way, the grounding resistance should be smaller than 1Ω.  Caution: Before connecting power cord to SFT2500C 32 in 1 IP to Analog Modulator , user should set the power switch to “OFF”.

  • Page 10: Login

    SFT2500C 32 in 1 IP to Analog Modulator User Manual Chapter 3 Web NMS Management This device does not support the LCD operation, and the modification can only be operated under Web NMS. 3.1 Login The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address.
  • Page 11 SFT2500C 32 in 1 IP to Analog Modulator User Manual Figure-2 3.2.2 Parameters Parameters → IP Input: Click “IP Input”, it displays the interface as Figure-3. Users can select the output TS channels. Click “+” to add IP input, and then select one channel to parse. It will display the interface where users can choose the programs to output.
  • Page 12 SFT2500C 32 in 1 IP to Analog Modulator User Manual To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output.
  • Page 13 SFT2500C 32 in 1 IP to Analog Modulator User Manual Figure-5 3.2.3 System System → Network: Click ‘Network’, it displays the interface as Figure-6 where to set network parameters. To modify IP input address Set data port IP address Figure-6 System →...
  • Page 14 SFT2500C 32 in 1 IP to Analog Modulator User Manual Figure-7 System → Configuration: Click “Configuration”, it displays the screen as Figure-8 where to set your configurations for the device. Select areas Figure-8 System → Firmware: Click “Firmware”, it displays the screen as Figure-9 where to update firmware for the device.
  • Page 15 SFT2500C 32 in 1 IP to Analog Modulator User Manual To select “Kernel log” and “System Log” Figure-10 System → Reboot: Click “Reboot”, it displays the screen as Figure-11 where to check the “Reboot”. Figure-11...

  • Page 16: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting SOFTEL’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All SOFTEL products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by SOFTEL.

  • Page 17: Chapter 5 Packing List

    SFT2500C 32 in 1 IP to Analog Modulator User Manual Chapter 5 Packing list  SFT2500C 32 in 1 IP to Analog Modulator 1 pc  Power Cord 1 pc  Grounding Cable 1 pc...
