KoolMore KM-MOTC-15SS User Manual

Over the range convection microwave oven
Hide thumbs Also See for KM-MOTC-15SS:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
KoolMore
Over the Range Convection
Microwave Oven
Model:
KM-MOTC-15SS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM-MOTC-15SS and is the answer not in the manual?

Questions and answers

Related Manuals for KoolMore KM-MOTC-15SS

Summary of Contents for KoolMore KM-MOTC-15SS

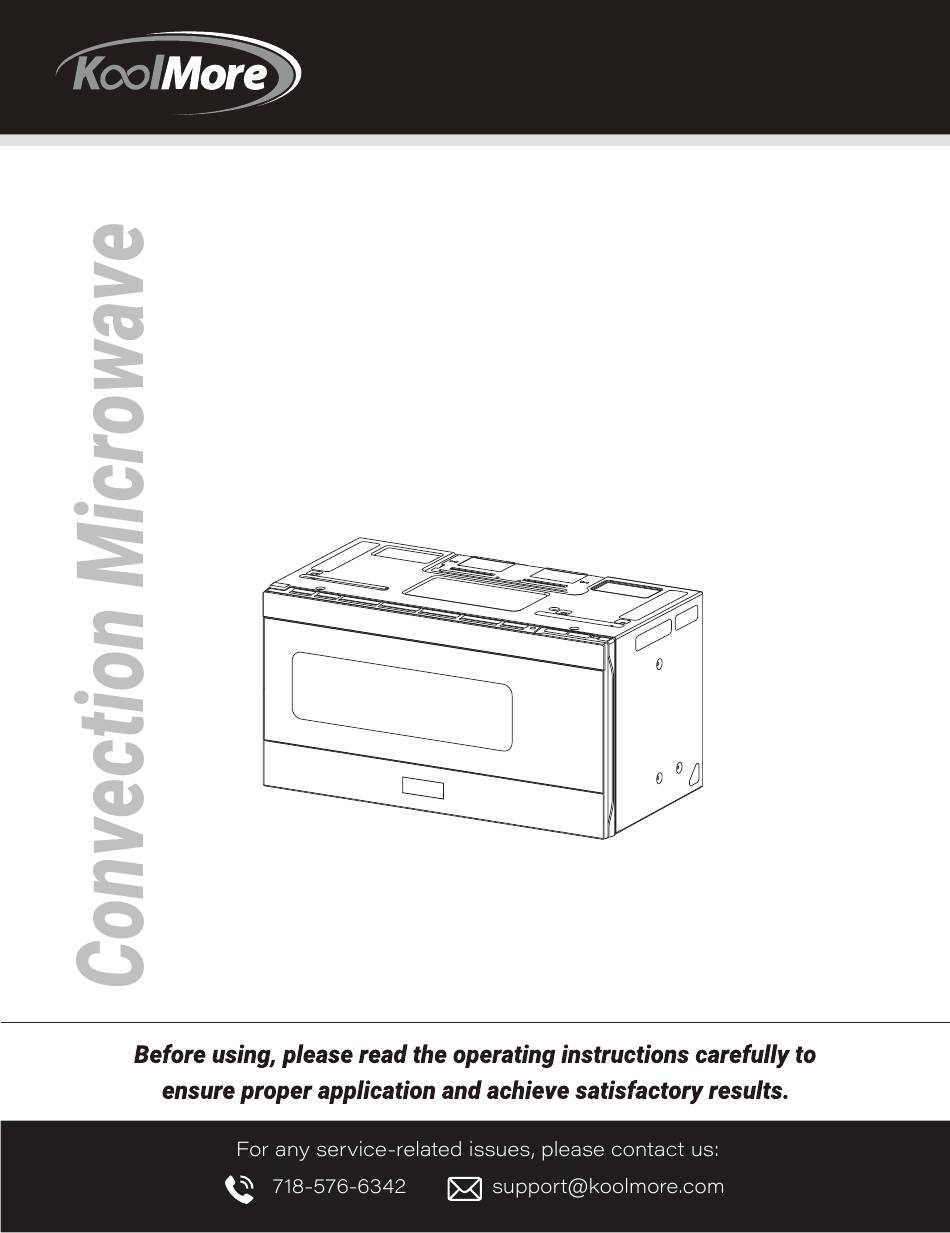

  • Page 1 USER MANUAL KoolMore Over the Range Convection Microwave Oven Model: KM-MOTC-15SS...
  • Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.

  • Page 3: Table Of Contents

    CONTENT Safety Setup Operation Maintenance Troubleshooting Warranty...

  • Page 4: Safety

    SAFETY When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2.

  • Page 5: Grounding Instructions

    THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1. Do not overheat the liquid. 2. Stir the liquid both before and halfway through heating it. 3.
  • Page 6 disassemble this appliance. WARNING - Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. 1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

  • Page 7: Radio Interference

    Radio Interference 1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2. When there is interference, it may be reduced or eliminated by taking the following measures: I. Clean door and sealing surface of the oven II.
  • Page 8 UTENSILS YOU CAN USE IN MICROWAVE OVEN Utensils Remarks Follow manufacturer's instructions. The bottom of browning dish Browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use Dinnerware cracked or chipped dishes.

  • Page 9: Setup

    SETUP Microwave features Front View Window Interlock system Door assembly Turntable ring assembly Turntable Shaft Turntable glass tray Control panel Ventilation openings (on top) Surface lights Ventilation filters Wire rack (use in convection and combination cooking on the removable turntable ) (use in microwave cooking) Shelf Bottom View...

  • Page 10: Turntable Installation

    TURNTABLE INSTALLATION Hub (underside) • Never place the glass tray upside down. The glass tray should never be restrict- • Both glass tray and turntable ring Glass tray assembly must always be used during cooking. • All food and containers of food are always placed on the glass tray for cooking.

  • Page 11: Operation

    OPERATION CONTROL PANEL 19 20 21 22 23 24 Microwave Combination Convection (19) Microwave indicator Convection indicator (20) (21) Lock indicator (22) indicator Vent Fan Of Low-Speed Vent Fan Of High-S peed (23) indicator stove Lamp indicator (24) Timer (25) indicator (26) Defrost...

  • Page 12: Manual Cooking

    MANUAL COOKING 1. Erase if you have entered wrong informa- tion. 2. Cancel timer. Setting the clock 3. Press pad once to pause the oven tempo- Example: setting clock display for 9:00: rarily during cooking. (Touch START/+30 sec pad again to resume cooking.) 1.

  • Page 13: Heating With High Power Level

    Heating with high power level preparation in the microwave, it is best to follow the microwave instructions that are Example: to heat for 5 minutes at 100% printed on food packaging. power: The table below provides suggested power 1. Press Microwave pad. levels for various types of food that you 2.

  • Page 14: Heating With Multiple Cooking Stages

    Heating with multiple cooking stages Size Small pieces of food cook faster than large ones. Pieces similar in size and shape will cook more For best results, some microwave recipes call for evenly when cooked together. For more even different power levels or different lengths of time results, reduce the power levels when cooking for cooking.

  • Page 15: Setting Defrost By Time

    Using Ready Set Use the numeric pads to input weight of food to defrost in pounds (10 = 1lb). You may enter any weight from 0.1 to 6.0lbs. Microwave heating or cooking may be quickly set at 100% power level for 1, 2 or 3 minutes. Use the Press START/+30sec.

  • Page 16: Defrosting Tips

    • The shape of the package will alter the defrosting time. Shallow rectangular food Defrosting tips packets defrost more quickly than a deep frozen block of food. • When using the defrost by weight feature, the • Separate pieces as they begin to defrost. weight entered should always be pounds Separated frozen pieces of food defrost (valid entries are from 0.1 to 6.0 pounds).

  • Page 17: Reheat Cooking Suggestions

    Reheat Reheat Category Press Display The reheat feature provides 3 quick preset settings based on serving size to reheat 8 ounces of food once 8.00 oz food for your cooking convenience. 16 ounces of food twice 16.00 oz 24 ounces of food 3 times 24.00 oz Example: to reheat 24 ounces of food.

  • Page 18: Combination Cooking

    CONVECTION Cooking 3. Press Convection to confirm the temperature. 4. Press the number keys to set cooking time. There are ten temperatures of convection; 100°F, 150°F, 5. Press the "Start/+30SEC. "pad to start the 250°F, 275°F, 300°F, 325°F, 350°F, 375°F, 400°F, 425°F. oven.
  • Page 19 POPCORN CAUTION DO NOT leave microwave oven unattended while popping corn. Amount Press popcorn pad 1.75 oz. (default once The popcorn feature lets you pop 3 different setting) uncommercially packaged microwave popcorn sized 3.00 oz. 2 times bags. Use the table below to determine the setting to 3.50 oz.

  • Page 20: Auto Cooking

    AUTO COOKING Convenience cooking suggestions Convenience Amount Suggestions category Popcorn 1.75, 3.0, 3.5 oz., 1 pkg. Cook a single “microwave-only” bag of popcorn at a time. Use caution when removing and opening the hot popcorn bag from the oven. Let microwave oven cool down at least 5 minutes before using again.

  • Page 21: Maintenance

    MAINTENANCE Disconnect the power cord before cleaning or leave the door open to deactivate the oven during cleaning. Cleaning the exhaust filters Surface light replacement The oven ventilation exhaust filters should be removed and cleaned often; generally at least once every month. CAUTION gloves when replacing the light bulbs.
  • Page 22 Oven light replacement Charcoal filter replacement (For some models) Remove the vent grill per instructions 1-4 above and charcoal filter, if used. Charcoal Filter installed in your microwave oven, is used for nonvented, recirculated installation. The filter should be changed every 6 to 12 months depending on use. 1.

  • Page 23: Cleaning Suggestions

    CLEANING SUGGESTIONS cloth to avoid scratching. • If steam accumulates inside or outside the oven door, wipe with a soft cloth. Steam can For best performance and for safety reasons, accumulate when operating the oven in high keep the oven interior and outside clean. Take humidity and in no way indicates microwave special care to keep the door window and oven leakage.
  • Page 24 Control Panel and Door Stainless Steel Do not use a steel-wool pad; it will scratch the Wipe with a damp cloth. Dry thoroughly. Do not use surface. cleaning sprays, large amounts of soap and water, To clean stainless steel surfaces, use a hot, damp abrasives or sharp objects on the panel—they can cloth with a mild detergent suitable for stainless damage it.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is not Oven will not a.

  • Page 26: Warranty

    At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replacement appliance will carry the warranty for the remaining term of the original unit's warranty period.
