Summary of Contents for KoolMore KM-MOTSC-16BSS

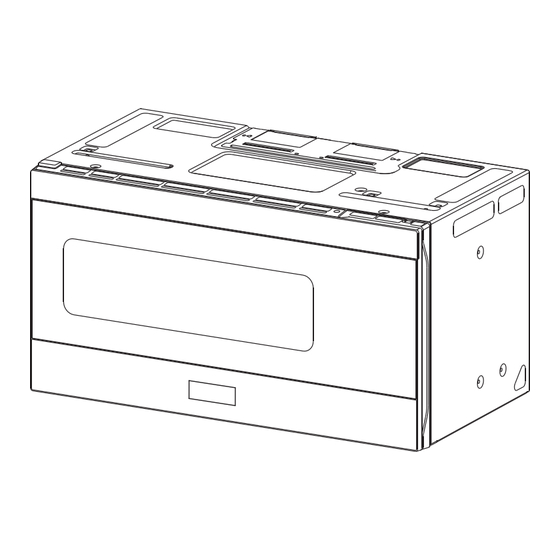

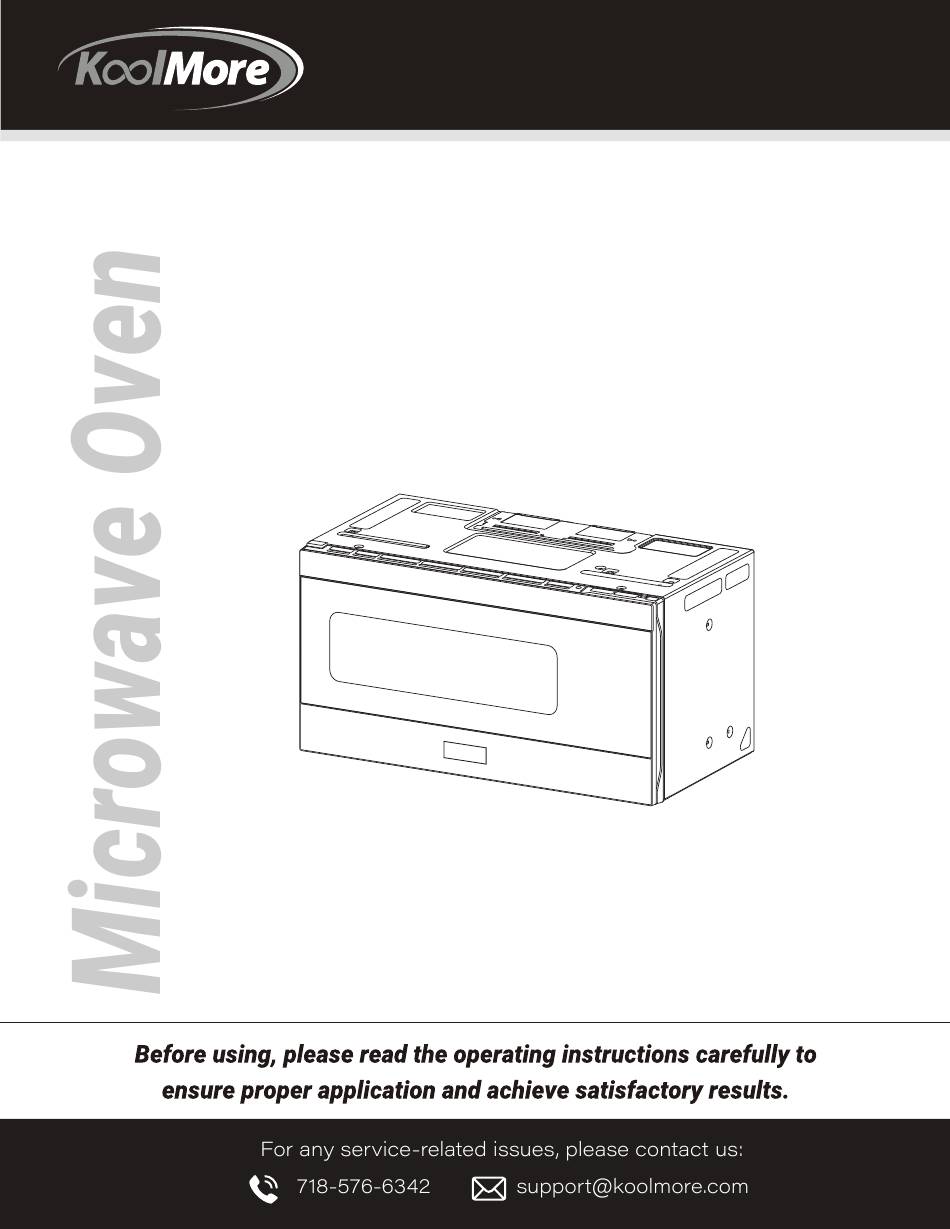

- Page 1 USER MANUAL KoolMore Stainless Steel Over the Range Microwave Oven With Sensor Cooking Model: KM-MOTSC-16BSS...
- Page 2 Stay informed with the latest information for your KoolMore Appliance. If you need any assistance or have questions, our customer support team is here to help.
- Page 3 SAFETY • SAFETY INFORMATION • • For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury, or loss of life. • • Precautions to avoid possible exposure to excessive microwave energy: •...
- Page 4 • Install or locate this appliance only in accordance with the provided installation instructions. • Some products such as whole eggs and sealed containers — for example, closed glass jars — are able to explode and should not be heated in this microwave oven. •...
- Page 5 SETUP SAVE THESE INSTRUCTIONS Unpacking and examining your microwave Open the bottom of the carton, bend the carton flaps back, and tilt the microwave oven over to rest on the plastic foam pad. Lift the carton off the microwave oven and remove all packing materials, including the User Guide, Installation Guide, templates (2), charcoal filter, and turntable (with ring).
- Page 6 The microwave oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG. DO NOT USE AN EXTENSION CORD. 3-prong plug Grounding plug 3-prong receptacle...
- Page 7 OPERATION MICROWAVE COOKING • Arrange food carefully. Place thickest areas towards outside of the dish. • Watch the cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite. •...
- Page 8 Materials you can use MATERIAL REMARKS Follow the manufacturer’s instructions. The bottom of the browning dish must be at Browning dish least 3/16-in. (5mm) above the turntable. Incorrect usage may cause the turntable to break. Use microwave-safe only. Follow the manufacturer's instructions. Do not use cracked or Dinnerware chipped dishes.
- Page 9 Vent openings Waveguide cover DO NOT REMOVE Safety interlock system Window Turntable Control panel BOTTOM Surface lights Grease lters Features • Sensor cooking • 10 variable power levels • Add 30 seconds and express cooking • 1000W of power • Exhaust fan with two speeds •...
- Page 10 Control panel ITEM DESCRIPTION Press to turn on/o the light underneath your microwave. See “Using the Light light” on page 1 SENSOR COOKING Detects the humidity released by your cooking food and adjusts the cooking time based on the type and amount of food cooking. Popcorn Press to cook popcorn.
- Page 11 Installing the turntable Notes Hub (underside) Glass turntable • Never place the glass tray upside down. The glass tray should never be restricted. • Always place all food and containers of food on the glass tray during cooking. • Both the glass tray and turntable ring must always be used for cooking. Turntable ring •...
- Page 12 Wrapping in paper towels or waxed paper Sandwiches and many other food types containing pre baked bread should be wrapped prior to placing in the microwave to help prevent the food items from drying out while heating. Cooking in your microwave 1.
- Page 13 Cooking with multiple cooking stages For best results, some microwave recipes call for different power levels or different lengths of time for cooking. Your microwave may be set to change from one stage to another automatically (two stages maximum). 1. Press Time Cook, then use the number pad to enter the cooking time that you want for the first stage.
- Page 14 Defrosting in your microwave 1. Press Defrost repeatedly to select "MEAT," "POULTRY," or "FISH." 2. Press START. 3. Use the number pad to enter the weight of the item to be defrosted (in pounds). For example, 10 = 1.0 lbs. Note: You may enter any weight from 0.1 to 6.0 lbs.
- Page 15 Note If additional time is needed, continue to cook manually. Pizza The pizza setting cooks from one to two slices (6-8 oz.) of pizza automatically. Press Pizza, then press START. Potato The potato setting cooks from two to four potatoes automatically. Poke holes in your potatoes skin 5-6 times with a fork.
- Page 16 DO NOT leave the microwave unattended while popping popcorn. Popcorn 1. Press Popcorn repeatedly to select your popcorn bag's weight: WEIGHT | PRESS POPCORN BUTTON... 3.5 oz. | Once 3.0 oz. | 2 times 1.75 oz. | 3 times 2. Press START. Beverage The beverage setting heats one to three cups of a beverage.
- Page 17 Using the turntable For best results, leave the turntable on. However, you can turn it off for large dishes. • Press the Turntable on/off to turn your turntable on or off. Using the child lock • To lock the microwave, press and hold STOP/CLEAR for three seconds. The microwave beeps and a lock indicator appears on the display.
- Page 18 MAINTENANCE Cleaning the outside of your microwave Exterior The outside surfaces are pre-coated steel and plastic. Clean the outside with mild soap and water, then rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner. Door Wipe the window on both sides with a damp cloth to remove any spills or spatters.
- Page 19 • Remove the turntable and turntable support to wash them in mild, sudsy water. For stubborn stains, use a mild abrasive cleaner or scouring pads. Rinse and turn to wash them then let them air dry before using. • Do not use the turntable if the turntable support roller ring is damaged. Do not wash the turntable support roller ring in the dishwasher.
- Page 20 4 Remove the charcoal filter by pushing it inwards, then lift up and pull it out of the microwave. 5 Insert the new charcoal filter, close the vent grill, and secure with the vent grill screws. 6 Plug the microwave back in or turn the power back on at the main circuit breaker. Replacing the lights Surface light (external) 1 Unplug the microwave oven or turn off power at the main circuit breaker.
- Page 21 4 Remove the charcoal filter by pushing it inwards, then lift up and pull it out of the microwave. 5 Push the tab to release the light cover and carefully pull it up from the front edge. 6 Remove the LED module and replace only with an equivalent 1.2 watt LED bulb. 7 Carefully push the light cover back into place.
- Page 22 TROUBLESHOOTING If you have a problem with your microwave, review the following chart for a possible solution. If the microwave still does not work properly, contact the nearest authorized service center. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The electrical cord is not plugged in. Plug in the electrical cord.
- Page 23 Obtaining replacement parts Speci cations Model Rated voltage 120V / 60 Hz Rated input power 1550W Rated output power 1000W Microwave capacity 1.6 cu. ft. Turntable diameter 13.5 in. (34.5 cm) External dimensions (WxHxD) 31.3 × 16.4 × 15.0 in. (79.5 × 41.7 × 38.2 cm) Internal dimensions (WxHxD) 20.24 ×...
- Page 24 At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replacement appliance will carry the warranty for the remaining term of the original unit's warranty period.
