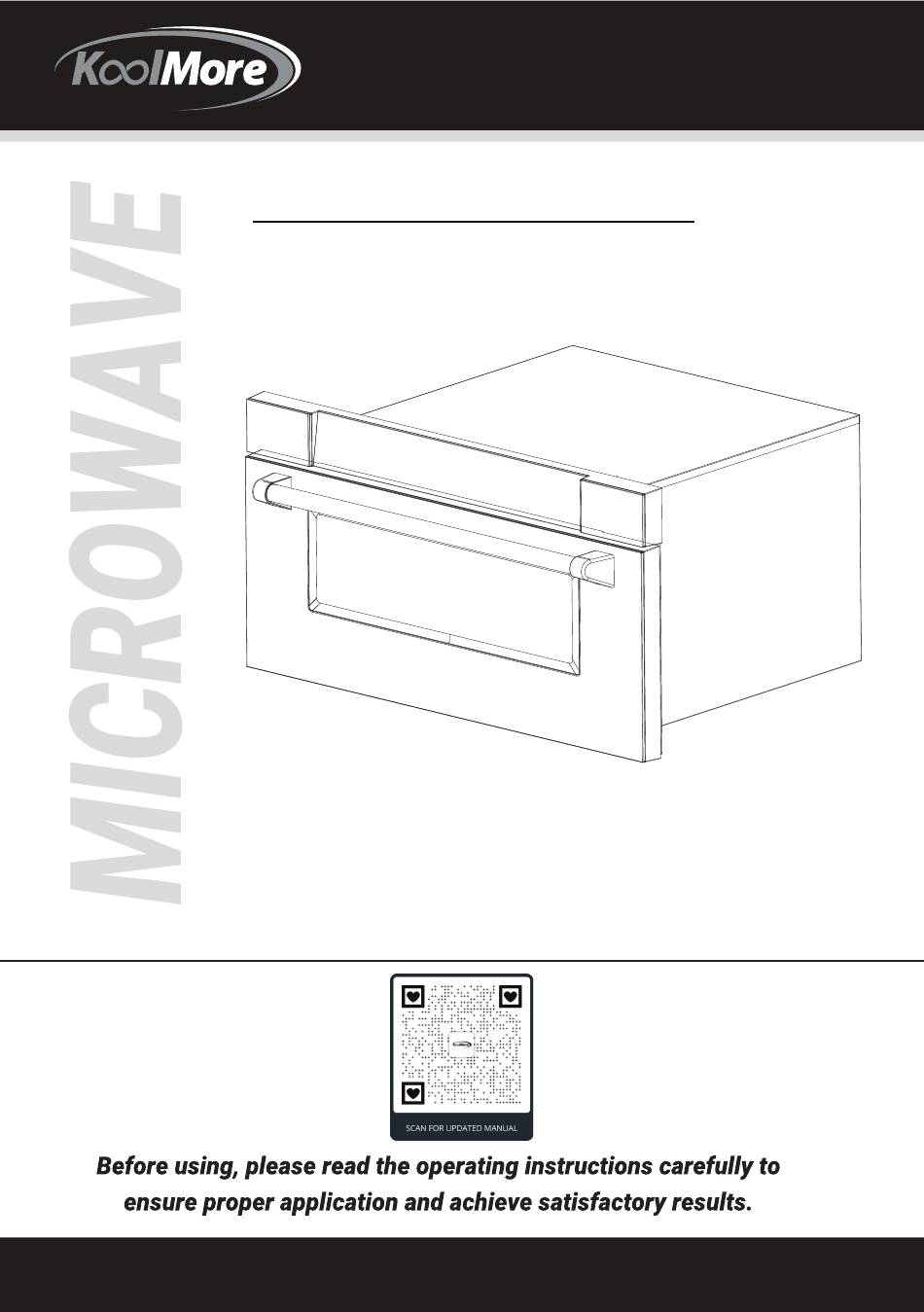

- Page 1 INSTALLATION MANUAL 30 Inch Microwave Drawer Model: KM-MD30-SS For any service-related Issues, please contact us: Phone Number: 718-576-6342 Email address: support@koolmore.com...
-
Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including following: To reduce the risk of burns, electric shock, fire, injury to persons or exposure WARNING - to excessive microwave energy: 1. Read all instructions before using the appliance. 2. -
Page 4: Grounding Instructions
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1) Do not overheat the liquid. 2) Stir the liquid both before and halfway through heating it. 3) Do not use straight-sided containers with narrow necks. -
Page 5: Radio Interference
1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. Longer cord sets or extension cords are available and may be used if care is exercised in their use. -
Page 6: Materials You Can Use In Microwave Oven
UTENSILS CAUTION - Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. - Page 7 Materials you can use in microwave oven Utensils Remarks Plastic Microwave-safe only. Follow the manufacturer* instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
-
Page 8: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: A) Control atch B) Control Box C) Right Mounting Plate D) Cavity E) Handle F) Windows G) Door Frame... -
Page 9: Clearances And Dimensions
CLEARANCES AND DIMENSIONS · Dimensions that are shown in Figure 1 must be used. Given dimensions provide minimum clearance. Locate electrical outlet in the shaded area in the upper left -hand corner of the cutout. See Figure 3 · Contact surface must be solid and level. Pay special attention to the floor on which the Microwave Drawer will sit. - Page 10 Figure 2 Figures 1 and 2 contain many Microwave Drawer measurements for reference when planning the drawer's location .This Microwave Drawer can be installed below any electric or gas wall oven. *Can also be installed using an electrical outlet in an adjacent cabinet within the area where tire provided electrical cord can reach.
-
Page 11: Anti-Tip Block
ANTI-TIP BLOCK ELECTRICAL OUTLET S u g g e s t e d e l e c t r ic a l o u t l e t l o c a t io n A n t i T ip b l o c k 4 ' ' Figure 4... -
Page 12: Drawer Installation
DRAWER INSTALLATION Figure 5 1. Place the drawer adjacent to the wall or cabinet opening.Plug the power supply cord into the electrical outlet. 2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and the wall. 3. -
Page 13: Operation
OPERATION Control Panel and Features (1) (2) (10) (11) (12) 1 ) Open Defrost Time 2 ) Setup 8 ) Number Keys 3 ) Auto Menu 9 ) Time Cook 4 ) Defrost Weight 10 ) Start/+30sec. 5 ) Close 11 ) Power Level 6 ) Timer/Clock 12 ) Stop/Cancel... -
Page 14: Clock Setting
OPERATION 1. Clock Setting (1) Press "TIMER/CLOCK" button twice. “12:00” will flash. (2) Press number keys to set the clock,it should be within 1:00~12:59. (3) Press "START+30SEC." or "TIMER/CLOCK" to finish the setting. Note: In the process of clock setting, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to former setting automatically. -
Page 15: Weight Defrost Function
4. Add 30Sec (1) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can be started by pressing "START/+30SEC". Each press on the same button will increase cooking time by 30 seconds. (2) During microwave and defrost by time, "START/+30SEC." can be pressed to increase cooking time. - Page 16 8. Sensor Reheat (1) In waiting state, press "Sensor Reheat" once,"Sr-1" will display. (2) Press "Sensor Reheat" repeatedly or press "1-4" to choose the menu. (3) Press "START+30SEC." to start cooking. PASTA Sr-1 PIZZA Sr-2 PLATE Sr-3 SOUP Sr-4 9. Sensor Cook (1) In waiting state, press "Sensor Cook"...
- Page 17 11.MELT (1) In waiting state, press "MELT" once,"1 buTT" will display. (2) Press "MELT" repeatedly to choose the menu. (3) Press "1"or "2" to choose the correspond weight. (4) Press "START+30SEC." to start cooking. Menu Weight Display Choc Choc CHEE CHEE 12.
-
Page 18: Buzzer On/Off
13.Multiple Cook (1) In waiting state, press "DEFROST WEIGHT" once,"0.0 lbs" will display. (2) Press numeber buttons to input the weight to be defrosted. The input weight should be between 0.1-6.0 lbs. (3) Press "TIME COOK" button once. “00:00” will display. (4) Press number keys to set the cook time,it should be within 00:01-99:99. -
Page 19: Eco Mode
16. ECO MODE To enter eco mode when the oven door is closed,in waiting state, if there is not any operations in 1 minute. To cancel eco mode In eco mode, open the door or press any key to cancel it. 17. -
Page 20: Maintenance
MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is a. -
Page 21: Limited Warranty
At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replace- ment appliance will carry the warranty for the remaining term of the original unit's warranty period.
