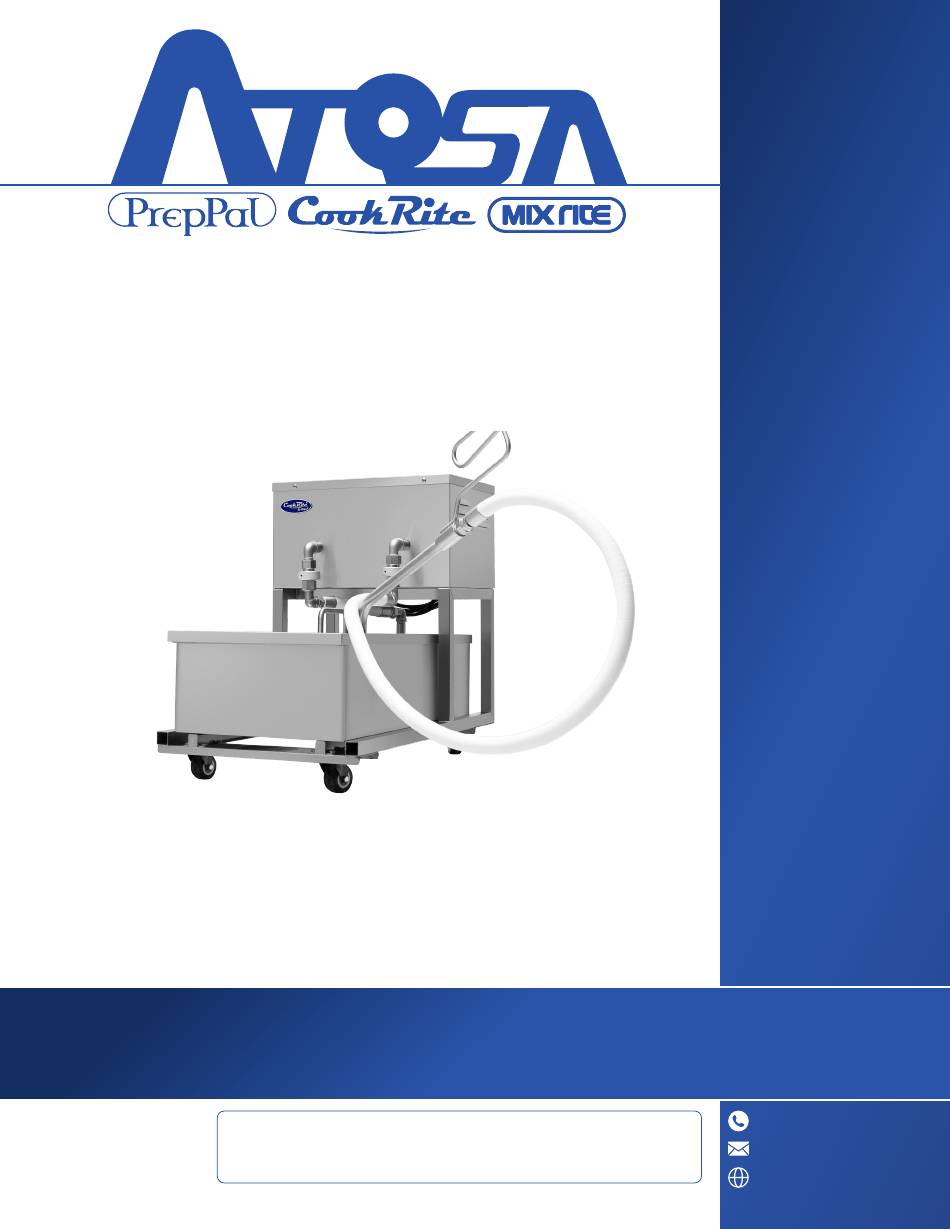

- Page 1 FRYER PORTABLE OIL FILTRATION OPERATOR’S MANUAL Toll Free: (855) 855-0399 FPOF-50 / FPOF-80 info@atosausa.com www.atosausa.com...
-
Page 2: Table Of Contents
FPOF Table of Contents Safety Precautions ..............3 Product Overview ............... 4 Manufacture’s Authority and Responsibility ........ 4 Parameter Specifications ............5 Transportation and Storage ............6 Unpacking and Installation ............6 Safety Notices and Precautions ..........8 Operating Instructions .............. 10 Cleaning and Maintenance ............ -
Page 3: Safety Precautions
FPOF 1. Safety Precautions Please ensure that the operator has read and understood this manual before you allow them to install and operate the product. It is important to strictly follow the instructions in this manual during installation and use. The manufacturer is not responsible for any accidents resulting from improper operation or maintenance of the product. -
Page 4: Product Overview
FPOF 2. Product Overview The product has features an oil pump that circulates dirty fryer oil through filter paper to remove debris. This process extends the life of the fryer oil and enhances the taste of the food. The product is easy to use, making the oil filtering process quick and efficient. -
Page 5: Parameter Specifications
FPOF 4. Parameter Specifications Specifications Models Capacity Casters Amps Voltage Gallons Exterior Packing Gross (lb) (inch) (V/Hz/Ph) Per Min Dimensions Dimensions Weight Weight (inch) (inch) (lb) (lb) FPOF-50 115/650/1 1450 3.43 161/4×291/2×24 187/8×317/8×293/4 FPOF-80 115/650/1 1450 3.43 201/4×331/2×24 227/8×357/8×293/4... -
Page 6: Transportation And Storage
• Do not remove any label or logo before using the product. • Carefully read these instructions carefully before installation and operation. If you have questions, please contact Atosa for assistance. • Any incorrect installation, adjustment, refitting, overhaul, or maintenance may result in property damage or personal injury. -
Page 7: Installation Steps
FPOF Installation Steps 1. Align the center hole of the filter support rack (#18) with the rectangular metal piece on the bottom of the unit. 2. When inserting the filter paper, ensure it covers the oil inlet at the back. 3. -
Page 8: Safety Notices And Precautions
FPOF 7. Safety Notices and Precautions • Warning! - For your safety, do not place gasoline or other flammables nearby. Keep the area clean and free from flammable surroundings. (Refer to ANSI Z83.14B, 1991 for reference.) • Warning! – Incorrect installation, adjustment, and modifications may result in property damage, personal injury, or equipment failure. - Page 9 FPOF • WARNING! - In the event of power failure during the filtering process, make sure to turn the pump switch to the “OFF” position. Failure to turn may result in uncontrolled oil flow when the power is restored. • Do not attempt to lift the filter machine off the floor for cleaning, as bodily injury may occur.
-
Page 10: Operating Instructions
FPOF 8. Operating Instructions • When filtering the oil, it is recommended that the oil be approximately 250°F (121°C). If the oil temperature is too high, it can damage the seals in the pump. Conversely, if the oil temperature is too low, the oil can become thick and sticky, putting excessive strain on the pump. - Page 11 • Add the filter aid on top of the paper: Model FPOF-50: 12 oz. Model FPOF-80: 16 oz. • Securely connect the filter pan hose to the inlet fitting on the filter.
- Page 12 FPOF • If you plan to filter another fryer at this time, scrape up the debris from the filter paper. Add another 6 oz. of the filter aid for the next fryer. (If you filter additional fryers during this session, add another 6 oz. each time you begin filtering a new fryer) For each fryer, repeat steps 10, 11, and 12.
-
Page 13: Cleaning And Maintenance
FPOF 9. Cleaning and Maintenance • WARNING! - Allow the filter assembly to cool to room temperature before handling any filter parts for easier and safer maintenance. • WARNING! - The appliance is NOT approved for use with a water jet stream. DO NOT clean the appliance using a water jet or steam cleaner. -
Page 14: Maintenance Steps
FPOF Maintenance Steps Allow the oil to cool down to 225℉. If the oil exceeds 225℉, it may damage to the machine. Lock the wheels on the back of the filter machine. Once the oil and fryer are cooled sufficiently, screw the downspouts into the drain valve, ensuring the spouts are facing the filter catch basket on the filter machine. -
Page 15: Troubleshooting
FPOF 10. Troubleshooting Pump does not run. • Make sure power switch is in the “ON” position. • Ensure the power cord is properly plugged into the wall socket and filter machine. • Press the RED motor overheat reset • button located on the back of the filter motor. - Page 16 FPOF 400 393 5 40 03 93 5 CONFORMS TO UL STD.1889 CONFORMS TO NSF/ANSI STD. 4 CERTIFIED TO CSA STD. C22.2 No.109 R10001001177 Version Number 20250303...
- Page 17 THANK YOU FOR YOUR PURCHASE OF AN ATOSA PRODUCT YOUR SINGLE SOURCE DIVERSIFIED GLOBAL SOLUTION We Make the First Call the Right Call! Toll Free: 1 (800) 683-8660 For Warranty Information: Warranty@AtosaUSA.com For Parts Information: Parts@AtosaUSA.com...
- Page 18 Toll Free: (855) 855-0399 info@atosausa.com www.atosausa.com...
