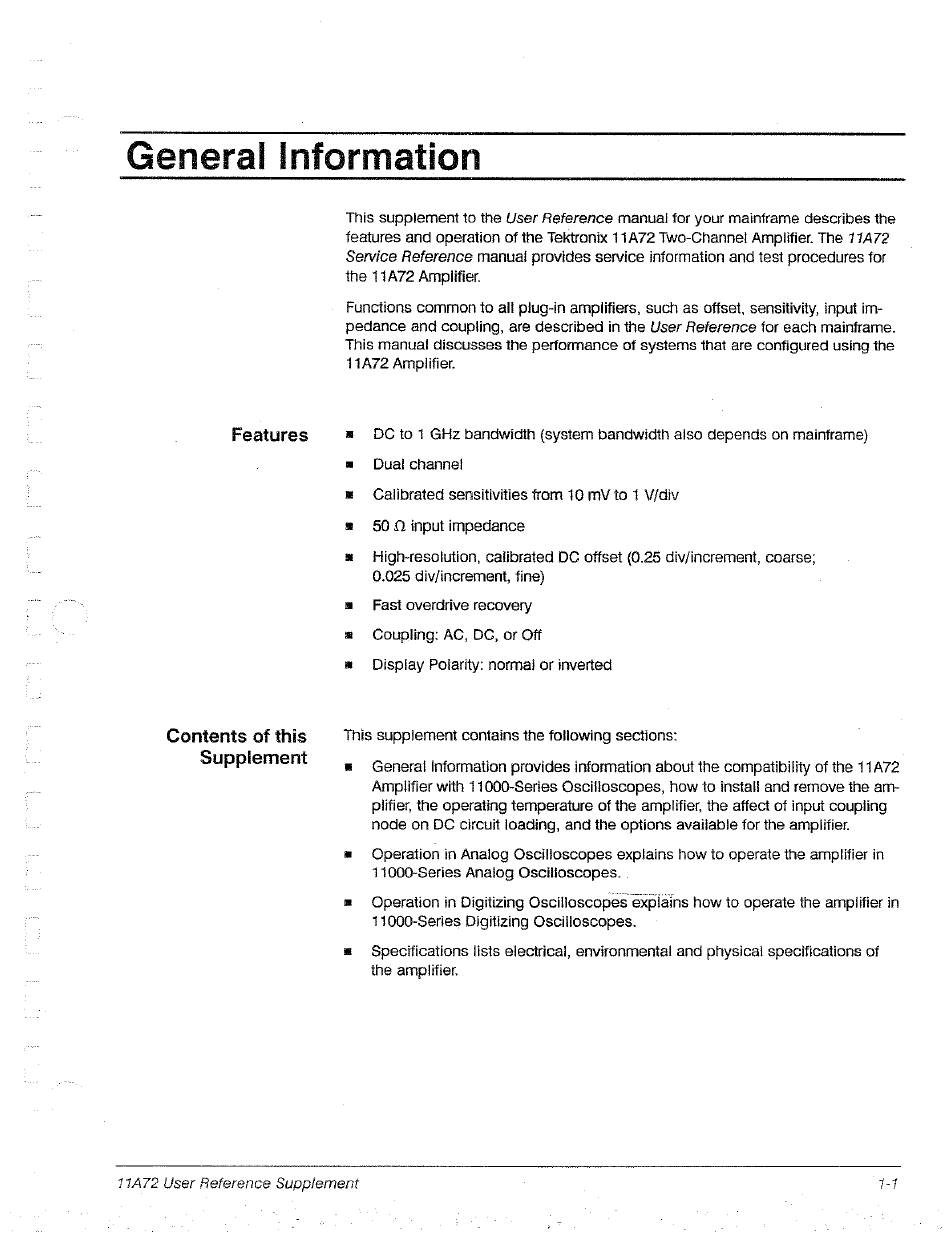

General Information
This supplement to the User Reference manual for your mainframe describes the
features and operation of the Tektronix 11A72 Two-Channel Amplifier. The 11A72
Service Reference manual provides service information and test procedures for
the 11A72 Amplifier.
Functions common to all plug-in amplifiers, such as offset, sensitivity, input im-
pedance and coupling, are described in the User Reference for each mainframe.
This manual discusses the performance of systems that are configured using the
11A72 Amplifier.
Features DC to 1 GHz bandwidih (system bandwidth also depends on mainframe)
m Calibrated sensitivities from 10 mV to 1 V/div
= §0 0 input impedance
a High-resolution, calibrated DC offset (0.25 div/increment, coarse;
0.025 div/increment, fine)
= Coupling: AC, DC, or Off
m Display Polarity: normal or inverted
Contents of this This supplement contains the following sections:
Supplement = General information provides information about the compatibility of the 11A72
Amplifier with 11000-Series Oscilloscopes, how to install and remove the am-
plifier, the operating temperature of the amplifier, the affect of input coupling
node on DC circuit loading, and the options available for the ampiifier.
= Operation in Analog Oscilloscopes explains how to operate the amplifier in
11000-Series Analog Oscilloscopes. .
2 Operation in Digitizing Oscilloscopes explains how to operate the amplifier in
11000-Series Digitizing Oscilloscopes.
# Specifications lists electrical, environmental and physical specifications of
the amplifier.
11A72 User Reference Supplement TT
