WHISPER
LOW PROFILE DC
Installation Manual
VER 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHISPER C5000/101B and is the answer not in the manual?

Questions and answers

Summary of Contents for Claro WHISPER C5000/101B

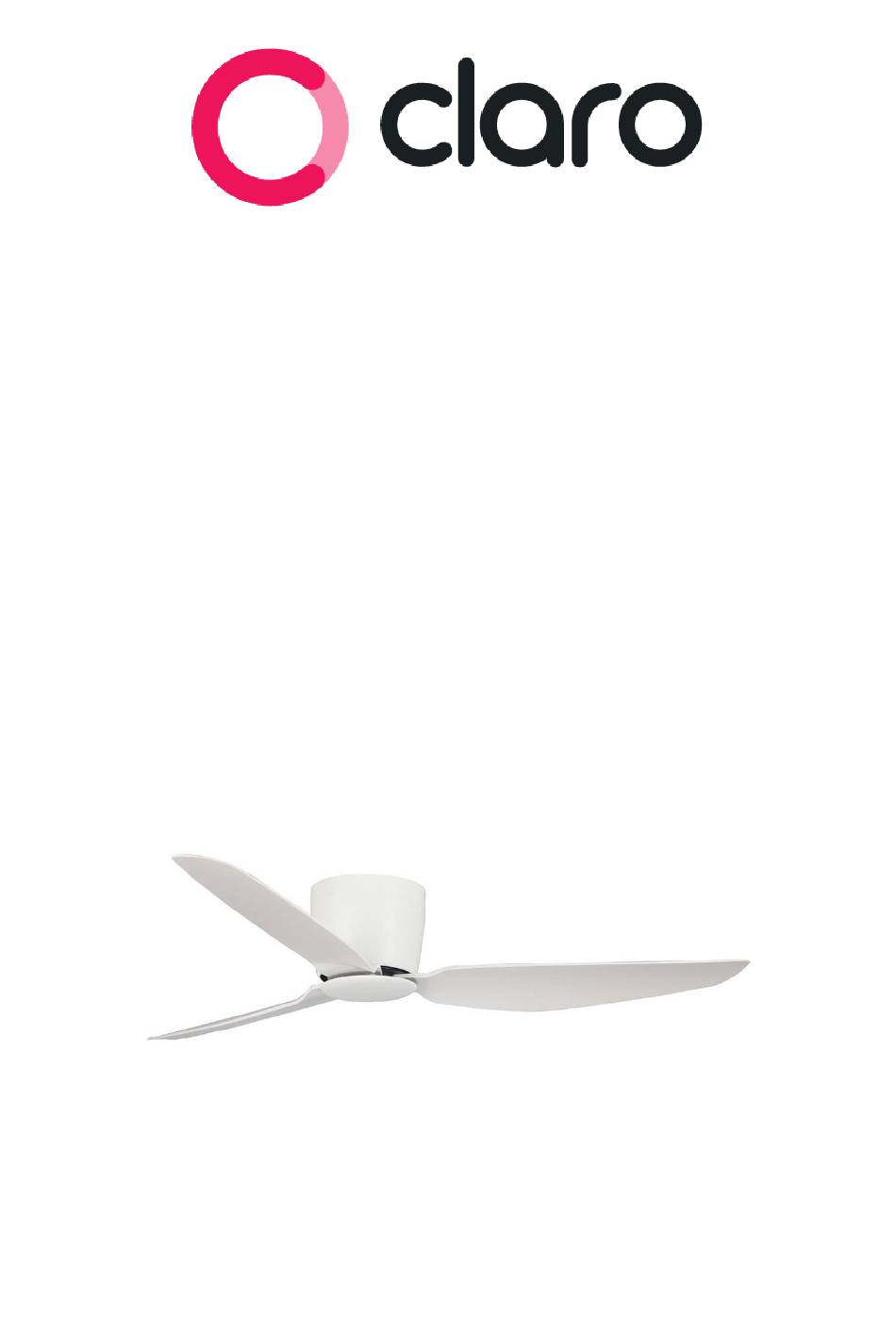

  • Page 1 WHISPER LOW PROFILE DC Installation Manual VER 2.0...
  • Page 2: Important Safeguards

    CEILING FAN INSTRUCTION BOOKLET Thank you for purchasing your Claro Whisper Low Profile DC Ceiling Fan. Please read all instructions carefully before assembly and use. IMPORTANT SAFEGUARDS: Read all instructions carefully, even if you feel you are quite familiar with this type of appliance. When...
  • Page 3 21. The LED light panel in the light kit (light models) is user replaceable as it connects with 'Push Plug' wiring. It is user replaceable ONLY with Claro certified replacement LED panels. Using unauthorised parts may damage the fan, cause undesired results, or be a safety hazard.
  • Page 4: Important Note

    IMPORTANT NOTE: The important safeguards and instructions given in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which cannot be built into any product. FAULT FINDER: Always check the “Trouble Shooting Checklist”...
  • Page 5: Installation And Assembly

    INSTALLATION AND ASSEMBLY: CAUTION! Before installing the fan make sure you have turned OFF the electricity supply. SELECTING A LOCATION: 1. Choose a location for mounting the fan where the blades will have at least 2.1 metres of clearance from the floor. 2.
  • Page 8: Electrical Connections

    ELECTRICAL CONNECTIONS: Ensure the power is OFF when installing this fan. INSTALLATION STEPS: 1. Feed the main cable through the large hole on the ceiling plate and screw the ceiling plate to the ceiling joists or to the suitable structure. CAUTION: Structure may be able to carry a load of at least 45kg.
  • Page 9 4. Install the motor cover over motor body. a. Align the groove on the motor cover with the bayonet on the mounting bracket. b. Rotate it clockwise to make sure it clicks into place. 5. Remove the 6 screws that are attached to the motor. 6.
  • Page 10 MODELS WITHOUT LIGHT 1. Align bottom plate with bottom of fan 2. Twist bottom plate clockwise onto motor shaft until it is secured. IMPORTANT: DO NOT overturn. MODELS WITH LIGHT 1. Take off 3 screws on the light kit fixing plate. 2.
  • Page 11: Replacing The Led Panel

    REPLACING THE LED PANEL CAUTION! Ensure the power is OFF when replacing the LED Panel by disconnecting the fans power supply by removing fuses or turning off the circuit breaker. THIS IS IMPORTANT TO ENSURE SAFETY AND TO AVOID RISK OF ELECTROCUTION. For any uncertainties in turning the power off, please consult an electrician or your power service provider.
  • Page 12: Care And Cleaning

    CARE & CLEANING: • Periodic cleaning (approximately every 6 months) of your ceiling fan is the only maintenance required. • Use a soft brush or lint free cloth to avoid scratching the finish. Please turn off electricity when you do so. •...
  • Page 13: Pairing The Remote

    PAIRING THE REMOTE: All Whisper low profile fans are pre-paired and there is no pairing process needed to start the fan. If you want to reset the fan to factory setting. Please follow steps below. 1. Using the wall (isolation) switch, turn the fan power OFF for 10 seconds. 2.
  • Page 14: Functions Of The Remote Control

    FUNCTIONS OF THE REMOTE CONTROL...
  • Page 15: Troubleshooting

    TROUBLESHOOTING: Issue Possible Cause Suggested Remedy Fan does not start Loose wire connections or Check wire connections and ensure plugs plugs to fan/receiver are positively connected No power goes into the fan Check RCD/Switch board and wiring on premises The remote control is Replace the remote-control battery if unresponsive (no light flashes necessary.

This manual is also suitable for:

Whisper c5001/101bWhisper c5020/101bWhisper c5021/101b
