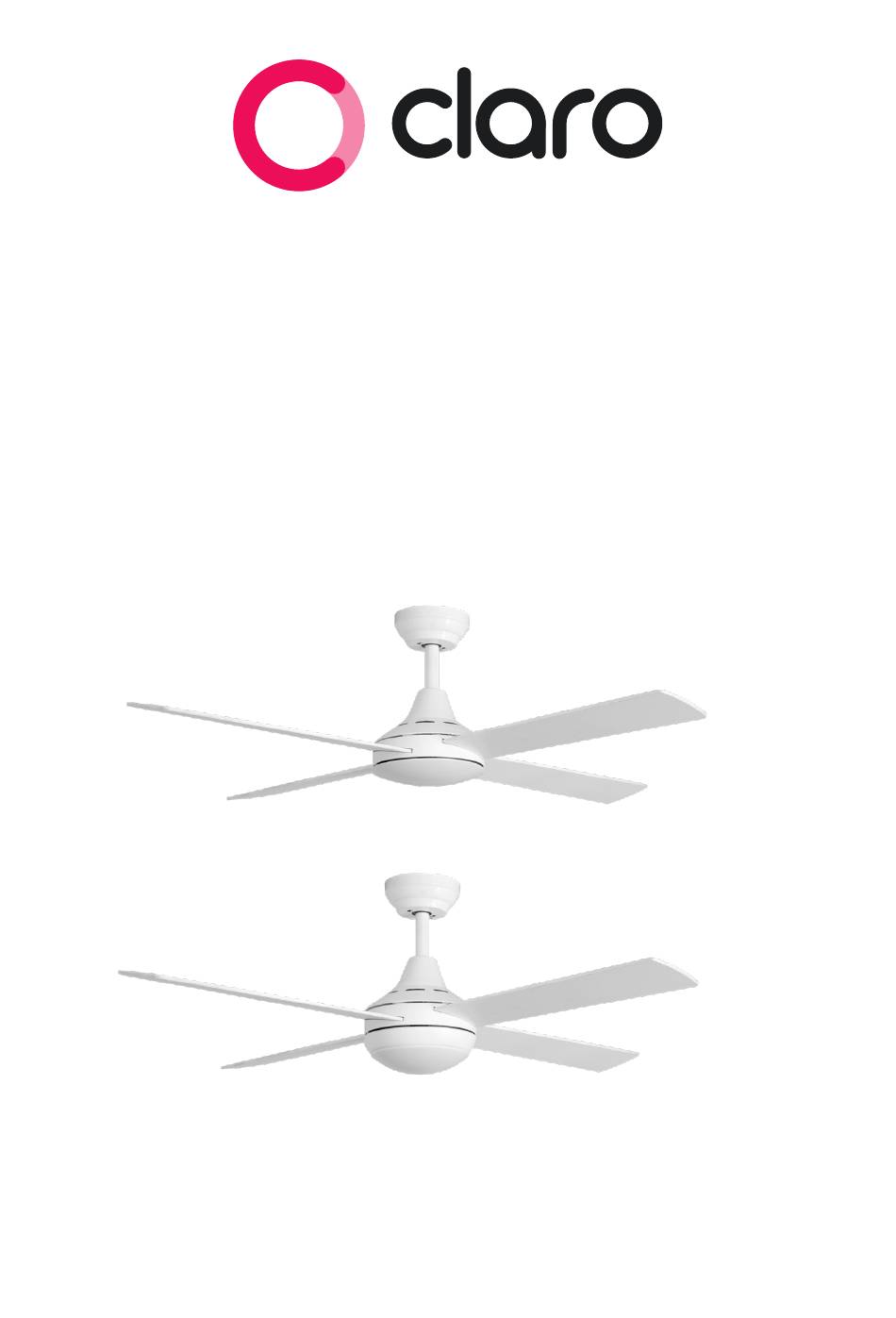

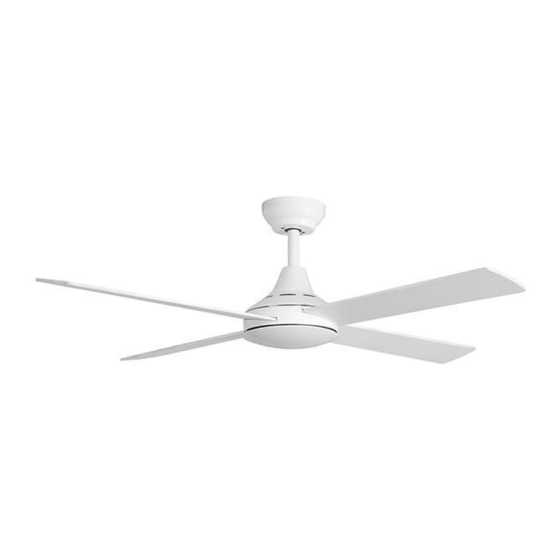

- Page 1 SUMMER DC Installation Manual VER 0.1...
-
Page 2: Important Safeguards
Ceiling fan instruction booklet Thank you for purchasing your Claro Summer DC Ceiling Fan. Please read all instructions carefully before assembly and use. IMPORTANT SAFEGUARDS Read all instructions carefully, even if you feel you are quite familiar with this type of appliance. When... -
Page 3: Important Note
manufacturer, its service agent or suitably qualified persons. 20. If it is necessary to replace the live or neutral brushes to ensure operation of the motor then both brushes and the earth brush shall be replaced at the same time. The brushes shall only be replaced by a suitably qualified person. -
Page 4: Parts Included
PREPARATION: 1. Unpack your ceiling fan carefully, then remove all parts and components, and lay on a cloth or soft surface to avoid damage. DO NOT lay the motor housing on its side, the housing may get damaged. 2. Before commencing installation, check that all parts are included. NB: You may need to remove all foam packaging material to ensure there are no missing parts. -
Page 5: Installation And Assembly
INSTALLATION AND ASSEMBLY CAUTION: Before installing the fan make sure you have turned OFF the electricity supply. SELECTING A LOCATION: SELECTING A LOCATION: 1. Choose a location for mounting the fan where the blades will have at least 2.1 metres of clearance from the floor. -
Page 6: Wiring Diagram
WIRING DIAGRAM NO LIGHT To Motor Wire To Motor Wire To Motor Wire Double pole disconnection switch or 2 pin plug Black Wire Antenna Wire Wall Switch RECEIVER Ground Wire Yellow /Green Power Supply-Live Wire Brown Power Supply-Neutral Wire Blue LED LIGHT To Motor Wire To Motor Wire... -
Page 7: Installation Steps
INSTALLATION STEPS 1. Remove the two screws from the covering plate on top of the motor housing, then remove the covering plate. 2. Taking one blade at a time, remove the three screws, insert the blade into the slots through the motor and align the blade with the three holes. - Page 8 3. Feed the main motor wire plug up through the inside of the downrod, then insert the downrod into the motor bush. Gently push the cross-pin through the holes aligned with the base of the motor bush and downrod. CAUTION: DO NOT force the cross-pin, gently wiggle and rotate it until it glides through both holes.
- Page 9 5. Put the canopy through the down rod. 6. Place the hanging ball on top of the down rod and secure it with the ball pin and two screws. CAUTION: secure one screw through holes on the hanging ball and the downrod. 7.
- Page 10 8. Place the receiver on top of the hanger ball and connect the wires. 9. Connect power, receiver and the fan as electrical wiring diagram. IMPORTANT: The fan must be earthed! Double pole disconnection switch and wall switch must be connected. 10.
-
Page 11: Reverse Function
REVERSE FUNCTION The “Summer/Winter” reverse function is included in the remote control to make the fan rotate in an anti-clockwise direction during summer. In winter, this can be reversed, so that the blades now move in a clockwise direction. Press and hold “F/R” button for 3 seconds to switch between “Summer” and “Winter modes CARE &... -
Page 12: Functions Of The Remote Control
a. Please check the battery to ensure it has sufficient power and has been inserted correctly and aligns with the positive and negative terminals; or b. Please check if there are any other similarly remote controlled objects that work nearby, as remote controlled items operating on the same frequency may disturb each other. - Page 13 Trouble Possible Cause Suggested Remedy Fans does not start after A) Remote and receiver are A) Re-pair the receiver and pairing process not paired successfully remote B) Battery flat in remote B) Replace the battery in control remote control C) Loose wire connections or C) Check wire connections plugs to fan/receiver and ensure plugs are...
