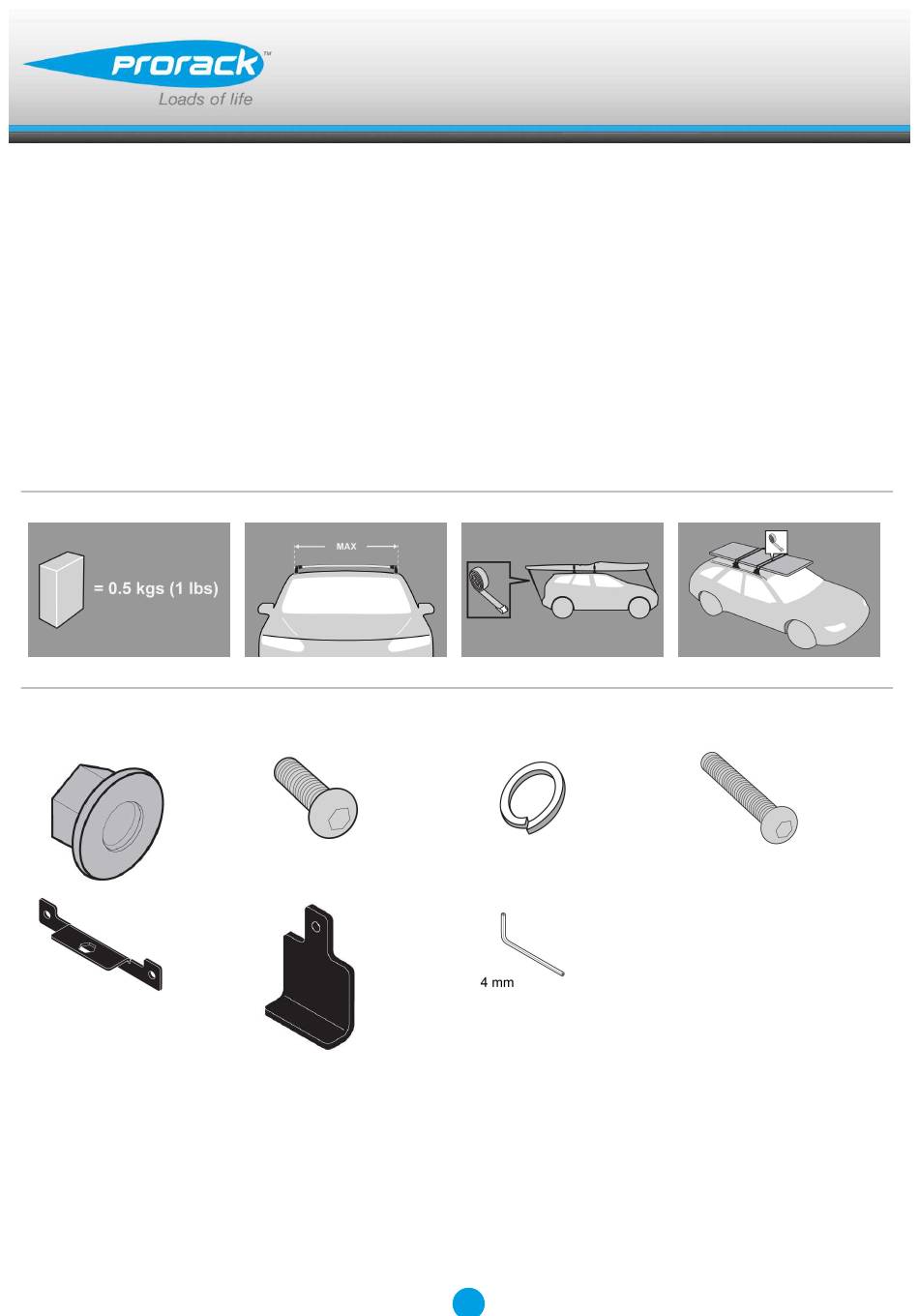

- Page 1 K680 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2B...
- Page 2 Fitting Kit K680 MAX kgs (lbs) Nissan Pathfinder R51, 5dr SUV 05-12 75 kgs (165 lbs) Pathfinder R51, 5dr SUV 05-12 75 kgs (165 lbs) Pathfinder R51, 5dr SUV 05-12 75 kgs (165 lbs) Pathfinder R51, 5dr SUV 05-Sep 13 75 kgs (165 lbs) Pathfinder R51, 5dr SUV 05-Sep 13 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K680 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. Remove plastic screws as shown. Place bracket over holes. Fit the M6 socket head screw and M6 washer. - Page 4 Fitting Kit K680 Ensure the roof rack face towards the front of vehicle. Use keys to remove covers. While holding the key in the vertical position, pull the cover towards you to remove the cover. Repeat for all legs. Extend the leg out. Remove Hex Key by lifting and sliding out.
- Page 5 Fitting Kit K680 Remove as shown. Remove clamp from leg. Store items away in a safe place. Fitment Spacer 808A: Position as shown Repeat for all four positions.
- Page 6 Fitting Kit K680 Crossbars should be parallel to each other and sit perpendicular to the roof rails. Repeat on other crossbar. Place screw into position. Screw small end of M8 flange nut onto M8 screw approximately 3 turns. Repeat for all four positions. Once crossbars are in position, tighten screw to 3 Nm (2.2 ft lb).
- Page 7 Fitting Kit K680 Slide Hex Key back into position into one of the roof rack legs. Ensure the locks on the legs are in the locked position (horizontal). Slide cover into the leg, You will hear a 'click' when the cover is securely locked. Repeat for all four positions.
- Page 8 Fitting Kit K680 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 9: Maintenance
Fitting Kit K680 Maintenance Long loads should be secured with non- elastic straps to the front and rear of the vehicle. Objects with pointed ends (e.g. ski poles) should be carried with the pointed ends to the rear of the vehicle. Remove all loose or removable objects from the load prior to loading. - Page 10 Accessories Available for this Product: Roof Box Ski, Snowboard Carrier Canoe, Kayak Carrier Bicycle Carrier For more accessories please see our product catalogue. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz www.whispbar.co.uk www.whispbar.co.za www.whispbar.eu www.whispbar.ca...
- Page 11 Fitting Kit K680 Pathfinder, 5dr SUV 05-12 (US) 390mm 1110mm 725mm 725mm 15 3/8ths" 43 11/16ths" 28 9/16ths" 28 9/16ths" Pathfinder, 5dr SUV 05-12 (ZA) 390mm 1110mm 725mm 725mm 15 3/8ths" 43 11/16ths" 28 9/16ths" 28 9/16ths" Pathfinder, 5dr SUV 05-12 (EU) 390mm 1110mm 725mm...
-
Page 12: Warranty And Disclaimer
Fitting Kit K680 WARRANTY & DISCLAIMER Yakima Australia Pty Ltd ABN 58 154 440 221 17 Hinkler Court, Brendale QLD 4500 Tel: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au Where the product is supplied to the customer for other than business purposes within the meaning of section 43 of the New Zealand Consumer Guarantees Act 1993, the provisions of that Act shall apply. - Page 13 Fitting Kit K680 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
