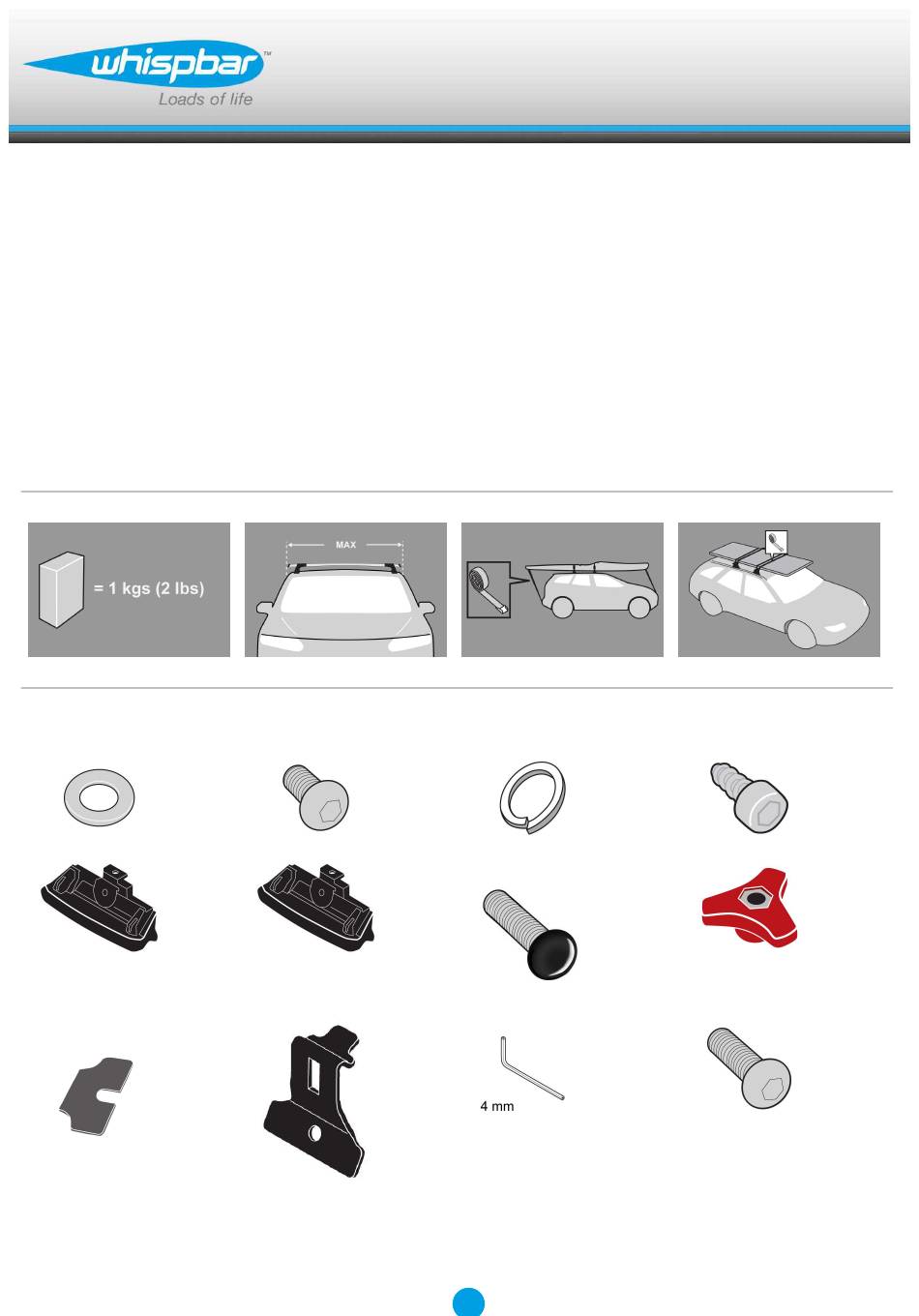

- Page 1 K684W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K684W MAX kgs (lbs) Jeep Compass, 5dr SUV 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Compass, 5dr SUV 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Compass, 5dr SUV 11-+ 75 kgs (165 lbs) 75 kgs (165 lbs)
- Page 3 Fitting Kit K684W Compass, 5dr SUV 11-+ (NZ) 110mm 800mm 860mm 825mm 4 5/16ths" 31 1/2ths" 33 7/8ths" 32 1/2ths" Compass, 5dr SUV 11-+ (AU) 110mm 800mm 860mm 825mm 4 5/16ths" 31 1/2ths" 33 7/8ths" 32 1/2ths" Compass, 5dr SUV 11-+ (ZA)
-
Page 4: First Time Installation
Fitting Kit K684W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K684W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 6 Fitting Kit K684W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist.

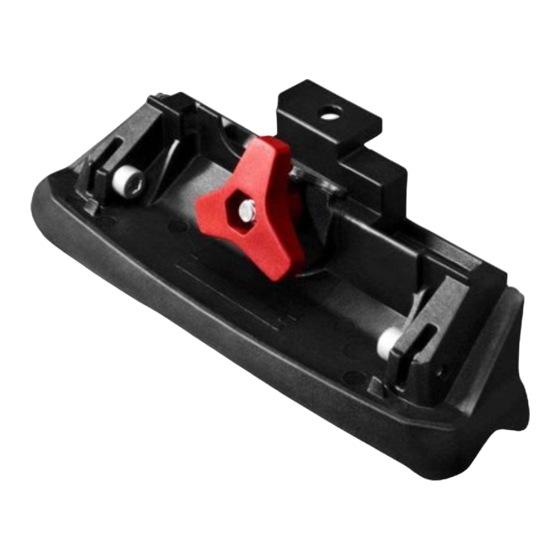

- Page 7 Fitting Kit K684W Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Select four feet assemblies and match the left and right assemblies to the left and right roof rack legs. Assemble foot from kit into leg by pressing it down.
- Page 8 Fitting Kit K684W Use two M5 x 12 mm self tapping screws to secure the assembly onto the leg. Do not over tighten. Fitment Apply protective strip as shown. Trim if required. Place crossbar foot over fixed-point mount.
- Page 9 Fitting Kit K684W Open or remove fixed-point covers. Place crossbar foot over fixed-point mount. Ensure back edge of foot sits flush with the back edge of vehicle roof rail. Slide clamp through opening in leg. Using the Hex Key and the capscrews, secure the clamps to the vehicle.
- Page 10 Fitting Kit K684W Thread the coach bolt through the clamp and the leg. Tighten the plastic knob. Ensure the plastic knob is in the position shown when fully tightened. Do not over tighten. Repeat for all four positions. Use keys to fit and lock covers Check crossbar is securely attached to the vehicle.
- Page 11 Fitting Kit K684W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K684W Maintenance Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. - Page 13 Fitting Kit K684W Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting instructions. This is especially important when carrying long loads. Check unit is securely attached whenever you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust.
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
