Summary of Contents for Whispbar K621W

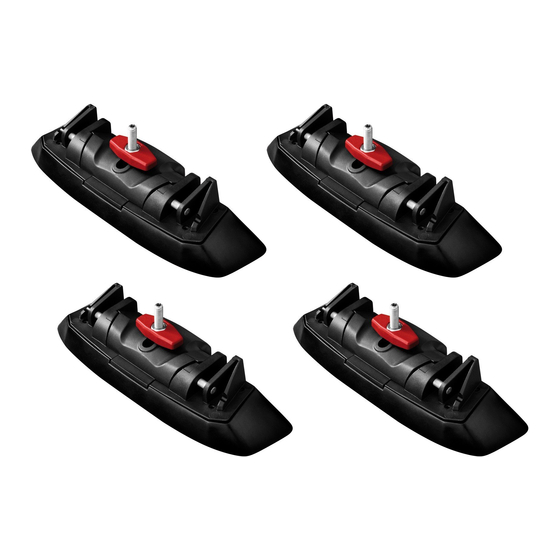

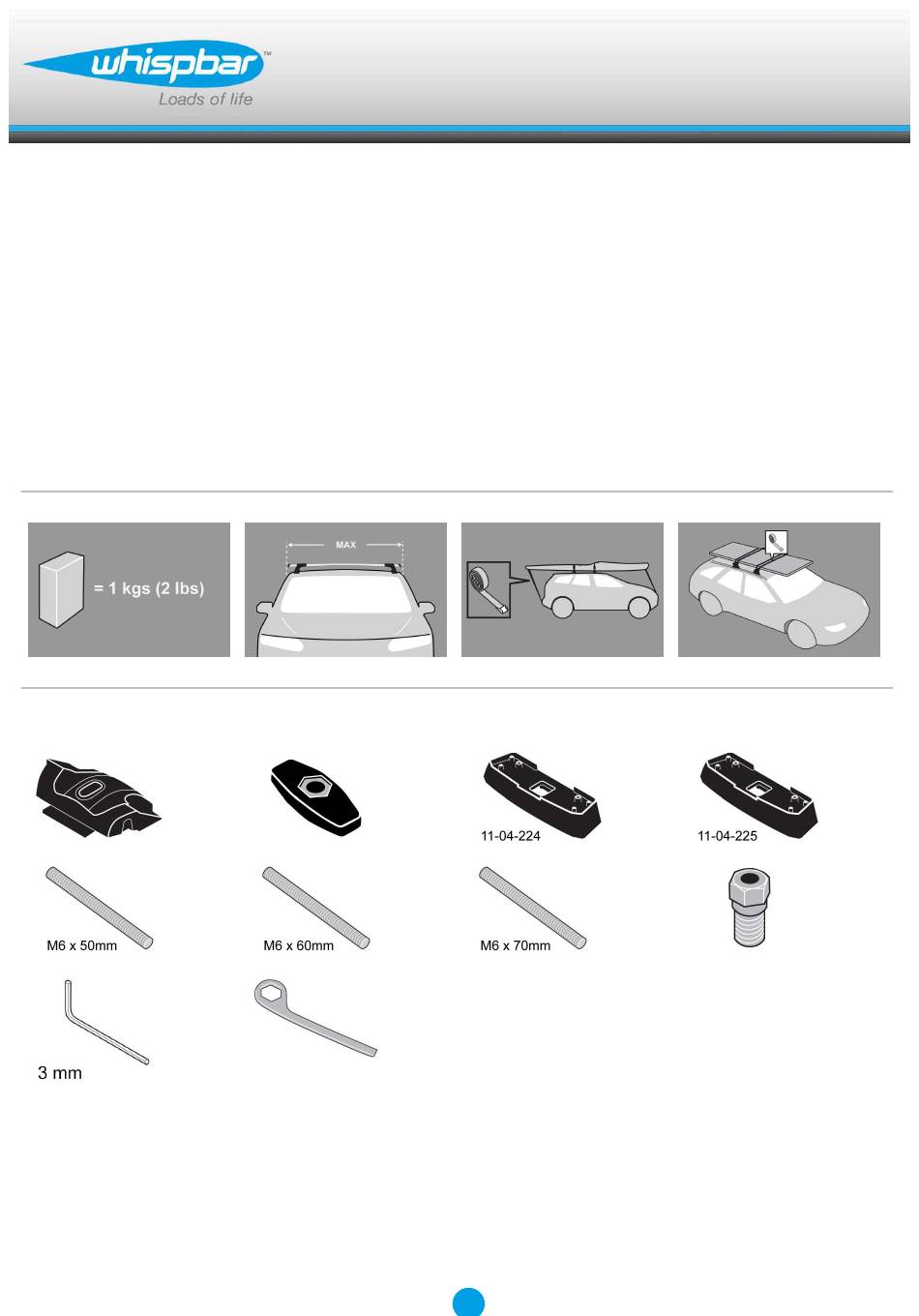

- Page 1 K621W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6C...
- Page 2 Fitting Kit K621W MAX kgs (lbs) Mercedes CLS Class W219, 4dr Sedan 04-10 75 kgs (165 lbs) 75 kgs (165 lbs) CLS Class W219, 4dr Sedan 05-10 75 kgs (165 lbs) 75 kgs (165 lbs) CLS Class W219, 4dr Sedan 05-10...
-
Page 3: First Time Installation
Fitting Kit K621W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K621W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Attaches to factory-fitted mounting points...
- Page 5 Fitting Kit K621W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit)
- Page 6 Fitting Kit K621W Repeat for all four positions. Open or remove fixed-point covers. Select four grubscrews and assemble them into the adaptor using 3 mm (1/8") Hex Key. NOTE: Mercedes only Select grubscrews and screw into the vehicle's fixed points.
- Page 7 Fitting Kit K621W Sort M6 grubscrews into lengths. A = Mercedes CLS Class B = Mercedes S Class / Subaru WRX C = Not applicable unless advised Using the supplied Hex Key, tighten grubscrew into position. Repeat for all four positions.
- Page 8 Fitting Kit K621W Letters refer to the pad part numbers and position. Pad Part Number: A = 224A B = 225A Close all fixed-point covers so they rest on the grubscrew and place pads over grubscrews. It is important to put the pads in the correct...
-
Page 9: All Configurations
Fitting Kit K621W Place crossbars on pads ensuring the pads fit into the holes underneath the foot and the grubscrew passes through the hole in the foot. All Configurations: Tighten the plastic knob. The side with the nut showing should be facing up. - Page 10 Fitting Kit K621W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K621W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K621W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 13 Fitting Kit K621W CLS Class, 4dr Sedan 04-10 (EU) -140mm 500mm 980mm 965mm -5 -1/2ths" 19 11/16ths" 38 9/16ths" 38" CLS Class, 4dr Sedan 05-10 (NZ) -140mm 500mm 980mm 965mm -5 -1/2ths" 19 11/16ths" 38 9/16ths" 38" CLS Class, 4dr Sedan 05-10 (AU)
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
