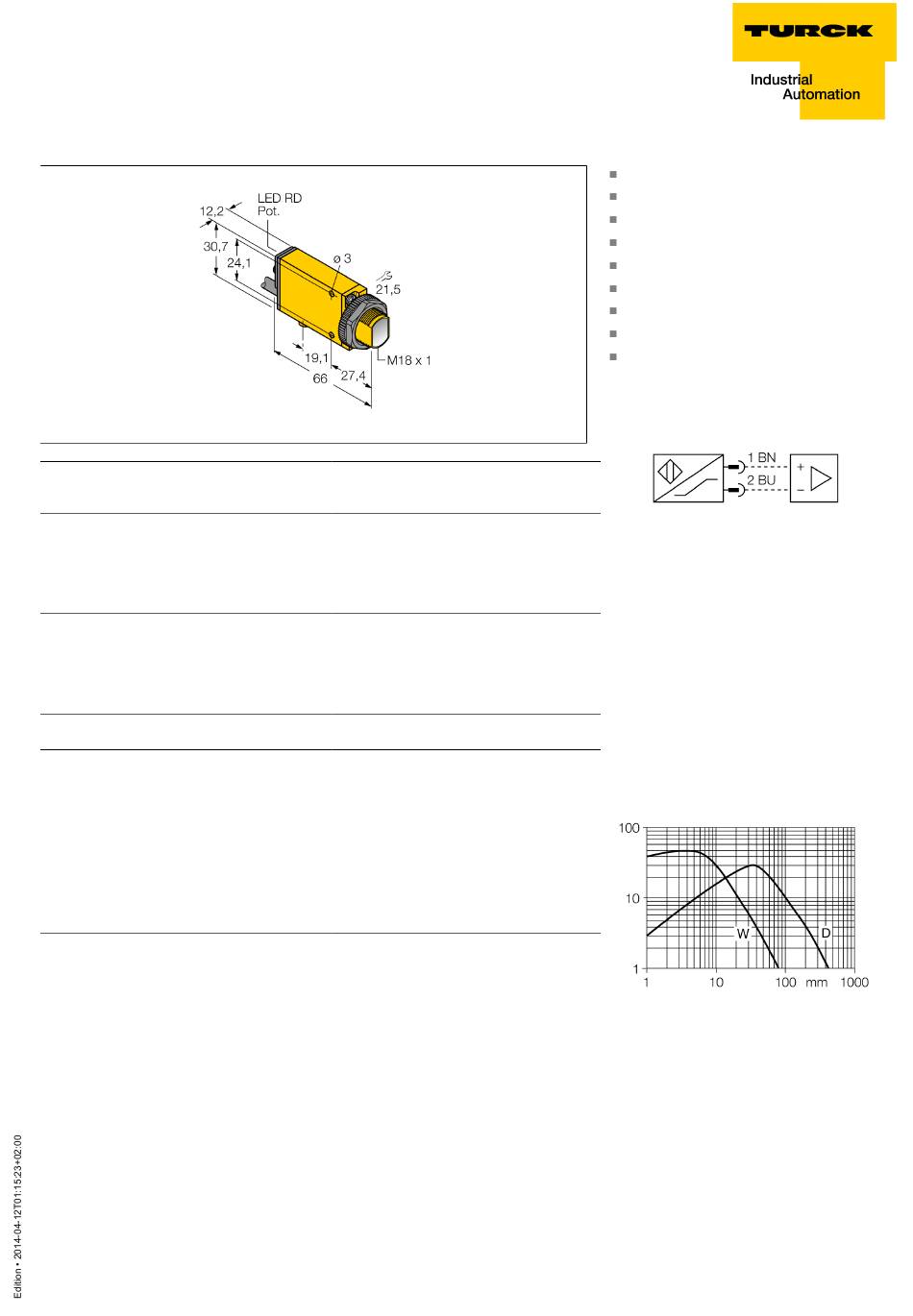

turck MIAD9D Manual

Photoelectric sensor
diffuse mode sensor
MIAD9D
Type code
Ident no.
Operating mode
Light type
Wavelength
Range
Ambient temperature
Voltage
Non-actuated current consumption
Actuated current consumption
Output function
Switching frequency
Device designation
Design
Dimensions
Housing material
Lens
Connection
Cable length
Cable cross section
Protection class
Protection type
Ex approval acc. to conformity certificate
Switching state
Excess gain indication
1 / 4 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
MIAD9D
3037714
diffuse mode sensor
IR
880 nm
0...380 mm
-40...+70 °C
Nom. 8.2 VDC
ð 1.2 mA
ï 2.1 mA
light operation, NAMUR
ð 100 Hz
Ex II 1 G Ex ia IIC T5
rectangular, Mini Beam
66 x 12.3 x 30.7 mm
plastic, PBT, yellow
plastic, acrylic
cable
2 m
2 x 0.5 mm
2
IP67
Ex ia IIC T5 Ga
FM12ATEX0094X
LED red
LED red flashing
ATEX II 1 G approval
Acc. to EN 60947-5-6 (NAMUR)
Cable, PVC, 2 m
Protection class IP67
Sensitivity adjustable via potentiometer
Alignment indicator
Operating voltage: 5...15 VDC (NAMUR)
Switching output, bipolar
Light/dark operation
Wiring diagram
Functional principle
Diffuse mode sensors incorporate the emitter
and receiver in a single housing. However, dif-
fuse mode sensors do not detect the interrup-
tion of the light beam like opposed mode sen-
sors, but the reflection of the target. A target
is detected if it reflects a sufficient amount of
light back to the receiver. The switching dis-
tance of diffuse mode sensors thus largely de-
pends on the reflectivity of the target.
Excess gain curve
Excess gain in relation to the distance
