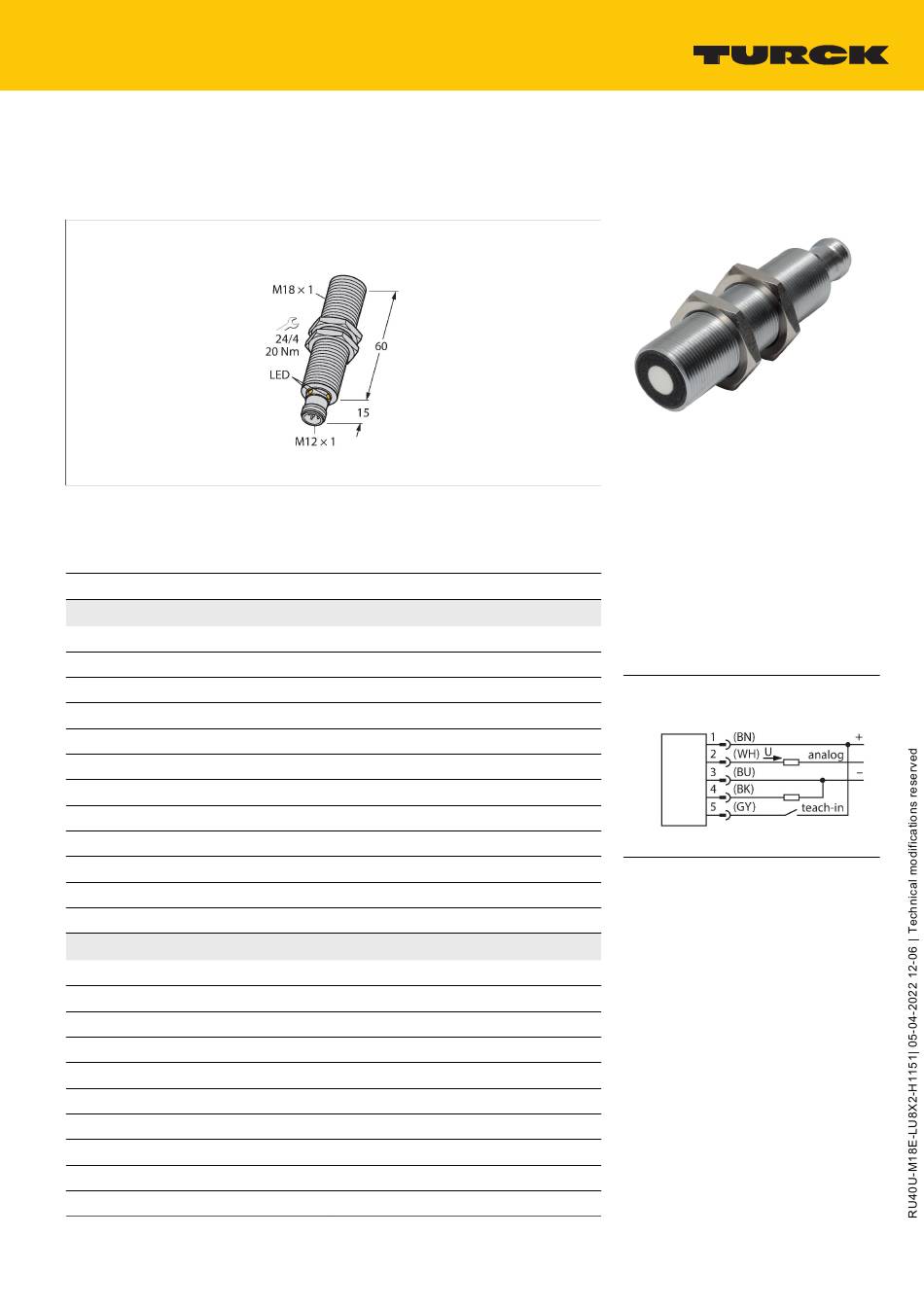

turck RU40U-M18E-LU8X2-H1151 Manual

RU40U-M18E-LU8X2-H1151
Ultrasonic Sensor – Diffuse Mode Sensor
Technical data
Type
ID
Ultrasonic data
Function
Range
Resolution
Minimum measuring range
Minimum switching range
Ultrasound frequency
Repeat accuracy
Temperature drift
Linearity error
Edge lengths of the nominal actuator
Approach speed
Pass speed
Electrical data
Operating voltage
Residual ripple
DC rated operational current
No-load current
Load resistance
Response time typical
Readiness delay
Output function
Output 1
Voltage output
Hans Turck GmbH & Co. KG | 45466 Mülheim an der Ruhr, Germany | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com 1|4
RU40U-M18E-LU8X2-H1151
1610109
Proximity switch
25...400 mm
0.5 mm
50 mm
50 mm
300 kHz
≤ 0.15 % of full scale
± 1.5 % of full scale
≤ ± 0.5 %
20 mm
≤ 3 m/s
≤ 1.3 m/s
15...30 VDC
10 % U
ss
≤ 150 mA
≤ 50 mA
≤ 1000 Ω
< 60 ms
≤ 300 ms
Analog output
Analog output
0...10 V
Features
■
Smooth sonic transducer face
■
Cylindrical housing M18, potted
■
Connection via M12 x 1 male
■
Teach range adjustable via adapter
■
Temperature compensation
■
Blind zone: 2.5 cm
■
Range: 40 cm
■
Resolution: 0.5 mm
■
Aperture angle of sonic cone: ±15 °
■
1 × analog output, 0...10 V/additional
switching output, PNP
Wiring diagram
Functional principle
Ultrasonic sensors capture a multitude of
objects contactlessly and wear-free with
ultrasonic waves. It does not matter whether
the object is transparent or opaque, metallic
or non-metallic, firm, liquid or powdery. Even
environmental conditions such as spray, dust
or rain hardly affect their function.
The sonic cone diagram indicates the
detection range of the sensor. In accordance
with standard EN 60947-5-7, quadratic targets
in a range of sizes (20 × 20 mm, 100 × 100
mm) and a round rod with a diameter of
27 mm are used.
Important: The detection ranges for other
targets may differ from those for standard
targets due to the different reflection
properties and geometries.
