Summary of Contents for Sealey SM27

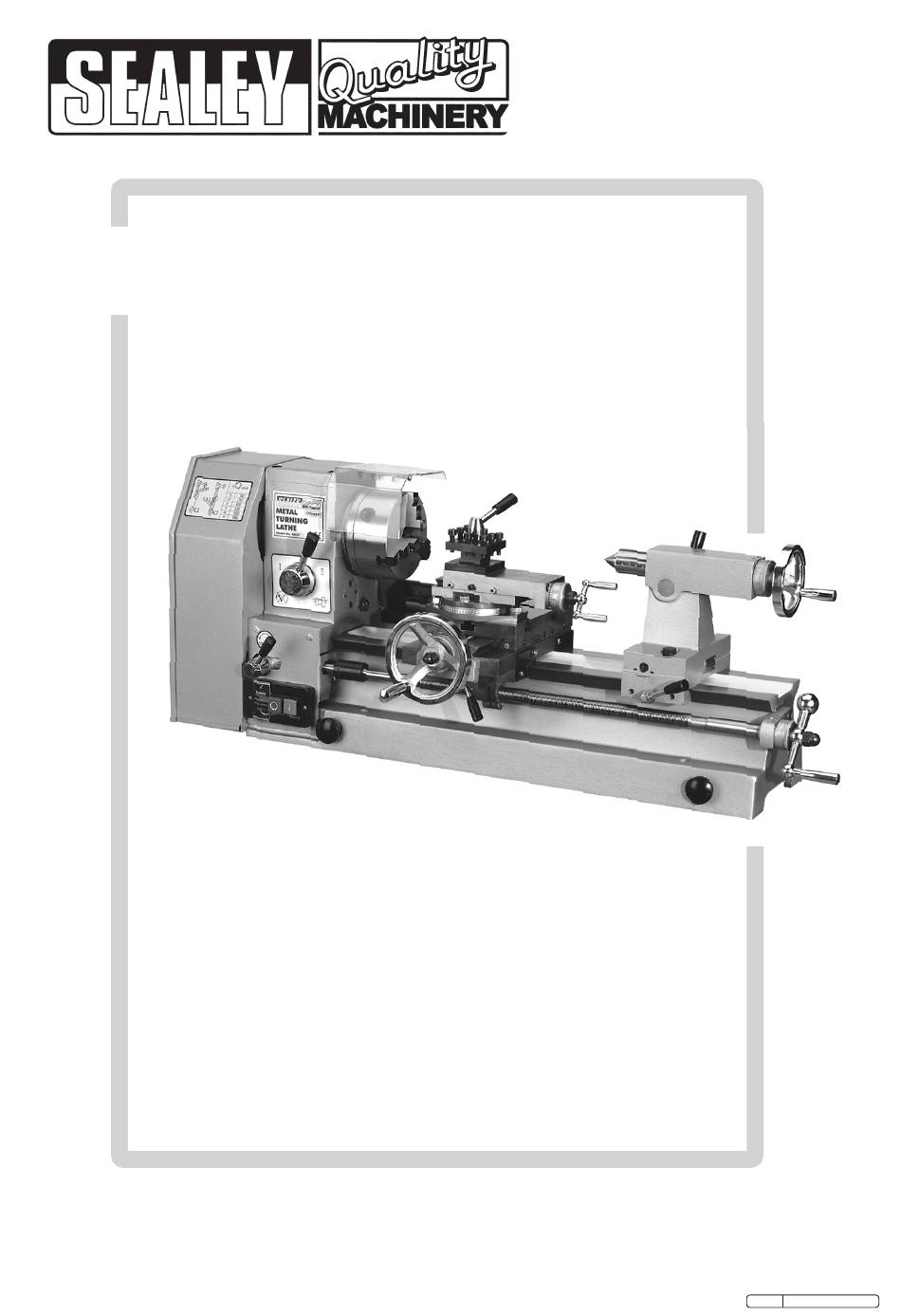

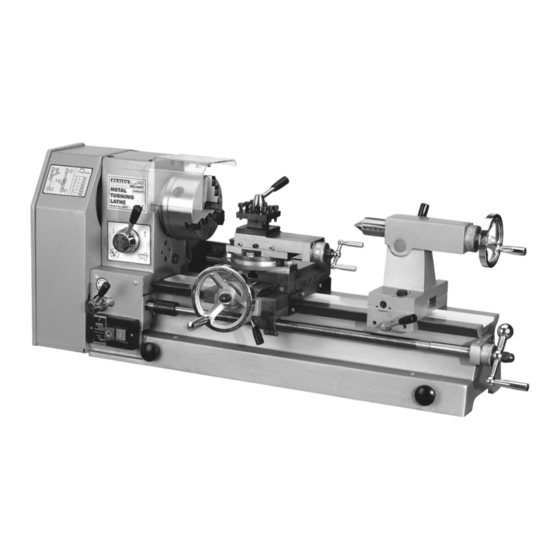

- Page 1 INSTRUCTIONS FOR: METAL TURNING LATHE SM27 MOdel: Original Language Version SM27 Issue: 5 - 28/10/09...
-
Page 2: Safety Instructions
(rcd) is used. It is particularly important to use an rcd with portable products that are plugged into a supply which is not protected by an rccB. If in any doubt consult a qualified electrician. You may obtain a residual current device by contacting your Sealey dealer. -
Page 3: Introduction & Specification
Section for the rolling centre and tailstock chuck. the spindle is positioned using the feed handle (fig. 1.4) and then locked with the locking handle (fig. 1.3). the tailstock base may be moved along the lathe bed as necessary and locked in position by the locking lever (fig. 1.7). Original Language Version SM27 Issue: 5 - 28/10/09... - Page 4 4.9.6. tighten adjuster screw (fig. 6.4) and refit the end cover. dO NOT operate the lathe with the end cover open. Spindle Speed rpm fig. 4 fig. 5 fig. 6 A 160 B 250 C 400 d 630 e 1000 F 1600 Original Language Version SM27 Issue: 5 - 28/10/09...
-
Page 5: Maintenance
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim. INFORMATION: for a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode. Sole UK distributor, Sealey Group, www.sealey.co.uk... - Page 6 AcceSSorIeS for: MeTAl TURNING lATHe SM27 Model no: These accessories are available from your Sealey dealer. Ø160mm Face Plate - SM27FP Ø160mm 4-Jaw Chuck & Back Plate - SM27FJC Fixed Steady - SM27FS Moving Steady - SM27MS Ø13mm, Mt3 Tailstock Chuck & Arbor - SM27TC...
