Tape Light Solutions

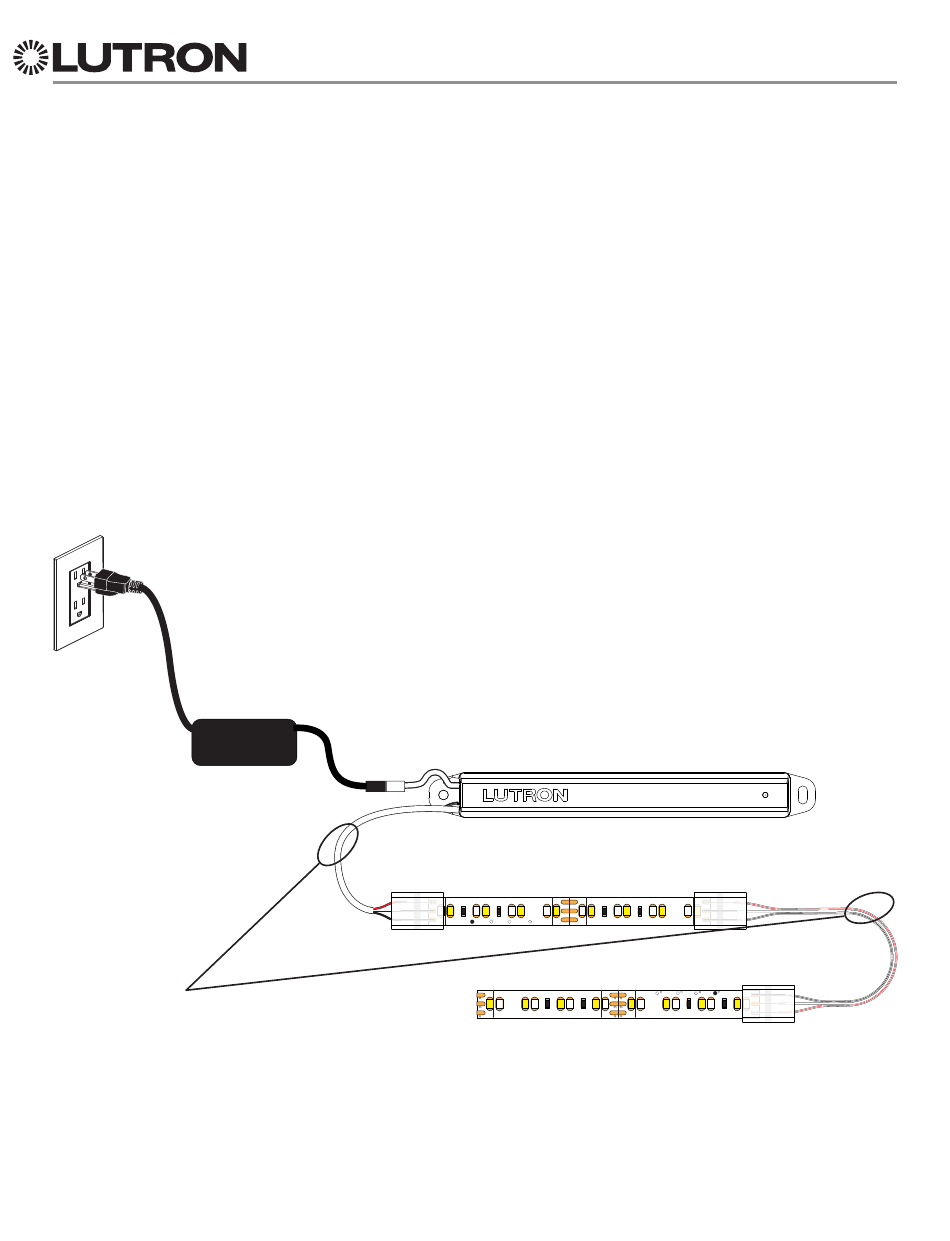

Wiring
Plug-in Power Supply (T120-24DC-15)
• Compatible with xxL-TWCL-WH wireless controller only. Not for use with xxL-MWCL-WH.
• The wireless controller (xxL-TWCL-WH) and power supply (T120-24DC-15) have 5.5 mm x 2.1 mm barrel
connectors.
• Maximum amount of 3 x 22 AWG (0.50 mm
10 ft (3.0 m). The cable can be added to the beginning or can be used to break up segments of LED tape.
— 3 x 22 AWG (0.50 mm
Lutron P/N LU-WK1-TW.
— Up to 6 wire-to-tape connectors can be used with 10 ft (3.0 m) of cable. For every additional wire-to-tape
connector used, the maximum length of cable allowed is reduced by 6 in (152.4 mm).
• Maximum length of LED tape light when using the plug-in power supply, (T120-24DC-15) is 16.4 ft (5 m) total,
regardless of whether LED tape is in a single segment or broken up by cables.
T120-24DC-15
Plug-in Power Supply
Maximum wire length from
each wireless controller to
LED tape is 10 ft (3 m)
www.lutron.com/support
product specifications
) stranded cable allowed on the output of wireless controller is
2
) stranded cable is provided with the tape light kit or it can be ordered as
2
Wire-Tape
Connector
Tunable White Wireless Controller
R R R
W W W
B B B
A B C D
LED Tape
LED Tape
5
3691301b
Wire-Tape
Connector
R
W
B
Wire-Tape
Connector
