This installation guide covers model:
TAB-123T/WO-ARR-CP
TAB-223T/WO-ARR-CP
VADO
Wedmore Road Cheddar Somerset England BS27 3EB
tel 01934 744466
fax 01934 744345
www.vado.com
sales @ vado.com

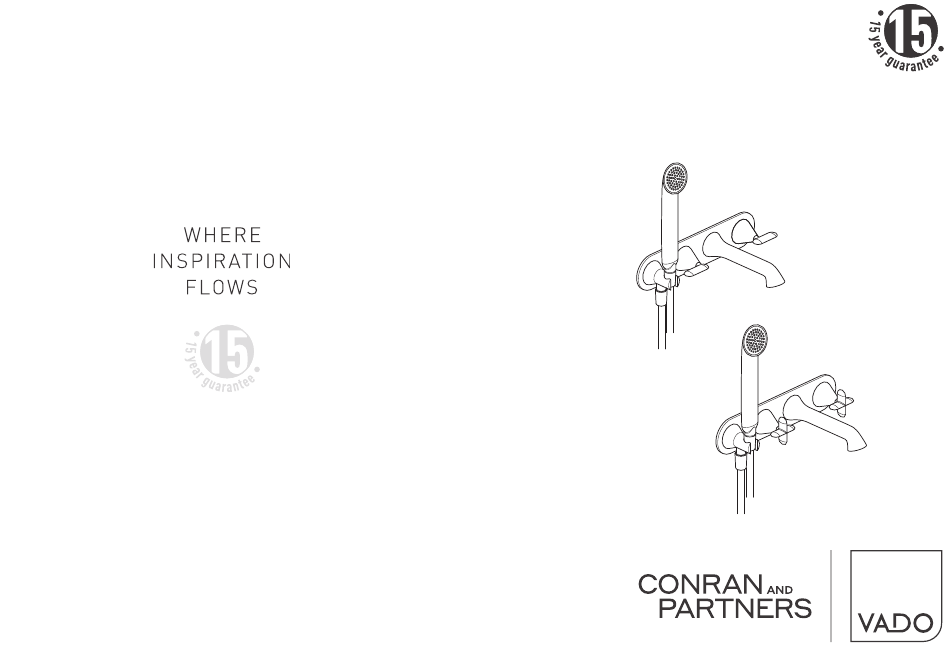

ARRONDI
2 handle, 2 outlet thermostatic shower valve
Installation Guide
TAB-123T/WO-ARR-CP
TAB-223T/WO-ARR-CP
Version 1, 1-4-22
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADO Conran and Partners Arrondi TAB-123T/WO-ARR-CP
Summary of Contents for VADO Conran and Partners Arrondi TAB-123T/WO-ARR-CP
- Page 1 ARRONDI This installation guide covers model: TAB-123T/WO-ARR-CP 2 handle, 2 outlet thermostatic shower valve TAB-223T/WO-ARR-CP Installation Guide TAB-123T/WO-ARR-CP TAB-223T/WO-ARR-CP VADO Wedmore Road Cheddar Somerset England BS27 3EB tel 01934 744466 fax 01934 744345 www.vado.com sales @ vado.com Version 1, 1-4-22...
-
Page 2: General Installation
Important - Please Read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Contents of Packaging Dimensions Wall depth: 79.5mm min - 101.5 max. Optimum depth: 87mm 200mm Hex key Adaptors ¾" to ½" x 2 Handset 183mm 50mm 50mm 58mm 58mm ARR-123 Handles ARR-223 Handles Shower hose with 2 washers 80mm 80mm 80mm 314mm...
- Page 4 Installation - Quick Guide Installation - Quick Guide 208mm 90mm...
- Page 5 Installation - Quick Guide Installation - Quick Guide ARR-223...
-
Page 6: Installation
Optimum depth: 87mm). If you are fitting the valve to a partition wall or a wall of particularly soft substrate you will need specialist fixings. Please contact VADO or retailer for WG-STUDFAST-C-S/S fixing. Mortar guard Mortar guard During installation please leave the mortar guard secured to the valve to avoid (wall shown in minimum position) damage to the product and protect the internals during tiling etc. - Page 7 Installation Installation Connect hot supply to the lower inlet of Screw spigot into the outlet on the back Cold inlet the valve and cold supply to the of the plate. Tighten using a 8mm hex Outlet spigot upper inlet. key. hex key Hot inlet Plate...
-
Page 8: Installation - Handset
Installation Installation - Handset Handle shroud Handle shroud Rubber ARR-123 ARR-223 washer Hose Carefully slide the handles onto spline of the valve. While holding the handle in the horizontal position screw the shroud until touches the cover plate. For the ARR-223 the levers should be in the vertical/horizontal position. Handset outlet Place a rubber washer into either end of the hose and attach it to the... - Page 9 Temperature Commissioning Temperature Commissioning Stop arm Stop adapter Screw Stop arm Step on stop Stop ring ring located at 8 o'clock Temperature valve spline Note: Mixed water temperature at terminal fitting should never exceed 46° C. The valve has been factory set under balance pressures and hot water supply at 65°C. Stop When your specific operating conditions are significantly different from the above, the temperature of the water may vary from the setting.
- Page 10 Notes: Notes:...
