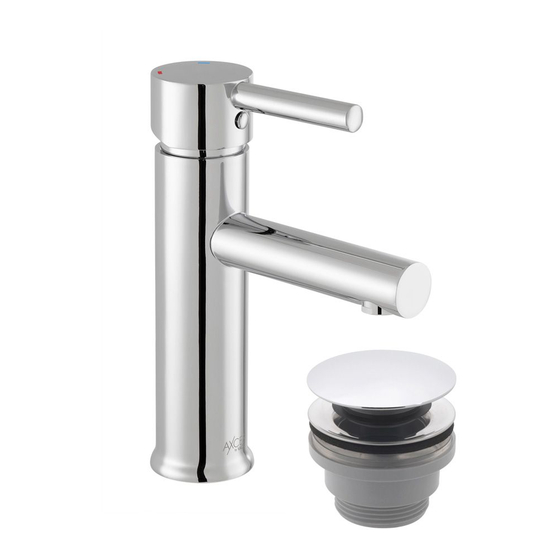

- Page 1 KEEP FOR FUTURE REFERENCE NURI This instruction booklet covers model: AX-NUR-100-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB MONO BASIN MIXER WITH tel 01934 744466 fax 01934 744345 POP-UP WASTE www.vado.com sales@vado.com Version 1, 1-8-19...
- Page 2 Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
- Page 3 Dimensions Installation - Quick guide 108mm 45mm 107mm 42mm 48mm 1/2” 60mm...
- Page 4 Installation - Quick guide Installation Before installing your new mixer, flush Control through the pipe work to ensure removal handle of debris, turn off the water supply. Ensure the O-ring is in place in the bottom of the mixer body. Position the mixer on the basin.
- Page 5 Installation - Pop-up waste Operation Dissemble the pop-up waste and Fig 1 reassemble onto the basin. (see Fig 1) Insert the vertical control rod down through the hole in the back Cold of the mixer body. Slide the bearing (lip nearest the ball) over the short end of the horizontal control rod, push into the waste and clamp in position by...
- Page 6 •The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
