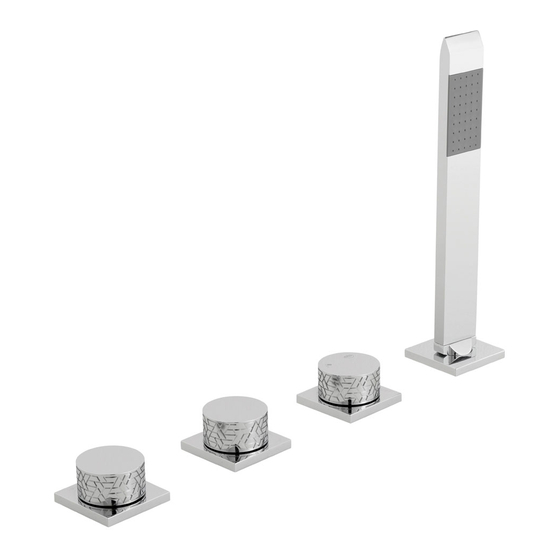

- Page 1 Installation Guide Deck Mounted Shower Mixer This instruction booklet covers model: OMI-135. Vado Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466. fax 01934 744345 aftersales @ vado.com www.vado.com Keep for future reference Version 1, 1-8-17...
- Page 2 Contents Notes Important information ..........3 General installation ...........3 Operating Specifications ...........3 Contents of packaging ..........4 Dimensions ..............5 Installation - Quick guide ..........6 Installation - Flow control .........8 Installation - Diverter ..........9 Installation - Shower ..........10...
- Page 3 Installation - shower Important - please read Please read these instructions carefully before starting installation and keep for Unscrew the holder base from the future reference. threaded tube. Remove all packaging and check the product for missing parts or damage before Make sure the O-ring is in position starting installation.
- Page 4 Contents of Packaging Installation - diverter Unscrew the handle/base from the valve and carefully pull off. Handle Push the valve up through the hole Base in the bath. Make sure the O-ring is in position O-ring in the groove on the underside of the base.
- Page 5 Installation - flow control Valve dimensions Before installing your new fitting, flush through the pipe work to Handle ensure removal of debris, turn off 30mm the water supply. Base Identify the hot and cold valves O-ring (each valve will be marked), the hot valve should be on the left side and cold on the right Unscrew the handle/base from the...
- Page 6 Installation - Quick guide Installation - Quick guide A & B Max - 5 Bar Min - 1 Bar...
