Bake Max BMHA02Y Operation Manual

12” two pass dough sheeter
Hide thumbs

Advertisement

Table of Contents

BakeMax BMHA02Y
12" Two Pass
Dough Sheeter
Operations Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMHA02Y and is the answer not in the manual?

Questions and answers

Related Manuals for Bake Max BMHA02Y

Summary of Contents for Bake Max BMHA02Y

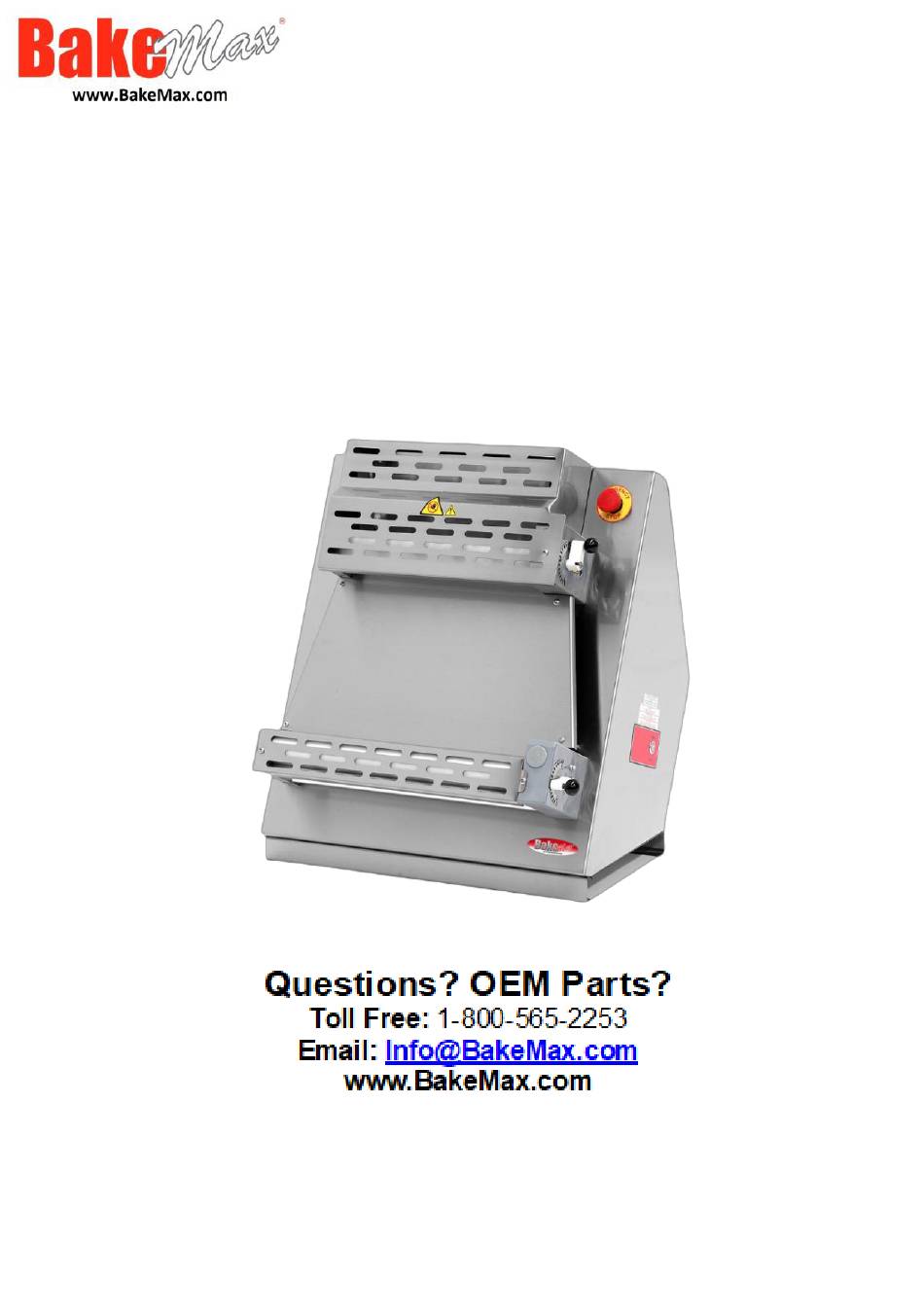

  • Page 1 BakeMax BMHA02Y 12” Two Pass Dough Sheeter Operations Manual...

  • Page 2: Warning & Safety

    Warning & Safety PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT INJURY OR DAMAGE TO THE PRODUCT BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment.

  • Page 3: General Information

    GENERAL INFORMATION READ INSTRUCTIONS CAREFULLY BEFORE OPERATING. WRONG ASSEMBLY AND / OR MAKING CHANGES MAY CAUSE DAMAGE TO EQUIPMENT OR CAUSE BODILY INJURY. ANY INTENDED DAMAGE, THE NEGLECT TO FOLLOW INSTRUCTIONS AND REGULATIONS OR WRONG CONNECTIONS ARE NOT OUR RESPONSIBILITY. UNAUTHORIZED INTERFERENCE WITH THE DEVICE WILL VOID THE PRODUCT WARRANTY.

  • Page 4: Important Warning

    Contact your local Authorized Service Agent for service or required maintenance. Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service. Model no. BMHA02Y ………………………………. Serial No. ………………………………. Voltage ……………………………….
  • Page 5 *This device, which provides high efficiency, is produced for use in industrial kitchens. professional One pastry opening machine. Only for pizza, bread dough etc. Product Crated Electrical Width Depth Height Model Weight Weight 110V / 2.5A / 370W 37 kg 44 kg BMHA02Y 18” 18.6” 34.2” 60Hz / Nema 5-15P 81.57lbs. 97.00lbs.

  • Page 6: General Warnings

    Dough Rolling Machines GENERAL WARNINGS *Adequate lighting is necessary for safe usage. sur *Make sure device has proper Power supplied *Make sure Device is not around Flammable material or liquids *If Device does not work properly do not use. *Do not Overload or Underload Device, follow Capacity recommendations. *Make sure all Protective Guards are on Device Do not place hands in or near Rollers while Device is operating...
  • Page 7 Dough Rolling Machines How to Operate your Dough Sheeter How to Use • Before operating the Sheeter wipe it down with Damp Cloth and then a Dry Cloth and make sure the Sheeter is Dry. • On the side of Roller Block (Right Side) there is a Black Round Knob to set Roller Thickness.

  • Page 8: Cleaning And Care

    Dough Rolling Machines CLEANING AND CARE NOTE: To ensure the best quality, longevity, and warranty status, these units should be cleaned after each use. 1. Ensure the unit is turned off and unplugged. 2. Clean all flour and dough off the unit with a soft brush. 3.
  • Page 9 Dough Rolling Machines 6. Turn thickness adjustment handle to maximum thickness to allow for easy cleaning access. 7. Clean the machine and parts carefully using water and a soft cloth or sponge. 8. Rinse thoroughly and dry all parts. Reassembly is reverse of above steps...
  • Page 10 Dough Rolling Machines Check that you are getting power at the plug & at machine – check breakers. DEVICE Loose Wire Connection NOT WORKING Emergency Stop Button Not Pulled Out ON/OFF button working and working not working control. Contactor problem Device rollers study during stop doing whereas, strap ROLLERS your tension control...
  • Page 11 Dough Rolling Machines Part Description Factory # 15X32X9 BEARING M.RLM-NRM-002 KAMA 5*5*15 KAMA 5*5*15 BEVEL GEAR SHORT M.MON-DSL-033 SEGMAN (471) B-SEG-SYH-011 BOTTOM TOP ROLLER COVER SHEET YSC-ERS.HA-LZ-0089 TRANSMISSION ALUMINUM (128X65X80H) YMH-ERS.HA-KS-0021 CONICAL GEAR LONG M.MON-DSL-032 KAMA 5*5*10 KAMA 5*5*10 REAR BALL BEARING M.ENJ-ERS-PLS-HA-016 FRONT BALL BEARING M.ENJ-ERS-PLS-HA-014...
  • Page 12 Dough Rolling Machines CKP-01 LABEL GEARBOX MOTOR SHAFT YTL-ERS.HA-KS-0098 REDUCER M.MON-RDK-021 0.37 KW 110 V 60 HZ 1660 RPM 6.8A MOTOR M.ELK-MTR-RSM-119 REAR COVER SHEET YSC-ERS.HA-LZ-0099 TENSION PULLEY CLAMPING SHEET YSC-ERS.HA-LZ-0160 SLEEVE PULLEY SCREW PIN YTL-ERS.BPR-KS-0001 SEGMAN (471) B-SEG-SYH-011 SEGMAN (471) B-SEG-SYH-012 15X35X11 BEARING M.RLM-NRM-003...

  • Page 13: Warranty And Service

    Warranty & Service Dough Rolling Machines BakeMax provides a 1-Year Limited Parts and Labor warranty on most items, there are select items which carry a Limited 2-Year Warranty. Extended Warranty is available on some products. Please contact us for details. The Warranty is not transferable and is limited to original installation of equipment sold by BakeMax for the original user.
