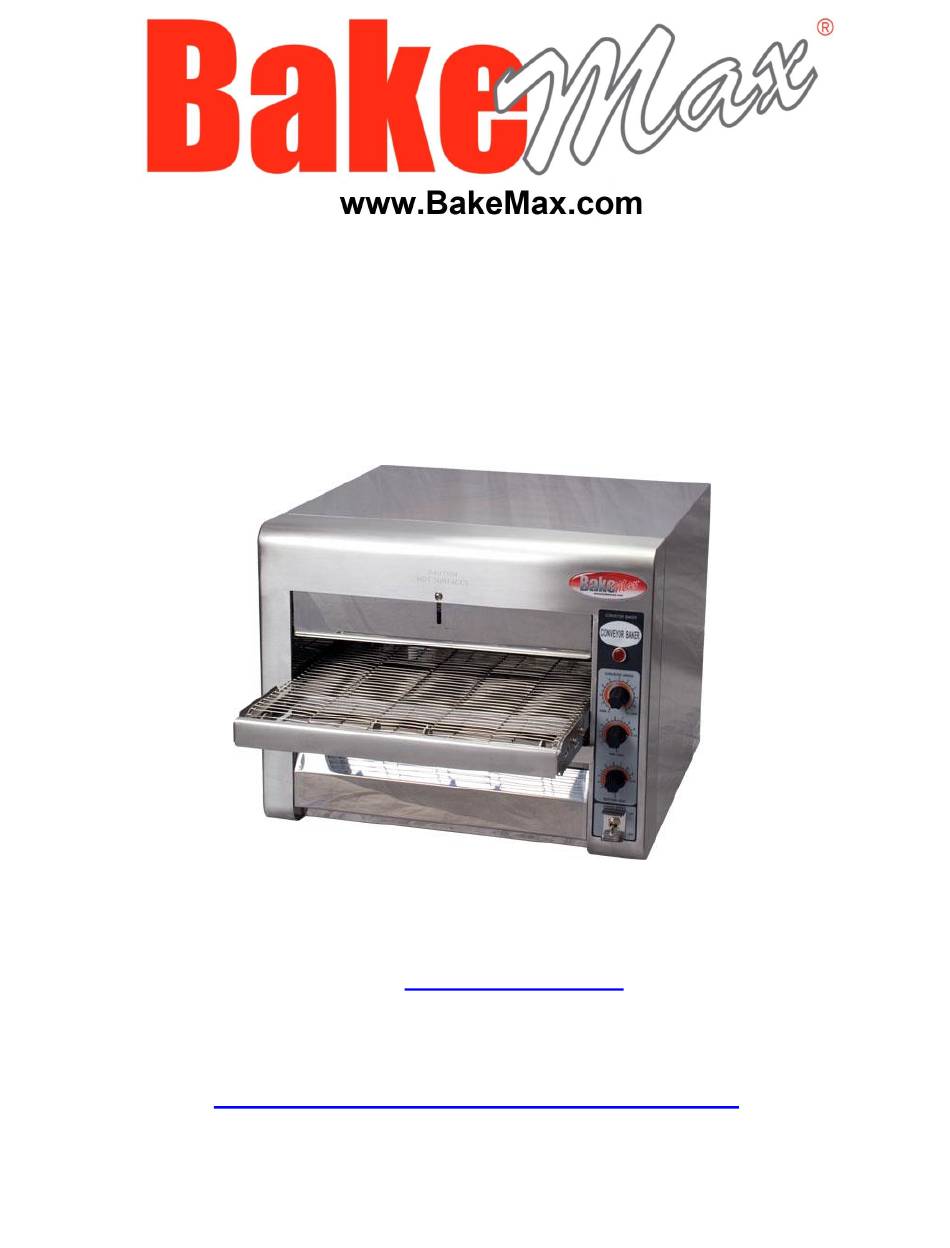

- Page 1 Conveyor Baker BMCB001 Operations Manual Questions? Contact Us: Toll Free: 1-800-565-2253 Email: Info@BakeMax.com www.BakeMax.com Warranty Registration www.BakeMax.com/Warranty-Registration...
-
Page 2: Warning & Safety
Warning & Safety PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT INJURY OR DAMAGE TO THE PRODUCT BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. -
Page 3: Technical Specifications
Cleaning • This unit has been coated for shipping purposes, please clean before use. • Do not use any liquid pressurised cleaning equipment on this machine. • Disconnect power supply before cleaning. • Only use food grade non-abrasive cleaning agents. •... - Page 4 Operating Instructions: • Turn the power to FULL POWER and turn conveyor speed control to maximum setting. • Allow preheat time 8-10 min. for unit to heat up. • Place a sample product on the conveyor belt to test the settings. •...
-
Page 5: General Maintenance And Cleaning
General Maintenance & Cleaning 1. Daily maintenance should be carried out with all power to the unit in the off position, and the electrical cord unplugged. Cleaning should be carried out by means of food grade cleaning solutions via a soft or damp cloth. Do not utilize any type of pressurized water equipment. 2. - Page 6 Weekly Cleaning of the Conveyor Belt: 1. Turn power switch to the OFF position. Disconnection unit from power source and allow the unit to fully cool down before continuing. 2. Perform daily cleaning procedures. 3. Use a damp cloth to wipe the fan guard located on the box cover under the unit. Ensure the unit is fully dry before you reconnect power or turn power back on.
- Page 7 Monthly Cleaning & Removal of Belt: 1. Turn main power switch to the OFF position. Disconnect unit from its power source and allow unit to fully cool. 2. Perform daily and weekly cleaning procedures. Follow the step 1 in Figure “B”, to remove all of the master links.
- Page 8 7. Next, pull one end of the conveyor belt over the top of the sprockets, (being sure to line the links up properly with the sprockets) bring the two ends together. 8. Reinstall the previously removed master links as shown in step 2 & 3 in Figure “B” (Above) Unhook the last link of the conveyor, farthest away from you, and re-thread through the other end, and reconnect back onto itself.
- Page 9 Replacing Fan Motor Step 1. DISCONNECT POWER SOURCE. Step 2. After unit has cooled, remove the crumb tray, and turn unit over so this bottom is facing upward. Never place unit on its side. Step 3. Unplug power supply cord from fan motor. Step 4.
- Page 10 Step 8. Put new motor in place and attach loosely with mounting screws. Step 9. Replace sprocket on motor shaft. PEASE NOTE: The two sprockets must line up flush with each other, so the chain does not twist any during operating. Also the hub gets installed closest to the motor.
- Page 11 Cleaning Air Intake – Weekly Step 1. DISCONNECT POWER SOURCE. Step 2. Place unit upside down. NOTE: you may damage the heater tubes by placing unit on its side. Step 3. Use a vacuum cleaner and or a damp cloth to clean the air intake. The procedure should be done at least once a week.
- Page 12 Parts Break Down – Multi View: Side View:...
- Page 13 Top View:...
- Page 16 Front View:...
- Page 17 Description Position 01 - Stainless Steel Cover Position 02 - Fan Terminal Position 03 - Insulation Plate Position 04 - Plate Front Position 05 - Cover Rear Position 06 - Drawer Position 07 - Front Plate Position 08 - Rear Plate Position 09 - Left Plate Position 10 - Right Plate Position 11 - Base Plate...
