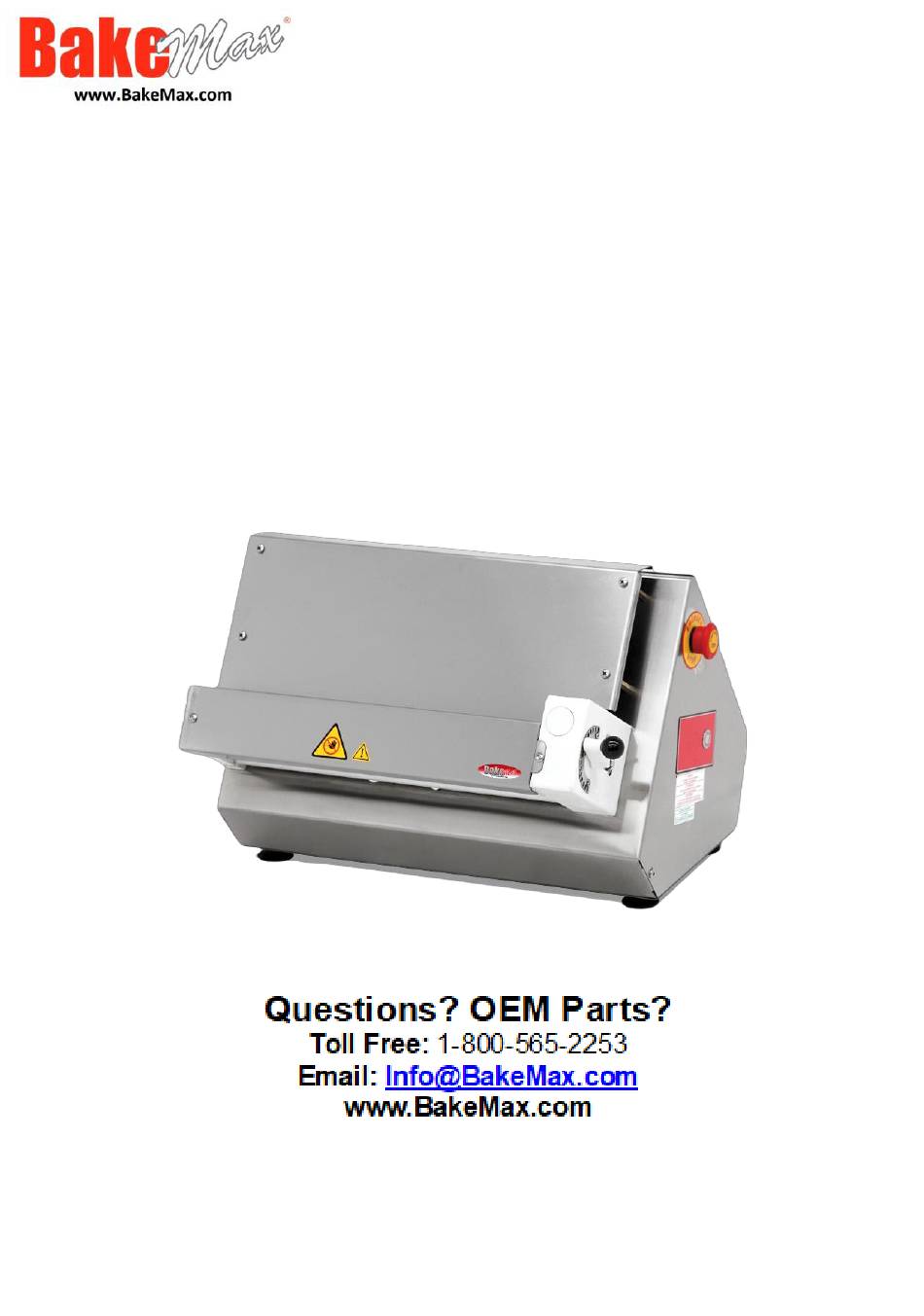

  • Page 1 BakeMax BMHA04 18” Single Pass Dough Sheeter Operations Manual...

  • Page 2: Warning & Safety

    Warning & Safety PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT INJURY OR DAMAGE TO THE PRODUCT BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment.

  • Page 3: General Information

    GENERAL INFORMATION READ INSTRUCTIONS CAREFULLY BEFORE OPERATING. WRONG ASSEMBLY AND / OR MAKING CHANGES MAY CAUSE DAMAGE TO EQUIPMENT OR CAUSE BODILY INJURY. ANY INTENDED DAMAGE, THE NEGLECT TO FOLLOW INSTRUCTIONS AND REGULATIONS OR WRONG CONNECTIONS ARE NOT OUR RESPONSIBILITY. UNAUTHORIZED INTERFERENCE WITH THE DEVICE WILL VOID THE PRODUCT WARRANTY.

  • Page 4: Important Warning

    Contact your local authorized service agent for service or required maintenance. Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service. Model no. BMHA04 ………………………………. Serial no. ……………………………….
  • Page 5 One pastry opening machine. Only for pizza, bread etc. doughs. Product Packaged Model Electrical Width Depth Height Weight Weight 110V / 2.5A / 370W 22 kg 27kg BMHA04 24.39 " 15.67" 14.4" 60Hz / Nema 5-15P 48.5 lbs. 60 lbs.
  • Page 6 How to Operate your Dough Sheeter How to Use • Before operating the Sheeter wipe it down with Damp Cloth and then a Dry Cloth and make sure the Sheeter is Dry. • On the side of Roller Block (Right Side) there is a Black Round Knob to set Roller Thickness.
  • Page 7 Cleaning NOTE: To ensure the best quality, longevity, and warranty status, these units should be cleaned after each use. 1. Ensure the unit is turned off and unplugged. 2. Clean all flour and dough off the unit with a soft brush. 3.
  • Page 8 6. Turn thickness adjustment handle to maximum thickness to allow for easy cleaning access. 7. Clean the machine and parts carefully using a soft damp cloth or sponge. 8. Rinse thoroughly REMOVABLE parts ONLY and dry all parts. 9. Reassembly is reverse of above steps.
  • Page 9 Check that you are getting power at the plug & at machine – check breakers. DEVICE Loose Wire Connection NOT WORKING Emergency Stop Button Not Pulled Out or Defective ON/OFF BUTTON not working. Contactor problem or problem with Motor If the Rollers stop turning check Belt and Belt Tension, check Gears ROLLERS STOPPED Check Thickness Control Settings to see if Thickness...
  • Page 10 Part Description Factory # 15*32*9 BEARING (6002ZZ) M.RLM-NRM-002 CONICAL GEAR SHORT M.MON-DSL-033 SEGMAN 471 ERS.B-SEG-SYH-010 KAMA 5x5x15 M.KAM-5*5*15 SHANZUMAN ALUMINIUM (128x65x80H) YMH-ERS.HA-KS-0021 UPPER AND LOWER ROLL COVER SHEET YSC-ERS.HA-LZ-0089 CONICAL GEAR LONG M.MON-DSL-032 KAMA 5x5x10 M.KAM-5*5*10 FRONT BALL BEARING M.ENJ-ERS-PLS-HA-014 CONICAL GEAR PLASTIC BUSHING M.ENJ-ERS-PLS-HA-015 35X47X7 (6807 2RS) BEARING...

  • Page 12: Warranty And Service

    Warranty & Service BakeMax provides a 1-Year Limited Parts and Labor warranty on most items, there are select items which carry a Limited 2-Year Warranty. Extended Warranty is available on some products. Please contact us for details. The Warranty is not transferable and is limited to original installation of equipment sold by BakeMax for the original user.
