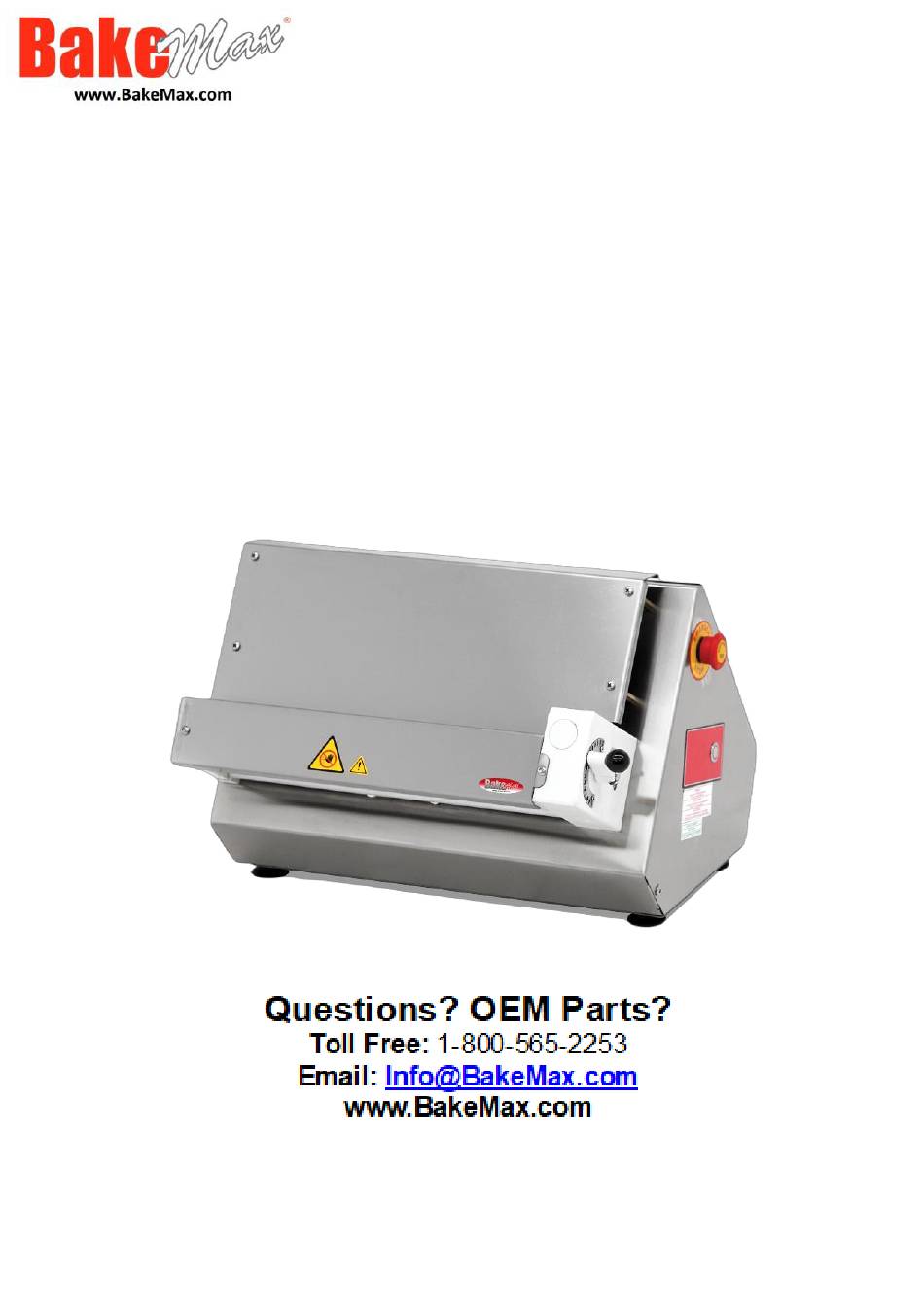

- Page 1 HAMUR AÇMA MAKİNELERİ BakeMax BMHA05 12” Single Pass Dough Sheeter Operations Manual...
-
Page 2: Warning & Safety
Warning & Safety HAMUR AÇMA MAKİNELERİ PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT INJURY OR DAMAGE TO THE PRODUCT BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. -
Page 3: General Information
HAMUR AÇMA MAKİNELERİ GENERAL INFORMATION READ INSTRUCTIONS CAREFULLY BEFORE OPERATING. WRONG ASSEMBLY AND / OR MAKING CHANGES MAY CAUSE DAMAGE TO EQUIPMENT OR CAUSE BODILY INJURY. ANY INTENDED DAMAGE, THE NEGLECT TO FOLLOW INSTRUCTIONS AND REGULATIONS OR WRONG CONNECTIONS ARE NOT OUR RESPONSIBILITY. - Page 4 Contact your local authorized service agent for service or required maintenance. Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service. Model Number BMHA05 ………………………………. Serial Number ……………………………….
- Page 5 One pastry opening machine. Only use pizza, bread etc. doughs. Product Packaged Model # Electrical Width Depth Height Weight Weight 447.5mm 397.8mm 366.8mm 19 kg 24 kg BMHA05 110V / 2.5A / 370W / Nema 5-15P 17.62" 15.66" 14.44" 41.8 lbs. 53 lbs.
- Page 6 Dough Rolling Machines How to Operate How to Use • Before operating the Sheeter wipe it down with Damp Cloth and then a Dry Cloth and make sure the Sheeter is Dry. • On the side of Roller Block (Right Side) there is a Black Round Knob to set Roller Thickness.
-
Page 7: Cleaning And Care
Dough Rolling Machines CLEANING AND CARE NOTE: To ensure the best quality, longevity, and warranty status, these units should be cleaned after each use. 1. Ensure the unit is turned off and unplugged. 2. Clean all flour and dough off the unit with a soft brush. 3. - Page 8 Dough Rolling Machines 6. Turn thickness adjustment handle to maximum thickness to allow for easy cleaning access. 7. Clean the machine and parts carefully using a Soft Damp Cloth or Sponge. 8. Rinse thoroughly in sink (Removable Parts Only) and Dry all parts. 9.
- Page 9 Dough Rolling Machines Check that you are getting power at the plug & at machine – check breakers. DEVICE Loose Wire Connection NOT WORKING Emergency Stop Button Not Pulled Out ON/OFF button working and working not working control. Contactor problem Device rollers stopped during stop doing sheeting, Check Belt Tension ROLLERS and check to see if nothing is jamming operation...
- Page 10 Dough Rolling Machines Part Description Factory # 15*32*9 BEARING (6002ZZ) M.RLM-NRM-002 CONICAL GEAR SHORT M.MON-DSL-033 SEGMAN 471 ERS.B-SEG-SYH-010 KAMA 5x5x15 M.KAM-5*5*15 SHANZUMAN ALUMINIUM (128x65x80H) YMH-ERS.HA-KS-0021 UPPER AND LOWER ROLL COVER SHEET YSC-ERS.HA-LZ-0089 CONICAL GEAR LONG M.MON-DSL-032 KAMA 5x5x10 M.KAM-5*5*10 CONICAL THREADED PLASTIC BUSHING M.ENJ.ERS-PLS-HA-015 35X47X7 (6807 2RS) BEARING M.RLM-NRM-052...
-
Page 11: Electric Circuit Diagram
Dough Rolling Machines ELECTRIC CIRCUIT DIAGRAM... -
Page 12: Warranty And Service
Warranty & Service Dough Rolling Machines BakeMax provides a 1-Year Limited Parts and Labor warranty on most items, there are select items which carry a Limited 2-Year Warranty. Extended Warranty is available on some products. Please contact us for details. The Warranty is not transferable and is limited to original installation of equipment sold by BakeMax for the original user.
