OWNER'S MANUAL
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cali76 and is the answer not in the manual?

Questions and answers

Related Manuals for Origin Effects Cali76

Summary of Contents for Origin Effects Cali76

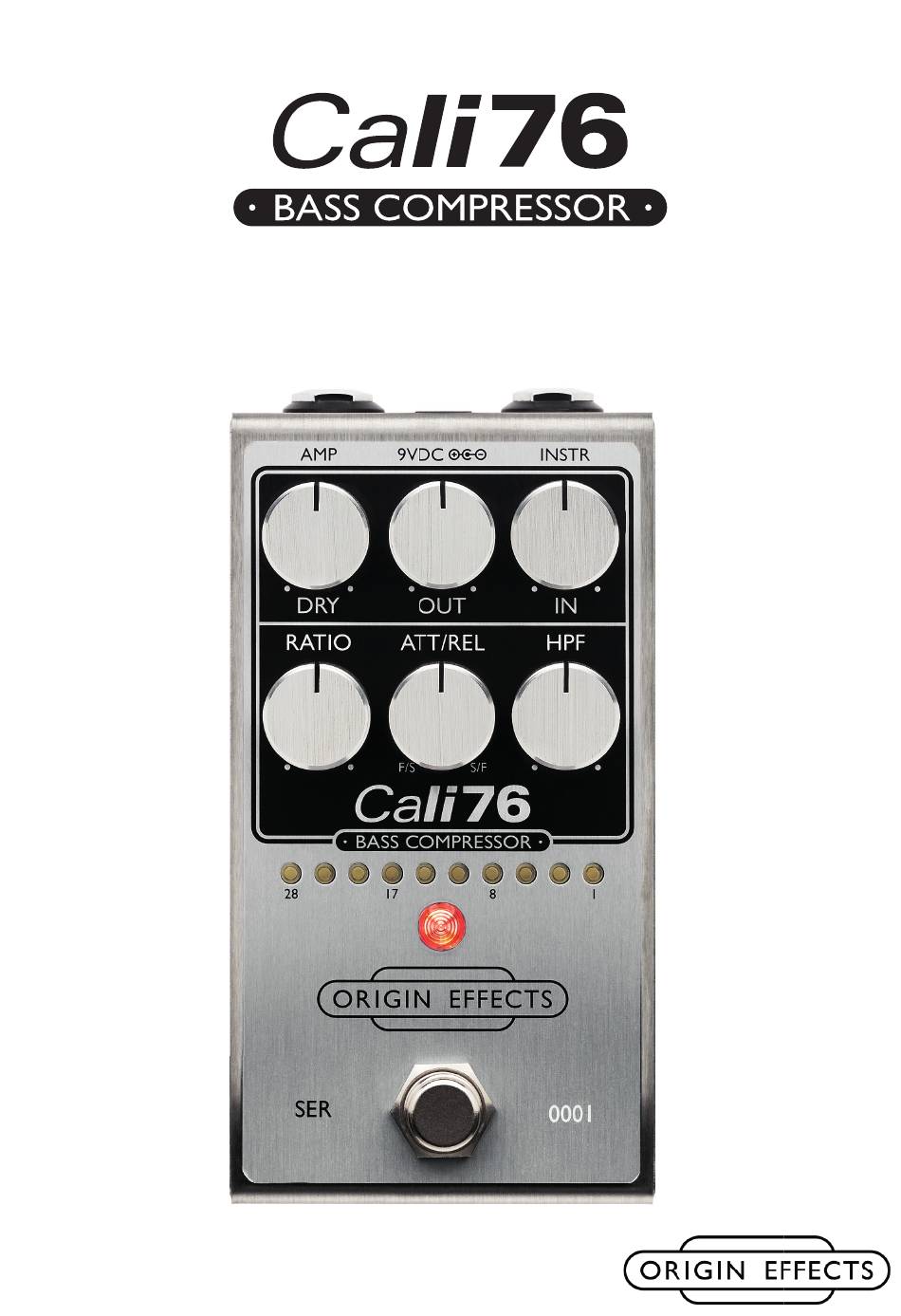

  • Page 1 OWNER’S MANUAL Version 1.0...
  • Page 2 ORIGIN EFFECTS is a trademark of Origin Effects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin Effects Limited and is a registered trademark in the United States, United Kingdom and China.

  • Page 3: Table Of Contents

    Introducing the CALI76 BASS Compressor ........

  • Page 4: Introducing The Cali76 Bass Compressor

    1960s, and the Cali76 Bass Compressor makes these industry-standard tones available to the modern bassist using all-analogue circuitry. With a full complement of studio-style controls and the ability dial in parallel compression, the Cali76 Bass Compressor does it all, from transparent transient control to flat-out limiting and monster sustain. A 10-LED bar graph meter allows accurate monitoring of gain reduction and the 9VDC input voltage is increased inter- nally, resulting in exceptional clarity and enough headroom for use with line level signals.

  • Page 5: Connecting The Cali76 Bass Compressor

    IN: This control sets the signal level into the compression circuit, with higher levels resulting in more compres- sion. Like an 1176 , the Cali76 Bass Compressor has a fi xed threshold (the level above which compression ® is applied). Increasing the IN control pushes more of your signal over that threshold, meaning that a greater portion of the signal is compressed.
  • Page 6 The HPF knob ranges from 0 Hz to 400 Hz. Metering: The Cali76 Bass Compressor is equipped with a 10-LED bar graph gain reduction meter, giving an accurate visual indication of what the compression circuit is doing. Once the signal exceeds the fi xed threshold, the LEDs will begin to illuminate.

  • Page 7: On/ Off Operation

    NOTE: The Cali76 Bass Compressor uses buffered bypass to achieve consistent tone and low-noise operation. Any pedals that do not work well after a buffer should be placed before the Cali76, such as some vintage Fuzz and Wah pedals.

  • Page 8: Line Level Signals

    Line Level Signals: The Cali76 Bass Compressor can also be used with line level signals. The 9V input voltage is increased internally to 24V, resulting in impressive headroom. This means that the Cali76 Bass Compressor can be used with key- boards, drum machines and as studio outboard.

  • Page 9: Sample Settings

    Origin Eff ects Cali76 Bass Compressor Sample Settings PARALLEL COMPRESSION DYNAMIC CONTROL Parallel compression is a popular studio-derived This setting provides a natural compression, balanc- technique that blends dry signal in parallel with a ing dynamics between various playing techniques. A heavily compressed tone.

  • Page 10: Appendix A: Physical Specification

    Origin Effects Cali76 Bass Compressor Appendix A: Physical Specification Measurement Unboxed Boxed Weight 553g (19.5oz) 661g (23.3oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value Input impedance 1M Ω...

  • Page 11: Appendix D: Safety Notices

    (including amplifi ers) that produce heat. Refer all servicing to qualifi ed service personnel. When using an external power supply, use only attachments/accessories specifi ed by Origin Effects. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

  • Page 12: Appendix E: Warranty

    Appendix E: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
