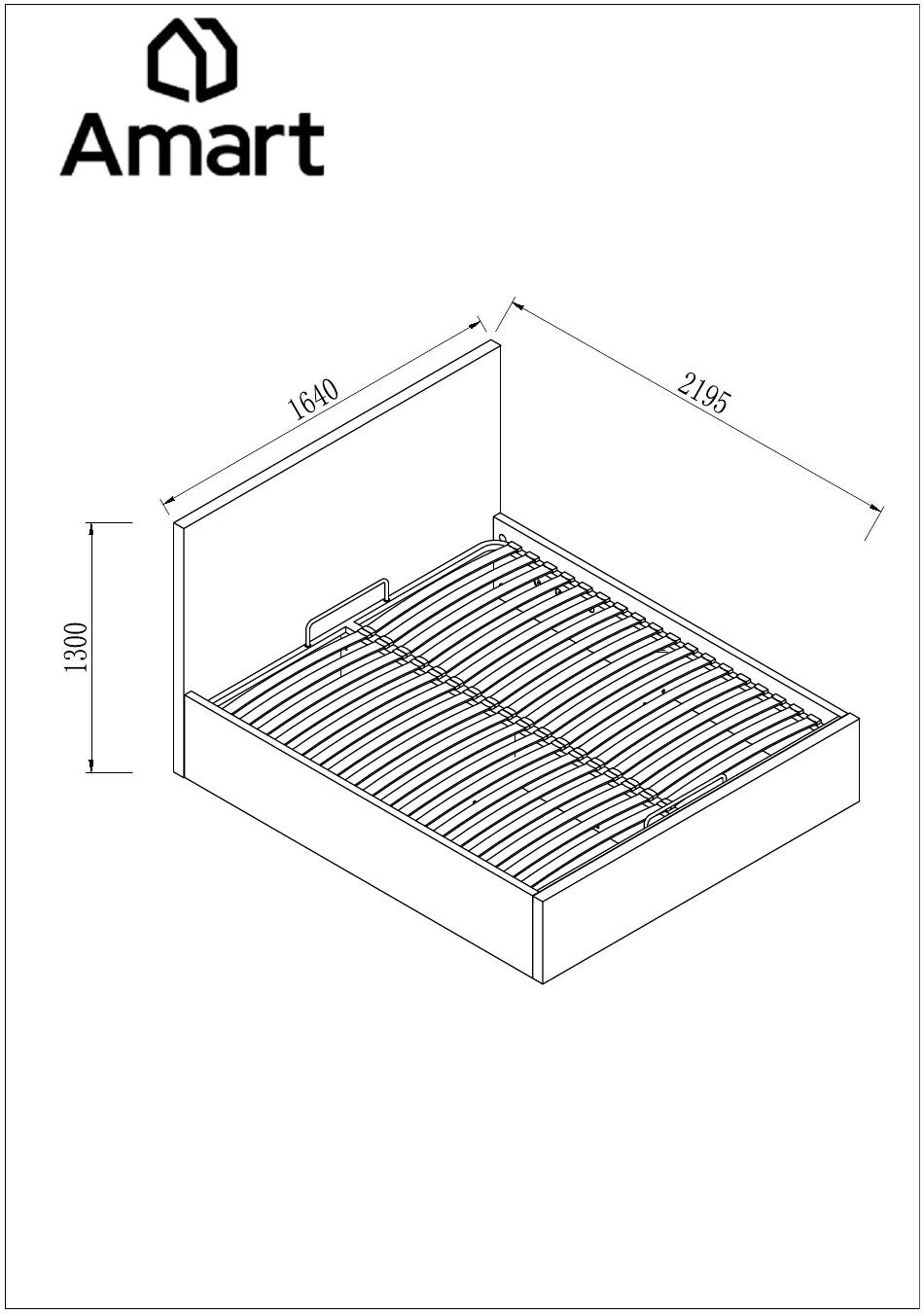

ASSEMBLY INSTRUCTION
FANCIS QUEEN LIFT BED
ITEM CODE 82303
Imported by Amart Furniture Pty Ltd.Qld.Brisbane Australia.
For any assistance with assembly or for missing parts please phone Amart Furniture
Customer Service Free call 1800 351 084
82303
1-13

Advertisement

loading
Need help?

Need help?

Do you have a question about the FANCIS 82303 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amart Furniture FANCIS 82303

  • Page 1 ASSEMBLY INSTRUCTION FANCIS QUEEN LIFT BED ITEM CODE 82303 Imported by Amart Furniture Pty Ltd.Qld.Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture Customer Service Free call 1800 351 084 82303 1-13...
  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean,level.spacious assembly area.Avoid hard surfaces that may damage the product 2. Take care when lifting.Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly. 4.
  • Page 3 82303 3-13...
  • Page 4 82303 4-13...
  • Page 5: Parts List

    PARTS LIST 82303 5-13...
  • Page 6 A.Cam lock and Cam pin D.Bolt M8x85 Screw F.Hexagonal Nuts 8x30 Half Round Nuts G.Washer 15X35 16PCS 6PCS 8PCS 8PCS 30PCS 8PCS K.Wrench M14 H.Washer I.Cover J.Wrench M10 L.Hex key M4 M.Hex key M5 N.Glue 1PCE 1PCE 1PCE 1PCE 8PCS 8PCS 1PCE P.Bolt M6x50...
  • Page 7 STEP 1 Use Phillips Head Screw to insert the Cam Pin(A) to the Headboard(C1) and Left side Panel(C2) and Right side Panel(C3) and Footboard(C4) and Connect Panel(C8&C9). And insert the Dowel(B) to the Top Panel(C1) and Left side Panel(C2) and Right side Panel(C3) and Footboard(C4).And then use Phillips Head Screw to attach the Support Panel(C10) to the Footboard(C4) Attach thePretect Foam(Q) in the Headboard(C1) and with Screw(C).
  • Page 8 STEP 3 Attach the Connect Panel(C8&C9) to the Middle Support Panel(C5&C6).And use Phillips Head Screw to turn Cam loc(A) to lock into the head of Cam Pin(A). STEP 4 Attach the Left side Panel(C2) and Right side Panel(C3) to the Connect Panel(C7&C8&C9) and Support Panel(C5).
  • Page 9 STEP 5 Attach Footboard(C4) to the Left side Panel(C2) and Right side Panel(C3) and Support Panel(C6).And usePhillips Head Screw to turn Cam loc(A) to lock into the head of Cam Pin(A). STEP 6 Use Wrench(J) to tighten the Headboard to the Left side Panel(C2) and Right side Panel(C3) and Support Panel(C6) with Half Round Nuts(E) and Hexagonal Nuts(F).
  • Page 10 STEP 7 Put the Bottom Panel(C11) to the Bed body. STEP 8 Use Hex Key(M) to attach the Gas Lift(C14) to the Left side Panel(C2) and Right side Panel(C3) with Bolt(N) and Hexagonal Nuts(Q). 82303 10-13...
  • Page 11 STEP 9 Use the Hex Key(L) to attach the Handle(C13) to the Slats(C12) with Washer(G) and Bolt(O). STEP 10 Use Hex Key(L) and Wrench(J) to attach Slats(C12) and Gas Lift(C14) with Bolt(O) and Washer(G). 82303 11-13...
  • Page 12 SAFETY CAUTION WARNING Please always lock the safety lock mechanism while the bed base is in lifting positionUnlock it before you want to put the bed base back into normal position. 82303 12-13...
  • Page 13 Assembly is complete WARNING PINCH HAZARD: BEWARE OF YOUR FINGERS WHEN LIFTING AND LOWERING THE MECHANISM 82303 13-13...
