ASSEMBLY INSTRUCTION

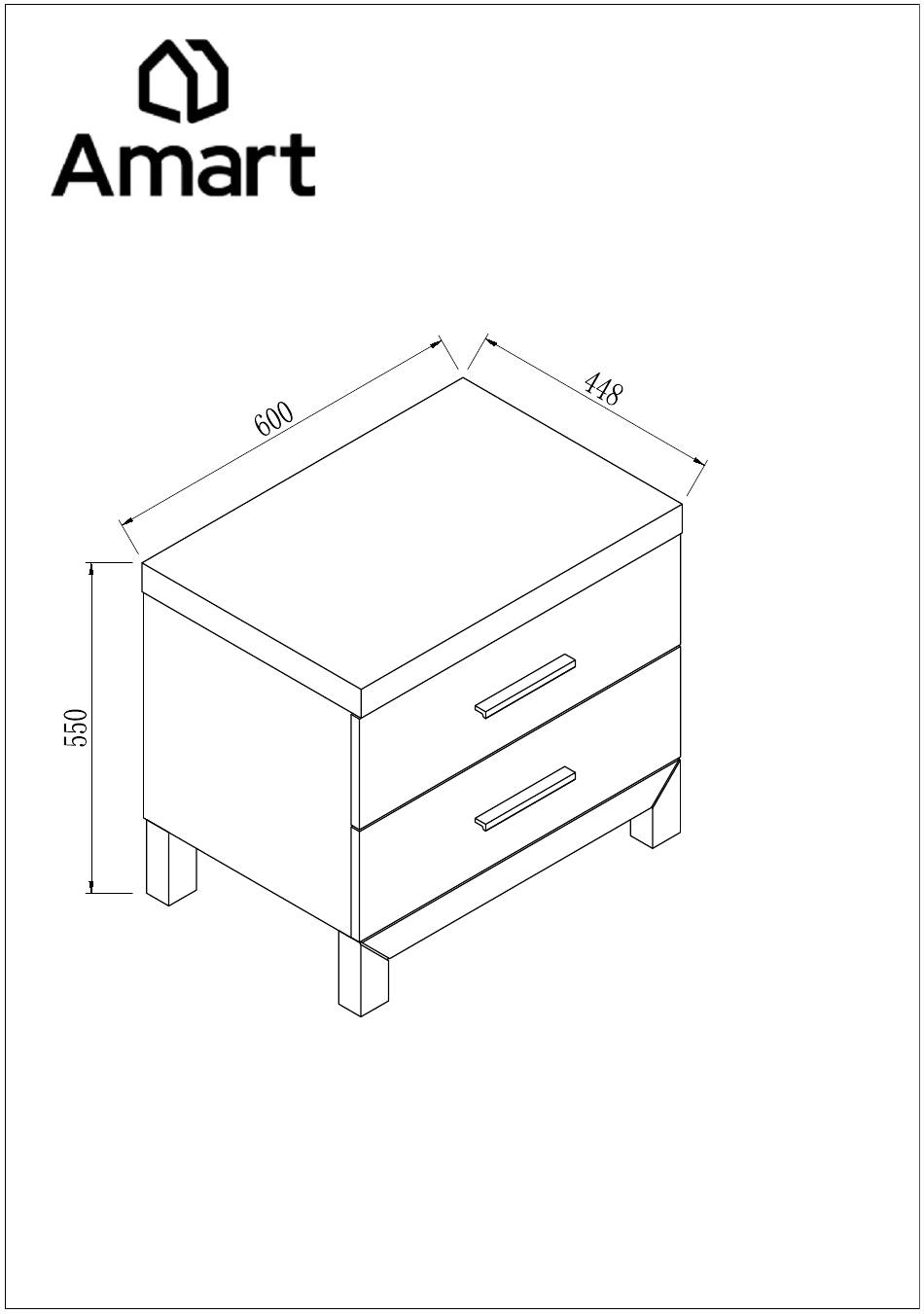

FRANCIS BEDSIDE TABLE
ITEM CODE 82302
Imported by Amart Furniture Pty Ltd.Qld.Brisbane Australia.
For any assistance with assembly or for missing parts please phone Amart Furniture
Customer Service Free call 1800 351 084
82302
1-10

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRANCIS 82302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amart Furniture FRANCIS 82302

  • Page 1 ASSEMBLY INSTRUCTION FRANCIS BEDSIDE TABLE ITEM CODE 82302 Imported by Amart Furniture Pty Ltd.Qld.Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture Customer Service Free call 1800 351 084 82302 1-10...
  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean,level.spacious assembly area.Avoid hard surfaces that may damage the product 2. Take care when lifting.Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly. 4.
  • Page 3: Parts List

    PARTS LIST A.Cam lock and Cam pin E.Boit F.Connector G.Screw 8x30 3.5x30 M4x20 3.5x12 15X35 18x16x10 12PCS 8PCS 4PCE 4PCS 4PCS 16PCS H.Bolt M6x35 I.Washer J.Hex key M4 K.Runner 250mm L.Protect foam M.GLUE N.Protect Foam 35X5mm 6PCS 6PCS 1PCE 4PCS 1PCE 4PCS 4PCS...
  • Page 4 STEP 1 Runner slide separately(K=K1+K2) Carefully pull out the runner slide(K2)and press plastic clip to fully separate runner slide as diagram shown STEP 2 Insert the Cam Pin (A) and Dowel(B) to Panel (C1),(C2),(C3),(C4),(C7). Attach the Runner(K1) to the Panel(C3),(C4) with Screw(C). 82302 4-10...
  • Page 5 STEP 3 Attach Panel(C3),(C4) to Panel(C2). And turn Cam lock(A ) to lock into the head of Cam Pin(A). STEP 4 Use Hex key(J) to attach the Leg(C6) to Panel(C2) with the Bolt(H) and Washer(I). Attach the Protect Foam(N) in the Leg(C6). 82302 5-10...
  • Page 6 STEP 5 Insert the Back Panel(C5) to the groove. STEP 6 Attach Panel(C1) to Panel(C3),(C4).And turn Cam lock(A) to lock into the head of Cam Pin(A). 82302 6-10...
  • Page 7 STEP 7 Attach the Connector(F) to back corner with the Screw(G). STEP 8 Attach Panel (C8),(C9) to Panel(C7).Turn Cam lock(A) to lock into the head of Cam Pin(A). Insert Panel(C11) to the groove. Attach Panel(C10),(C8),(C9) with Screw(D). 82302 7-10...
  • Page 8 STEP 9 Attach to Runner(K2) to Panel(C8),(C9) with Screw(C).And attach the Handle(C12) to Panel(C7) with Bolt(E). STEP 10 Insert the drawers into the body. 82302 8-10...
  • Page 9 Assembly is complete 82302 9-10...
  • Page 10 SAFETY BRACKETS INSTRUCTIONS This furniture poses a tipping risk and as such must be secured to a wall using the provided tipping kit. 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud.
