Summary of Contents for Permobil Resten Select

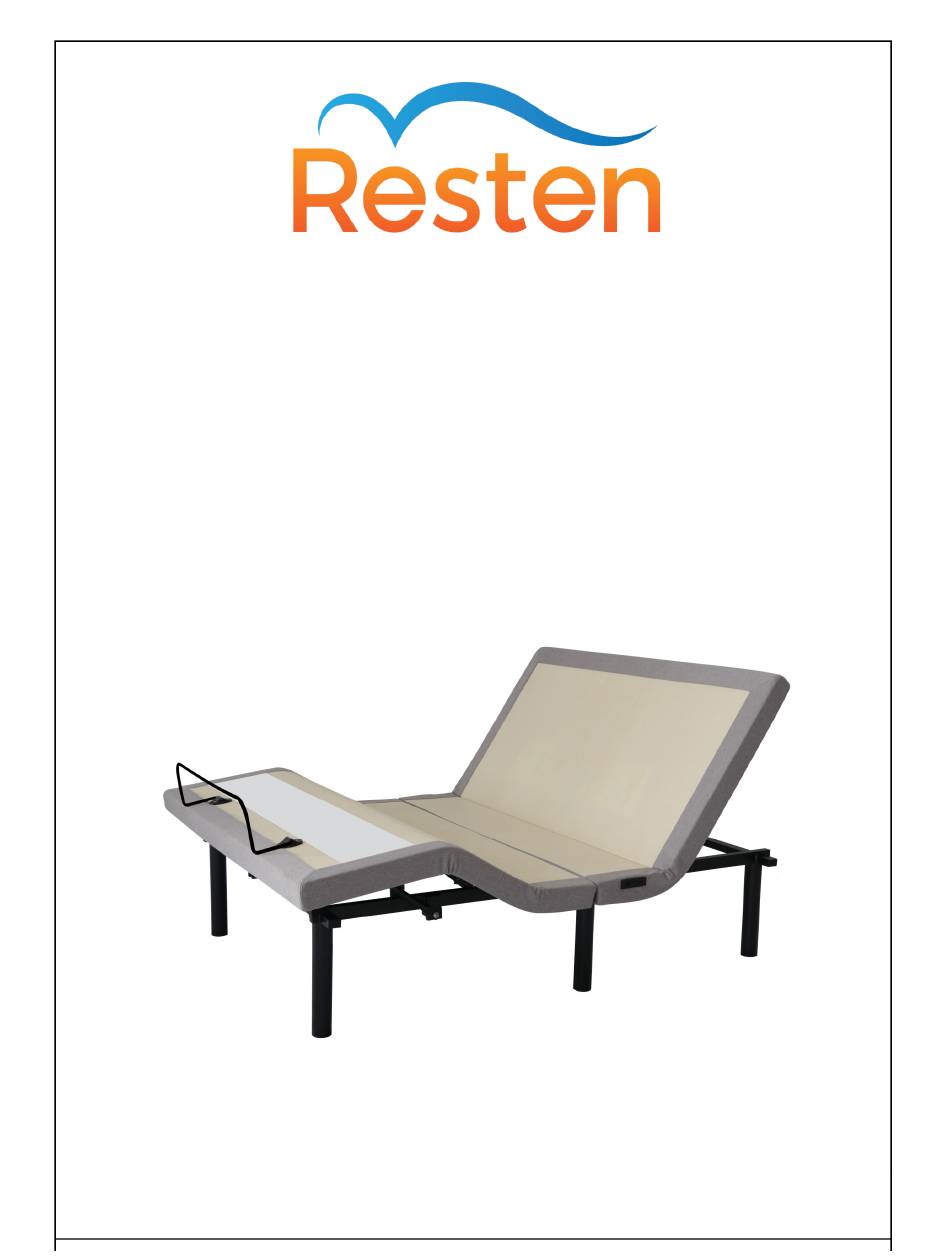

- Page 1 USER'S MANUAL Permobil Resten Select...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions …………………………………………………………………………..………… Parts List ……………………………………………………………………………………………… Under Bed View ……………………………………………………………………………………… Electronics Overview ….……………………………………………………………………………… Installation …………………………………………………………………………………………….. Wireless Remote Control …………………………………………………………………………… USB Charge Use Guide ….………………………………………………………………………….. Remote Pairing ………………………………………………………………………………..……… Memory Setting ………………………………………………………………………………..……… Setting Up Two Bases ………………………………………………………………………………… Headboard Bracket Installation (Optional)……………………………………………..………..……... -
Page 3: Safety Instructions
Safety Instructions Safety Disclaimer Thank you for purchasing a Resten adjustable bed base. For your safety, please read all instructions carefully before using this adjustable base. Save these instructions for future reference. Attention: Keep the base unplugged from the electrical outlet before operating any part of the base. To prevent the risk of electric shock, always unplug the base before cleaning. -
Page 4: Product Ratings
Safety Instructions Product Ratings: The lift motors are not designed to operate continuously for more than two (2) minutes in an eighteen (18) minutes time period. Attempting to circumvent or exceed this rating will shorten the life expectancy of the product and may void the warranty. -
Page 5: Under Bed View
Parts List Ensure you have received all the parts listed below before discarding the packing materials. Parts List: A) Wireless Remote Control and AAA batteries [2] B) legs and Washers [6] C) Mattress Retainer [1] D) Power Supply [1] E) Power Cord [1] F) Headboard Bracket [2] (Optional) G) Headboard T-Bar [2] (Optional) H) Large Washers [2] (Optional) -
Page 6: Electronics Overview
Under Bed View Vibrator Head Motor LED Light Control Box Foot Motor Vibrator Electronics Overview... -
Page 7: Installation
Electronics Overview Not to Scale, Only for illustration purposes. Read all illustrations and instructions before beginning the installation process. Remote Installation... - Page 8 Installation STEP 1: Remove packing materials Put the bed base in a desired place with the bottom of the box facing up. Remove box cover, take out all of the packing materials and put aside. Make sure not to puncture the bed with any sharp objects.
-
Page 9: Wireless Remote Control
Installation STEP 5: Remote After the base is connected to the power supply, install two AAA batteries into the remote battery compartment. See pages 9 and 10 to learn how to operate the remote. STEP 6: Install mattress retainer Locate the mattress retainer as shown below [1)]; Insert the mattress retainer into the hooks at the foot of the bed as shown [2)]. - Page 10 Wireless Remote Control Remote Overview Head Up Foot Up Head Down Foot Down Preset Anti- Preset Zero snore Position Gravity Position Preset TV Preset Memory Position Position Massage Mode Flat sets Foot Massage Head Massage Intensity Intensity Swift Function Underneath Stop Massage LED Light Wireless Remote Control...
- Page 11 Wireless Remote Control Adjusting Features The HEAD UP/DOWN button raises/lowers the head section of the base to a desired position. The FOOT UP/DOWN button raises/lowers the foot section of the base to a desired position. One touch ANTI SNORE button presets the user to a desired anti- snore position.
-
Page 12: Usb Charge Use Guide
Adjusting Features The left + button increases or decreases the head massage intensities, there are three levels. The default massage will stop automatically after 10 minutes. The massage model switch button, there are three massage models. Press and hold it for three (3) seconds to stop massage function. -
Page 13: Remote Pairing
USB Charge Guide There are four USB Type-A ports (two on either side of the bed base). After connecting the power supply, you may use the USB ports to charge your mobile devices. ○ Limitations The USB ports have a total load capacity of 5V 2A. They should only be used to charge mobile phone devices. The USB ports are not designed to charge larger devices such as tablets, laptops or computers and do not accommodate super charging cables. -
Page 14: Memory Setting
Attention: All bed bases are set to their individual remote. If a signal is lost, please read below for how to fix the remote pairing. STEP 1: Press and hold the connect button on the control box until the white indication light starts flashing. -
Page 15: Setting Up Two Bases
Attention: All preset positions (including "TV", "ZG" buttons) except "M" button are set before leaving the factory. Follow below steps to reset your desired positions or proceed to page 14. STEP 1: Ensure the base is connected to the power supply correctly and the remote control works properly. - Page 16 Attention: All bases are set to the individual remotes. You need to pair your remote if you need the remote controls the second base or one remote controls two bases simultaneously. If using only one base normally, proceed to page 15. STEP 1: ○...
-
Page 17: Troubleshooting
STEP 1: Open the headboard bracket accessory package and confirm that all the pieces listed below are included: Headboard Brackets [2] Headboard Connecting Components [2] Short Bolts (8) Long Bolts M8 [4] Large Washers [2] Small Washers [12] Hex Key [1] Long Bolts M10 [2] STEP 2: Install the headboard bracket (F) using one long bolt... - Page 18 If one or more functions on the bed base have stopped operating, please check the bed as follow: ◎Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base. ◎Check to see if the bed base is connected to the power supply correctly.
