INSTRUCTION MANUAL
INDEX
PANIFY
PANIFY 2
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
CA3006
CA3050
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ARRI CLAYPAKY PANIFY
Summary of Contents for ARRI CLAYPAKY PANIFY
-
Page 1: Table Of Contents

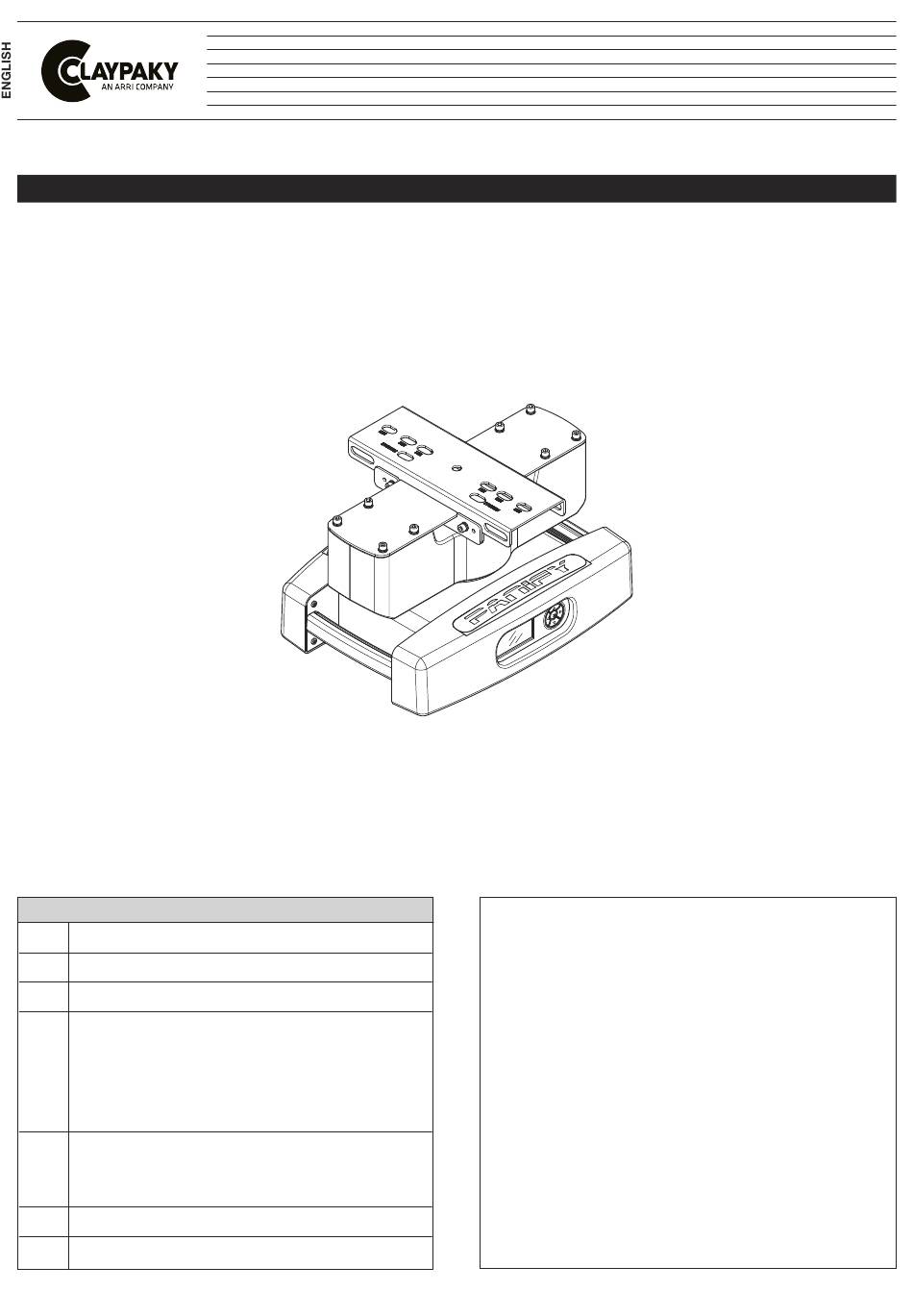

PANIFY CA3006 PANIFY 2 CA3050 INSTRUCTION MANUAL INDEX Congratulations on choosing a Claypaky product! Page Contents We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up... -
Page 2: Safety Information
1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: FIS026 - Safety Information Panify Ref: FIS039 - Safety Information Panify 2 INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link:... -
Page 3: Unpacking And Preparation
2. UNPACKING AND PREPARATION 2 x 183102/805 DMX cable POWER cable Ethernet cable (only for Panify2) Packing contents - Fig. 1 PANIFY & PANIFY2... -
Page 4: Installation And Start-Up
3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the fixture - Fig. 2 The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the fixture is positioned on the floor, the provided safety cables must be installed (additional safety cables cod. 105041/003 &... - Page 5 DMX THRU Power Power Fuse DMX IN DMX THRU Ethernet Power Display User buttons (5 pin) (5 pin) (5 pin) ONLY FOR PANIFY2 Ethernet THRU DMX THRU Power Power Fuse DMX IN DMX THRU Ethernet Ethernet Power (5 pin) (5 pin) (5 pin) THRU Control panel - Fig.
-
Page 6: Connecting To Manis Supply
3.2 Connecting to mains supply Connecting and disconnecting power cable - Fig. 4 Mains Connecting to the mains supply - Fig. 5 PANIFY & PANIFY2... - Page 7 Connecting to the control signal line (DMX) - Fig. 6 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female connectors.
- Page 8 Fixture-Panify connections- Fig. 7 PANIFY & PANIFY2...
- Page 9 ONLY FOR PANIFY2 Panify 2 DMX THRU (You have to connect the fixture associated to the Panify) Panify 2 MAINS OUT (You have to connect the fixture associated to the Panify) Panify 2 Ethernet THRU (You have to connect the fixture associated to the Panify) Panify 2 MAINS IN Panify 2 Ethernet THRU...
-
Page 10: Switching On The Fixture And Basic Setup
3.4 Switching on the fixture and basic SetUp Dmx Address Switching on the fixture - Fig. 9 Switch-on the fixture. The fixture starts resetting the effects. At the same time, the following information scrolls on the display: Panify Dmx Address xxx The control panel (Fig. - Page 11 Functions of the buttons - Using the menu Confirms the displayed value, or activates the displayed function, or enters the successive menu. Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu. DOWN Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu. Return to the top level LEFT Return to the top level...
-
Page 12: Maintenance
4. MAINTENANCE 4.1 Opening the covers WARNING - IP66 fixture - Failure to completely remove power from fixture prior to servicing can lead to serious injury or death. For additonal service information please contact service@claypaky.it IMPORTANT To maintain IP66 rating each cover has rubber gasket on it. If any rubber gasket is lost or damaged, it must be replaced by an original equipment (OE) part. -
Page 13: Battery Removal
4.2 - Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. PANIFY & PANIFY2... -
Page 14: Dimensions
5. DIMENSIONS (15.16") 252.8 (9.95") 390.8 (15.39") (11.61") 6. CAUSE AND SOLUTION OF PROBLEMS THE FIXTURE WILL NOT SWITCH ON PROBLEMS ELECTRONICS NON-OPERATIONAL POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Signal transmission cable faulty or disconnected. Replace the cables. - Page 15 PANIFY & PANIFY2...
