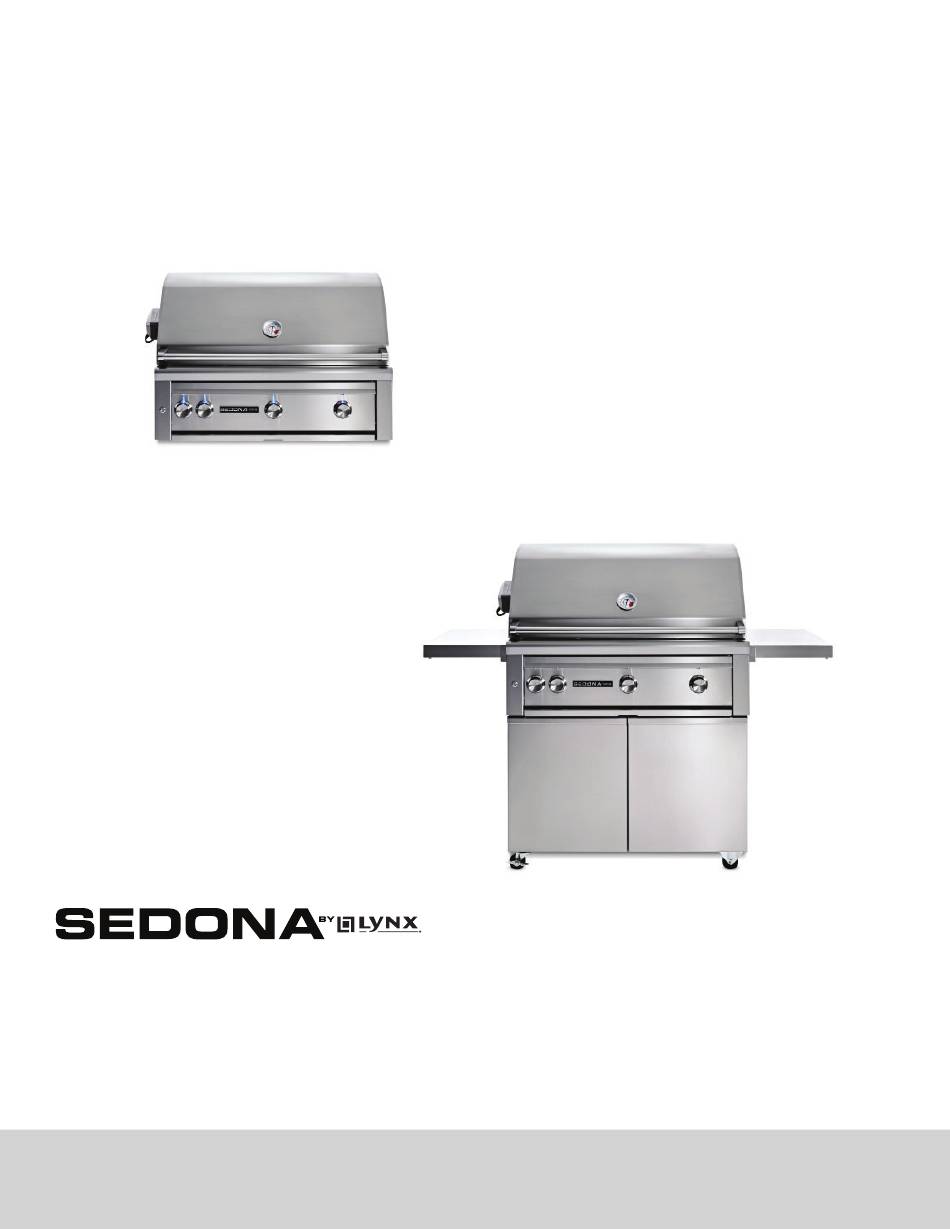

- Page 1 User / Install Guide Outdoor Gas Grills L500 L600 L700 L501 L601 L701...
- Page 2 THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA 1.6 To obtain replacement parts or service contact: latest edition and has been tested and approved by Intertek. Lynx Grills 62201 Hwy 82 West Greenwood, Mississippi 38930 Service: (888) 289-5969...
-
Page 3: If You Smell Gas
WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of: Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. -
Page 4: State Of Massachusetts
WARNINGS WARNING Always maintain the required clearances from combustible construction as detailed. The grill is designed for outdoor use only. Never use in a garage, building, shed, breezeway or other enclosed area. This grill shall not be used under any unprotected overhead combustible construction. 2. -
Page 5: Table Of Contents
TABLE OF CONTENTS BEFORE YOU START If Shipment Arrives Damaged Important Notes SPECIFICATIONS & INSTALLATION UNPACKING & ASSEMBLY REMOVAL OF GRILL FROM CART GAS CONNECTIONS Natural Gas LP Gas Gas Conversion Kits ELECTRICAL CONNECTIONS FINAL CHECKS Leak Testing CHECKLIST BEFORE EACH USE A MESSAGE TO OUR CUSTOMERS IMPORTANT SAFETY PRECAUTIONS GRILLING IN WINDY CONDITIONS... -
Page 6: Before You Start
BEFORE YOU START WARNING Installation into a combustible enclosure requires an insulated jacket accessory. DO NOT REMOVE BRACKET OR INSTALL UNIT without use of the insulated jacket. Doing so may result in a fi re, injury or property damage. Bracket must be removed to complete install with insulated jacket. Insulated jackets may be ordered at parts@middlebyresidential.com or phone 888-845-4641 press 1. -
Page 7: Built-In Installations
If the grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary and is available only This built-in grill is designed for easy installation into from your Lynx dealer. Insulated jackets have been designed masonry enclosures. and tested specifi cally for your grill. -
Page 8: Specifications & Installation
SPECIFICATIONS & INSTALLATION The guides, measurements and dimensions detailed below are designated to assist you with planning your outdoor kitchen. NOTE: Due to continuing product innovation, specifi cations are subject to change without notice. IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifi cations and the proper installation of your outdoor kitchen equipment. -
Page 9: Model-Specific Btu Outputs & Max. Runs For Appliances
SPECIFICATIONS & INSTALLATION MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES MODEL-SPECIFIC BTU OUTPUTS MODEL TUBE BURNER ROTISSERIE PROSEAR TOTAL INPUT (Btu/HR) (Btu/HR) (Btu/HR) L500/L501PS 1 @ 23,000 1 @ 23,000 46,000 Btu/Hr L500/L501PSR 1 @ 23,000 1 @ 12,500 1 @ 23,000 58,500 Btu/Hr L600/L601PS... -
Page 10: Unpacking & Assembly
500 pounds. INTERIOR PACKING Lynx uses sturdy tie-down cables and straps to ensure your grill arrives at your home in the same condition that it left our WARNING: factory. -
Page 11: Removal Of Grill From Cart
REMOVAL OF GRILL FROM FREESTANDING CART WARNING: Before removal of grill, gas must be disconnected/removed from grill along with any additional gas piping. All proper safety equipment such as eye protection, gloves (cut resistant), and closed toe shoes must be worn during process to prevent any injury. 1. -
Page 12: Gas Connections
NATURAL GAS gas (NAT). It is critical that the gas you use matches that Lynx, LLC recommends that only qualifi ed professionals which the grill was set up for. You can verify that by checking perform the required plumbing on this product. -
Page 13: Lp Gas
GAS CONNECTIONS ...continued For freestanding units using natural gas, using a metal fl ex hose WARNING is recommended. Do not change the regulator/hose assembly or use This is available at your local hardware store or from your any other assembly than the one supplied with dealer. -
Page 14: Gas Conversion Kits
Insert the regulator inlet into the cylinder valve and turn the black coupler clockwise until the coupler is hand tight. Do Gas conversion kits are available from Lynx Grills to allow not over-tighten this connection. the grill to operate on either Natural gas or LPG. These kits To disconnect the coupler, fi... -
Page 15: Side Burner Installation
GAS CONNECTIONS ...continued NG AND BULK PROPANE CART INSTALLATION • Shut off the gas supply at the main valve. • Disconnect all plumbing (if already attached) from the grill the g g rill and the gas supply valve. • Remove all the fi ttings from the grill manifold. •... -
Page 16: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: ELECTRICAL GROUNDING • Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005. • Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance. •... -
Page 17: Final Checks
FINAL CHECKS LEAK TESTING LOW HEAT BURNER ADJUSTMENT FOR MAIN CERAMIC BURNERS AND TRIDENT™ BURNERS ONLY! DANGER! DO NOT ADJUST THE ROTISSERIE BURNER. To prevent fi re or explosion hazard, DO NOT The main ceramic burners and Trident™ burners on your grill smoke or allow any potential source of ignition feature an adjustable low setting. -
Page 18: Checklist Before Each Use
The appearance of the ProSear™ burner should be visually checked. For technical assistance call: The ceramic tiles should be uniformly Lynx Customer Care red to orange in appearance. There should be no lifting, fl uttering or lazy 888-289-5969 blue fl ames. Some food particles will show as yellow fl... -
Page 19: A Message To Our Customers
A MESSAGE TO OUR CUSTOMERS You’ve just joined a discriminating collection of amateur and professional chefs that take outdoor cooking to a new level. Your grill has been designed and built with meticulous attention to detail and it off ers some unique and powerful features. -
Page 20: Grilling In Windy Conditions
GRILLING IN WINDY CONDITIONS Outdoor grills create more heat than interior kitchen ranges. That’s how they sear and grill steaks and other foods. These high-performance burners require a constant, steady supply of fresh air to mix with the fuel. Your grill pulls air in through the front and vents hot gases out through the rear. -
Page 21: Pre-Grill Checklist
PRE-GRILL CHECKLIST BEFORE YOUR FIRST USE AT EACH NEW SEASON There are a few must-check safety precautions to con- At the start of each new grilling season you should remove sider before you use your grill. Please be sure that: the grilling racks and check the burners, venturis, orifi... -
Page 22: Electric Ignition
LIGHTING YOUR GRILL ELECTRIC IGNITION For the Rotisserie Burner: The rotisserie burner features a thermocouple sensor with a Before proceeding, make sure you have completed the “Be- safety valve that automatically shuts off the fl ow of gas if the fore Each Use”... -
Page 23: Basic Grilling
... infrared heat ... to create a higher searing temperature than Pre-heating your grill every time you use it is extremely what standard burners can achieve. Lynx Grills provides the important. Pre-heating allows the briquettes to properly heat Trident™ infrared burner. -
Page 24: Safety Precautions
USING THE PROSEAR™ BURNER HOW TO SEAR The Motor Install the motor by sliding it onto Searing locks in fl avor and juices while allowing the food’s the bracket as shown. outer surface to absorb smoke and food-born aromas produced when drippings are vaporized by the burner. The rotisserie motor bracket may be easily removed by turning the The result is a restaurant-style fi... -
Page 25: Cleaning Your Grill
USING THE ROTISSERIE BURNER ...continued With the food secured to the The Rotisserie Burner The Rotisserie Burner skewer slowly roll the skewer in the palms of your hands to check for balance. It should ro- tate smoothly. If you fi nd it has a heavy side, adjust where the To light the rotisserie infrared burner, fi... -
Page 26: Ceramic Briquettes
CLEANING YOUR GRILL ...continued SPECIAL NOTE FOR LOCATIONS NEAR POOLS AND COASTAL AREAS: The 304 stainless steel material used in the construction WARNING of the grill is highly rust resistant, however, chlorine in the air from swimming pools or the salt from sea air may cause DO NOT ALLOW EXCESS GREASE OR LIQUIDS TO surface rust to appear and even create some pitting if left on ACCUMULATE IN THE DRIP TRAY AS THIS MAY... -
Page 27: Main Burners
CLEANING YOUR GRILL ...continued BURNER PLACEMENT MAIN BURNERS Make sure the grill is completely cool before proceeding. Ensure that the gas supply is off and all control knobs are WARNING PROPER PLACEMENT OF EACH BURNER IS in the “OFF” position. CRITICAL. -
Page 28: Troubleshooting Your Grill
You If, after resetting the transformer and replacing bulbs, you should also see an electri- still do not have power, contact Lynx Customer Care. cal spark jump between all the ignition electrodes. If no clicking is heard, and... -
Page 29: Smell Of Gas While Cooking
Ensure that you are using a 4/11 appliance regulator supplied is out of level will cause erratic burner combustion and by Lynx and converted to LP gas. Also ensure that you do ineffi cient, uneven heating. A carpenter’s spirit level not have more than one regulator in line. - Page 30 POTENTIAL PROBLEMS ...continued WIND HITTING GRILL Check to ensure that the burners are correctly positioned in the grill. (See INDEX: “Burner Placement” for further details.) Wind hitting the grill while in use, especially winds blowing Correctly-installed burners should be seated fi rmly and level into or across the hood gap from behind, can cause poor with no side-to-side movement.
-
Page 31: Contacting Customer Service
Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Lynx at 1-888-289-5969, or write to: Lynx Grills... - Page 32 Lynx Grills 62201 Hwy 82 West Greenwood, Mississippi 38930 USA 888-289-5969 www.lynxgrills.com 34170 Rev K (022825)
