Summary of Contents for Lynx L27R-3
- Page 1 MAKE THE MOST OF YOUR CARE & USE/INSTALLATION...
- Page 3 THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA To obtain replacement parts or service contact: 1.6 latest edition and has been tested and approved by Lynx Professional Grills Intertek. 7300 Flores Street Downey, CA 90242 888-289-5969 CARE &...
- Page 4 WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY.
- Page 5 WARNINGS WARNING 1. Always maintain the required clearances from combustible construction as detailed. The grill is designed for outdoor use only. Never use in a garage, building, shed, breezeway or other enclosed area. This grill shall not be used under any unprotected overhead combustible construction. 2.
-
Page 6: Table Of Contents
Lighting your Grill Basic Grilling Using the Trident ™ Burner Using the Rotisserie Burner Using the Smoker Box CLEANING YOUR LYNX GRILL (Required Maintenance) TROUBLESHOOTING YOUR LYNX GRILL Potential Problems Contacting Lynx Customer Care The Lynx Story LYNX LIMITED WARRANTY... -
Page 7: Use & Care Guidelines

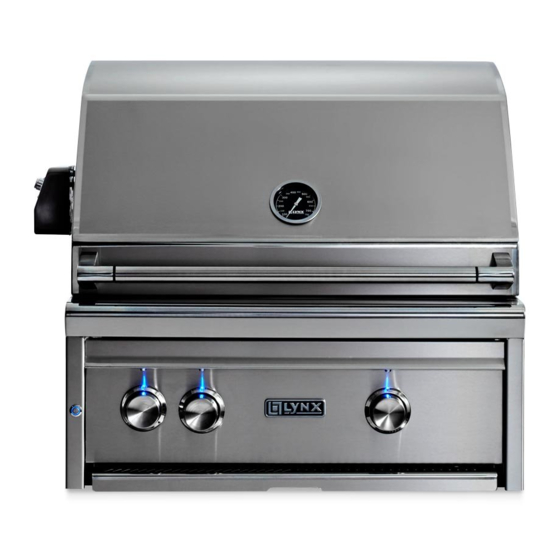

USE & CARE GUIDELINES This use & care manual covers the Lynx grill models listed below. Some features and options will vary based upon the model that you purchased. LYNX GRILL MODELS BUILT-IN FREESTANDING L27R-3 L27TR L27TRF L30R-3 L30TR L30TRF... -
Page 8: Before You Start
FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of sure to hold on to the container for inspection. We cannot extent of damage. assume responsibility for damage or loss incurred in transit. (See INDEX: “Obtaining Service from Lynx” for further details.) IMPORTANT NOTES HOW LONG IS YOUR RUN? WHERE’S THE WIND? -
Page 9: Clearance To Combustibles
BUILT-IN INSTALLATIONS A minimum of 6” of clearance is needed on the left side of the grill above the counter top for the rotisserie motor and The Lynx Built-In Grill is designed for easy installation into spit rod. masonry enclosures. -
Page 10: Specifications & Installation
IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifications and the proper installation of your Lynx outdoor kitchen equipment. This manual can be downloaded from the Lynx website at www.lynxgrills.com GRILLS... - Page 11 SPECIFICATIONS & INSTALLATION OUTDOOR ICE AND REFRIGERATION L15ICE/LMWINE/LM15REF MODEL LM15REFL/R 15.00 34.00-35.00 26.00 33.75-34.75 OUTDOOR REFRIGERATORS ICE MACHINE CLEARANCE LM24REFL/R 24.00 34.00-35.00 26.00 33.75-34.75 3” LM24REFCL/CR 24.00 34.00-35.00 26.00 33.75-34.75 LM24BFL/R 24.00 34.00-35.00 26.00 33.75-34.75 15” LM24DWR 24.25 34.00-35.00 26.00 33.75-34.75 25”...
-
Page 12: Unpacking & Assembly
INTERIOR PACKING Shipping weight on smaller units is app. 300 pounds and larger units may weigh over 500 pounds. Lynx uses sturdy tie-down cables and straps to ensure your grill arrives at your home in the same condition that WARNING: it left our factory. - Page 13 UNPACKING & ASSEMBLY ...continued Heat Shield Removed, Orifice/Venturi Position Inside View, Orifice all the way into venturi Burner sitting flat Move the rear caps towards the back and pull the front caps forward CARE & USE/INSTALLATION...
-
Page 14: Gas Connections
NEVER CONNECT A GAS LINE DIRECTLY TO THE GRILL. A PRESSURE REGULATOR MUST BE INSTALLED ON ALL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE IT AND LYNX SUPPLIES THE CORRECT REGULATOR WITH YOUR GRILL. REMOVING OR FAILING TO INSTALL THE PRESSURE REGULATOR CAN RESULT IN FIRE AND SERIOUS PERSONAL INJURY AND WILL VOID THE WARRANTY. -
Page 15: Lp Gas
Type 1 system only. Permanently plumbed LP connections, such as those in line Cylinders of free standing grills must be secured using the with a bulk cylinder, require a 4/11 regulator. (Lynx P/N 30781) provided cylinder retention system to avoid accidental movement. -
Page 16: Gas Conversion Kits
Do not over-tighten this connection. Gas conversion kits are available from Lynx Grills to To disconnect the coupler, first make sure the main cylinder allow the grill to operate on either Natural gas or valve is turned off. - Page 17 GAS CONNECTIONS ...continued NG AND BULK PROPANE CART INSTALLATION • Shut off the gas supply at the main valve. • Disconnect all plumbing (if already attached) from the grill and the gas supply valve. • Remove all the fittings from the grill manifold. •...
-
Page 18: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: ELECTRICAL GROUNDING • Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005. • Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance. •... -
Page 19: Final Checks
LEAK TESTING The main ceramic burners and Trident ™ burner on your Lynx grill feature an adjustable low setting. Fluctuations in gas pressure, gas conversion and even in the quality of the gas itself may affect burner performance at the DANGER! “LOW”... - Page 20 For technical assistance call: debris, or spider webs. The ceramic tiles should be Lynx Customer Care uniformly red to orange in appearance. There should be no 888-289-5969 lifting, fluttering or lazy blue flames.
-
Page 21: Checklist Before Each Use
This manual includes important safety tips and great hints for better grilling. You’ll want to keep it handy for easy reference. Also, at Lynx, we enjoy hearing from our customers. We like to hear about your successes but also about any difficulties you are having. -
Page 22: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR GRILL. 1. NEVER LEAVE THE GRILL UNATTENDED WHILE 12. Never grill without the drip pan in place. Always ensure COOKING. the drip pan is pushed all the way to the back of the grill. -
Page 23: Grilling In Windy Conditions
That’s how they sear and grill steaks and other foods. These high-performance burners require a constant, steady supply of fresh air to mix with the fuel. Your Lynx grill pulls air Wind hitting the back of the grill can disrupt proper exhaust. -
Page 24: Using Your Lynx Grill
... sometimes with the lid closed … Depending on the model you chose, your Lynx grill may achieving the best results in the middle of the food without be equipped with up to three different burner types. -
Page 25: Lighting Your Grill
PRE-GRILL CHECKLIST ...continued BEFORE EACH USE securely connected and leak tested. (See INDEX: “Cylinder Requirements” for details.) Before any use, always make sure that: • … you know where the main gas supply shut-off is • ... you do not smell gas before you light the grill. If you located. - Page 26 LIGHTING YOUR GRILL ...continued COLD WEATHER WARNING: PROPANE Extremely cold temperatures may cause your Trident ™ burners to light inside the burners instead of outside. Once lit, if you hear a ‘whooshing’ sound, immediately turn the burner knobs off to extinguish the flame and then immediately re-light the burners. MANUAL LIGHTING Trident ™...
-
Page 27: Basic Grilling
The main ceramic burners and the Trident ™ burner in your important. Pre-heating allows the briquettes to properly Lynx grill are capable of creating a range of heat intensities. heat up, providing more even and more consistent cooking By varying the heat output, the number of burners used results. -
Page 28: Using The Trident ™ Burner
... infrared heat ... to create a higher searing temperature produced when drippings are vaporized by the burner. than what standard burners can achieve. So Lynx provides the Trident ™ infrared burner. The result is a restaurant-style finish … crisp, flavorful outside with a tender, juicy inside. -
Page 29: Using The Rotisserie Burner
Swing the warming rack up and out of the way. It will rest in when slow-roasted on a Lynx’s place. rotisserie. The Lynx rotisserie system consists of four main parts, the motor, the skewer, the forks and the infrared burner. The Motor Install the motor by sliding it into one of the slots shown here. -
Page 30: Using The Smoker Box
Lynx Smoker and being careful not to adjust it too high. Set with handle. This oval shaped Lynx Smoker box can be For best results keep the lid closed. The best absorption placed anywhere on the grates directly over any burner. -
Page 31: Cleaning Your Lynx Grill (Required Maintenance)
Part of the appeal of your Lynx Grill is the fine grain finish. THE LYNX LIMITED LIFE TIME WARRANTY PROVIDES When removing stubborn stains: PROTECTION AGAINST RUST THROUGH OF PARTS THAT •... - Page 32 Be sure the trays have completely cooled before reinstalling them. Replacement briquette trays can be ordered from Lynx or from your dealer. MAIN CERAMIC BURNERS Make sure the grill is completely cool before proceeding.
-
Page 33: Troubleshooting Your Lynx Grill
• Are you using the correct type of fuel? (LP or Natural Gas) If you’ve checked the above items, review the (See INDEX: “Gas Requirements” for further details.) trouble-shooting list below before calling for Lynx for service. CARE & USE/INSTALLATION... -
Page 34: Potential Problems
If the burner will light with a match, then the igniter may not be functioning correctly. Call for service. Your Lynx grill uses an electric ignition system that does not If the burner will not match light, and you know you are spark. - Page 35 Make sure that the regulator & hose assembly is the one • Check burners for blockages. designed for and supplied with your Lynx grill and that it • Check flame characteristics. (See INDEX: “Flame, Correct is correctly set up for the type of fuel you are using. (See Size”...
- Page 36 • Location knob, call for service. First determine if the problem is being caused by location. (See INDEX: “Obtaining service from Lynx” for further If the grill is subject to high winds, reposition it to provide details.) some protection.
-
Page 37: Contacting Lynx Customer Care
CONTACTING LYNX CUSTOMER CARE Before calling Lynx Customer Care, please make sure you Your satisfaction is of the utmost importance to us. If a have the following information: problem cannot be resolved to your satisfaction, please write, fax or email us: •... -
Page 38: Lynx Limited Warranty
7) No one has the authority to add to or vary Lynx’s warranty, with the owner paying a processing fee and all other costs or to create for Lynx any other obligation or liability in including labor. -
Page 39: Lynx Common Area Limited Warranty
THIS PROVISION EXCLUDES ALL COMMERCIAL 7) No one has the authority to add to or vary Lynx’s warranty, APPLICATIONS, INCLUDING, BUT NOT LIMITED TO or to create for Lynx any other obligation or liability in RESTAURANTS AND INSTITUTIONAL FOOD SERVICE connection with the sale or use of its products. -
Page 40: Wiring Schematics
WIRING SCHEMATICS L27 & L30 ROTISSERIE GRILL CARE & USE/INSTALLATION... -
Page 41: L36 & L42 Rotisserie Grill
WIRING SCHEMATICS L36 & L42 ROTISSERIE GRILL CARE & USE/INSTALLATION... -
Page 42: L54 Rotisserie Grill
WIRING SCHEMATICS L54 ROTISSERIE GRILL CARE & USE/INSTALLATION... -
Page 43: Lynx Professional Grills Exploded Parts View
LYNX PROFESSIONAL GRILLS EXPLODED PARTS VIEW PROFESSIONAL SERIES MODEL SERIES 'R' 62 SPIT FORK MOTOR MOUNTING BRACKET KIT (2-POSITION) SPIT ROD 61 HEAVY DUTY, 3-SPEED MOTOR ASS'Y FRONT HOOD ASSY TRANSFORMER MOUNTING BRACKET F/S SCREW ROTISERIE JACK + HOOD THERMOMETER... -
Page 44: Lynx Professional Grills Parts List
LYNX PROFESSIONAL GRILLS PARTS LIST PROFESSIONAL SERIES PARTS LIST MODEL SERIES 'R' ITEM GRILL SIZE PART NO. DESCRIPTION ITEM GRILL SIZE PART NO. DESCRIPTION 80322 FRONT HOOD ASSY, 27" 36438 GAS COLLECTOR BOX, CERAMIC-BURNER 80309 FRONT HOOD ASSY, 30" ALL NG 13010 ELBOW, STREET, 1/2"... -
Page 45: Model-Specific Btu Outputs & Max. Runs For Appliances
MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES MODEL-SPECIFIC BTU OUTPUTS MODEL CERAMIC BURNER (Btu) ROTISSERIE (Btu) TRIDENT ™(Btu) TOTAL INPUT L27R 2 @ 25,000 1 @ 14,000 64,000 Btu/Hr L27TR(F) 1 @ 25,000 1 @ 14,000 1 @ 21,000 62,000 Btu/Hr L30R(F) 2 @ 25,000... -
Page 46: Insulated Jacket Installation
(rear or bottom access). Make these holes in the frame based on your requirements. 1” Screws can be provided to help straighten out the sides of the LIJ if necessary. Contact Lynx for details. CARE & USE/INSTALLATION... -
Page 47: Index
Burner Placement ............32 Maximum Runs for all appliances on supply line ..45 Checklist Before Each Use ..........21 Obtaining Service From LYNX ........37 Clean the Ceramic Burner ..........32 Cleaning Your Lynx Grill ..........31 Parts List ............... 44 Clearance to Combustibles .......... - Page 48 The best outdoor kitchen products come from: Lynx Grills, Inc. 7300 Flores Street Downey, CA 90242 Service: (888)-289-5969 Fax: (562) 299-6978 www.lynxgrills.com PN #35283...
