Summary of Contents for Lynx SEDONA L400

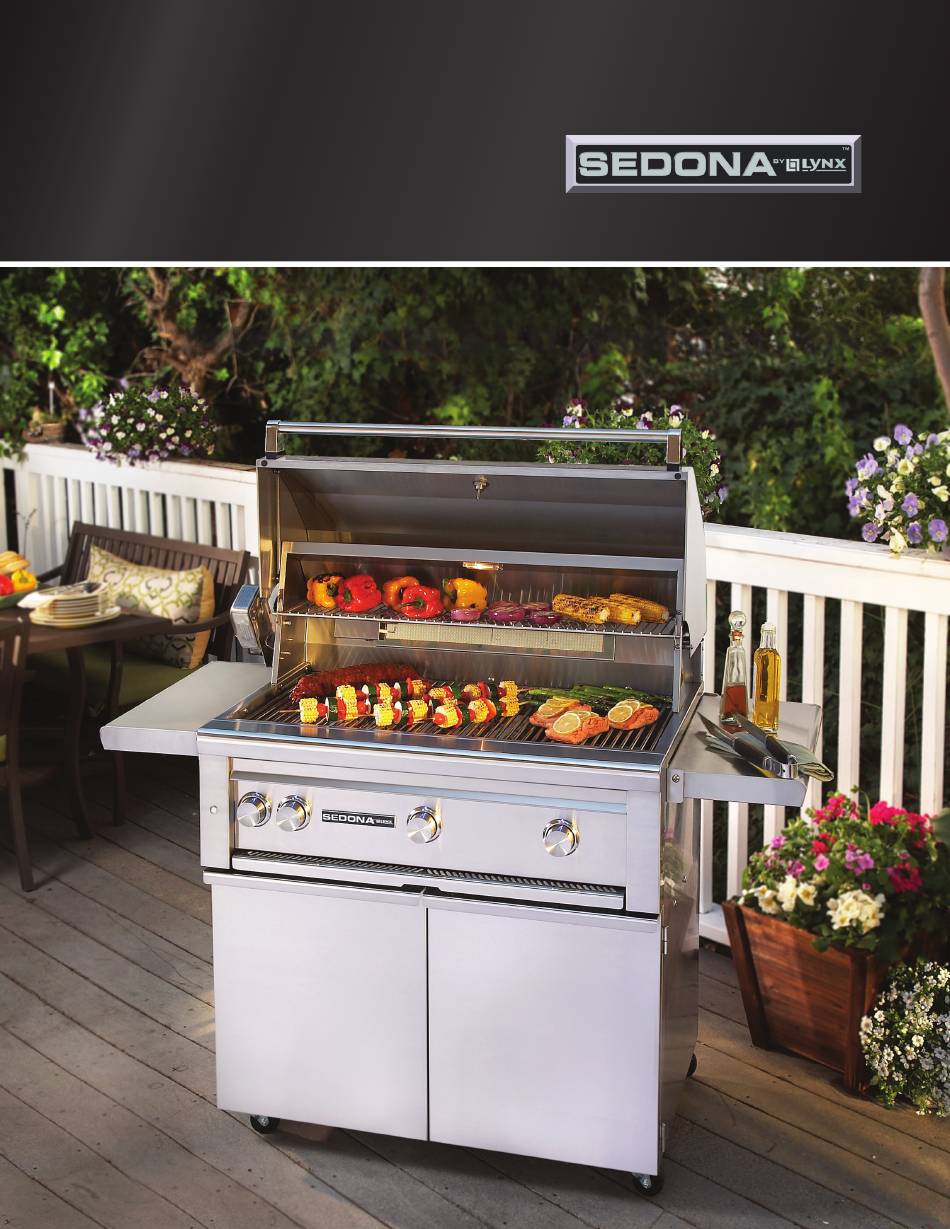

  • Page 1 MAKE THE MOST OF YOUR SEDONA CARE & USE/INSTALLATION...
  • Page 2 WARNINGS WARNING Read this manual carefully and completely before using your grill to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. This product is designed for outdoor use only.
  • Page 3 13. THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA 1.6 latest edition and has been tested and approved by Intertek. To obtain replacement parts or service contact: Lynx Professional Grills 7300 Flores Street Downey, CA 90242 888-289-5969...
  • Page 4: Table Of Contents

    Lighting Your Grill Basic Grilling Using the ProSear™ Burner Using the Optional Rotisserie Burner Cleaning Your Sedona Grill Troubleshooting Your Sedona Grill Contacting Lynx Customer Care Warranty INSTALLATION GUIDELINES Before You Start If shipment arrives damaged Built-In Installations Clearance to Combustibles...
  • Page 5: Care & Use Guidelines

    IMPORTANT SAFETY PRECAUTIONS PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR GRILL. 1. NEVER LEAVE THE GRILL UNATTENDED WHILE 11. Cooking excessively fatty meats and oils will cause flare COOKING. ups. Internal fires or damage caused by them or by the grill being left unattended while cooking are not cov- ered under the terms and conditions of our warranty.
  • Page 6: Sedona Grill Models

    SEDONA GRILL MODELS This manual covers the following models, with or without Rotisserie burners. The freestanding carts are sold separately when use as a freestanding grill is desired. MODEL DESCRIPTION L400PS; L500PS 1 Stainless Steel Tube Burner and 1 ProSear™ Burner L600PS/L700PS 2 Stainless Steel Tube Burners and 1 ProSear™...
  • Page 7: Using Your Sedona Grill

    USING YOUR GRILL Grilling requires high heat for searing and low, controlled outside. Some foods are cooked using direct heat and heat for slow cooking. Thinner cuts of food are often some using indirect heat. (See INDEX: “Types of Cooking”) cooked at a “HI”...
  • Page 8: Lighting Your Grill

    PRE-GRILL CHECKLIST... continued BEFORE EACH USE • … you know where the main gas supply shut-off is located. Before any use, always make sure that: • ... you do not smell gas before you light the grill. If you • … the burners are seated properly in the grill with mount- do smell gas, shut everything off and have a qualified ing legs in the slots.
  • Page 9 LIGHTING YOUR GRILL ... continued COLD WEATHER WARNING: PROPANE WARNING inside Extremely cold temperatures may cause your ProSear™ burner to light the burner instead of outside . Once lit, if you hear a ‘whooshing’ sound, immediately turn the burner knob off to extinguish the flame and then immediately re-light the burner.
  • Page 10: Basic Grilling

    BASIC GRILLING PRE-HEATING Pre-heating your grill every time you use it is extremely Then close the hood and allow the grill to heat for 10 to important. Pre-heating allows the briquettes to properly 15 minutes. Once you’ve reached your desired pre-heat heat up, providing more even and more consistent cooking temperature, turn off the burner that you won’t be using to results.
  • Page 11: Using The Prosearâ„¢ Burner

    USING THE PROSEAR™ BURNER HOW TO SEAR Professional restaurant chefs rely on a different type of heat ... infrared heat ... to create a higher searing temperature Searing locks in flavor and juices while allowing the food’s than what standard burners can achieve. So the ProSear™ outer surface to absorb smoke and food-born aromas pro- infrared burner is provided for this purpose.
  • Page 12: Using The Optional Rotisserie Burner

    USING THE OPTIONAL ROTISSERIE BURNER Rotisserie cooking provides an even delivery of heat to The location of the rotisserie burner makes it more suscep- your foods. It has no equal. The constant rotation not only tible to strong wind conditions (more so than the main grill cooks foods evenly, it also self bastes.
  • Page 13 USING THE OPTIONAL ROTISSERIE BURNER... continued The Rotisserie Burner To light the rotisserie infrared burner, first mount the skew- ered food item on the grill then follow the rotisserie light- ing procedure. (See INDEX: “Rotisserie Burner, Lighting” for further details.) Once lit, the rotisserie burner should reach cooking tem- peratures in about 1 minute.
  • Page 14: Cleaning Your Sedona Grill

    CLEANING YOUR GRILL STAINLESS STEEL • Regularly wipe down the exterior surfaces with a damp cloth. (Micro fiber cloths such as Ecloth perform very Our grills are known for their attractive appearance. We well). achieve this by selecting only the finest grades of stainless •...
  • Page 15 Any remaining food items can be brushed off using a soft brush. Replacement briquette trays can be ordered from Lynx Customer Care. MAIN BURNERS PROSEAR™ BURNER Make sure the grill is completely cool before proceeding. It’s easy to keep your ProSear™ burner operating at peak Ensure that the gas supply is off and all control knobs are in performance.
  • Page 16: Troubleshooting Your Sedona Grill

    Then reconnect power. ensure that there If, after resetting the transformer and replacing bulbs, you still is a proper gap of do not have power, contact Lynx Customer Care. approximately 1/8” between the electrodes. Replace the Bulb •...
  • Page 17 If the burner will light with a match, then the igniter may correctly set up for the type of fuel you are using. not be functioning correctly. Contact Lynx Customer Care. (See INDEX: “Regulator Conversion” for further details.) If the burner will not match light, and you know you are...
  • Page 18: Contacting Lynx Customer Care

    Correctly-installed burners should be seated firmly and ing Lynx Customer Care” for further details.) level with no side-to-side movement. CONTACTING LYNX CUSTOMER CARE Before calling Lynx Customer Care, please make sure you have the following information: • Model number • Date of purchase •...
  • Page 19: Warranty

    II. Limited Five-Year Warranty 7) No one has the authority to add to or vary Lynx’s The following grill parts are warranted to be free from warranty, or to create for Lynx any other obligation or defects in material and workmanship, when subjected to nor- liability in connection with the sale or use of its products.
  • Page 20: Installation Guidelines

    INSTALLATION GUIDELINES INSTALLATION GUIDELINES Before You Start If shipment arrives damaged Built-In Installations Clearance to Combustibles Cut Out Dimensions Unpacking and Assembly Gas Connections Natural Gas LP Gas Gas Line Purging Gas Conversion Kits Electrical Connections Connection to AC Battery Installation Final Checks Leak Testing Wiring Schematics...
  • Page 21 WARNING WARNING 1. Always maintain the required clearances from combustible construction as detailed. The grill is de- signed for outdoor use only. NEVER use in a garage, building, shed, breezeway or other enclosed area. This grill shall not be used under any overhead combustible construction. 2.
  • Page 22: Before You Start

    We cannot assume may be required each time you move a freestanding unit. responsibility for damage or loss incurred in transit. (See IN- DEX: “Contacting Lynx Customer Care” for further details.) BUILT-IN INSTALLATIONS Built-in grills are designed for easy installation into masonry IMPORTANT NOTES enclosures.
  • Page 23: Clearance To Combustibles

    BEFORE YOU START... continued CAUTION When using a Lynx Quick Disconnect device (LQD) and a Lynx Insulating Jacket the flexible hose must not contact any portion of the firebox section of the grill. It is recommended that the installer use best fitting practices to hard pipe the connection outside of the insulating jacket through one of the openings in the insulating jacket.
  • Page 24: Cut Out Dimensions

    CUT-OUT DIMENSIONS FOR BUILT-IN GRILLS COUNTERTOP NOTCH DETAIL Note: Side burners may be rotated 90 degrees. CUTOUT NOT 0.56” Only required if island countertop REQUIRED Note: For Natural Gas grills, the manufacturer WITH LIJs overhangs the face of the island recommends using 3/4”...
  • Page 25: Unpacking And Assembly

    You pressure regulator must be installed on all gas can verify that by equipment. All local codes require it and Lynx supplies checking the rating the correct regulator with your grill. Removing or The Rating plate lists serial numbers, model numbers and gas type.
  • Page 26: Natural Gas

    GAS CONNECTIONS... continued Ensure that the gas supplied meets with the minimum all the gas-fired equipment that will be connected to that line. pressure requirements. Do not operate the grill on any gas In no case should pipe less than ¾” inside diameter or 1” other than that for which the grill has been set.
  • Page 27: Lp Gas

    HARD PIPED LP FROM BULK STORAGE TANKS use with a Type 1 system only. Permanently plumbed LP connections, such as those in Cylinders of free line with a bulk cylinder, require a 4/11 regulator. (Lynx standing grills must P/N 30781) be secured using...
  • Page 28: Gas Line Purging

    Do GAS CONVERSION KITS not over-tighten this connection. Gas conversion kits are available from Lynx Grills the grill to To disconnect the coupler, first make sure the main cylin- operate on either Natural gas (SEDNGK) or LPG (SEDLPK).
  • Page 29: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING - ELECTRICAL GROUNDING Product installation must meet local electric codes or, in the To protect against electric shock, do not immerse any part of absence of local codes, the latest edition of the National Elec- the power cord, an extension cord or any plugs in water or trical Code ANSI/NFPA No.
  • Page 30: Final Checks

    FINAL CHECKS LEAK TESTING Fluctuations in gas pressure, gas conversion and even in the quality of the gas itself may affect burner performance at the “LOW” setting. It could be either too high or too low. DANGER To adjust the burner low setting: •...
  • Page 31 Finally, for safety and for proper use & care, you must leave this manual with the owner. Make sure you advise them to keep it for future reference. For technical assistance call: Lynx Customer Care 888-289-5969 SEDONA CARE & USE/INSTALLATION...
  • Page 32: Wiring Schematics

    WIRING SCHEMATICS L400/L500 NON-ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...
  • Page 33: L400/L500 Rotisserie Grill

    WIRING SCHEMATICS L400/L500 ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...
  • Page 34: L600/L700 Non-Rotisserie Grill

    WIRING SCHEMATICS L600/L700 NON-ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...
  • Page 35: L600/L700 Rotisserie Grill

    WIRING SCHEMATICS L600/L700 ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION...
  • Page 36: Sedona Grill Exploded Parts View

    SEDONA GRILL EXPLODED PARTS VIEW SEDONA CARE & USE/INSTALLATION...
  • Page 37: Sedona Grill Parts List

    SEDONA GRILL PARTS LIST SEDONA CARE & USE/INSTALLATION...
  • Page 38: Model Specific Btu Outputs

    BTU OUTPUTS & MAXIMUM RUNS MODEL-SPECIFIC BTU OUTPUTS MODEL TUBE BURNER ROTISSERIE PROSEAR™ TOTAL INPUT L400PS 1 @ 23,000 Btu/Hr 1 @ 23,000 Btu/Hr 46,000 Btu/Hr L400PSR 1 @ 23,000 Btu/Hr 1 @ 12,500 Btu/Hr 1 @ 23,000 Btu/Hr 58,500 Btu/Hr L500PS 1 @ 23,000 Btu/Hr 1 @ 23,000 Btu/Hr...
  • Page 39: Index

    Clearance to Combustibles ..23 Coastal Use ......... 14 Important Safety Precautions ..5 Schematics, L400/L500 Grill ..32 Contacting Lynx Customer Care 18 Indirect Heating ....... 10 Schematics, L600 Grill ....34 Cut-out Dim., Built-in Grill ..24 Service, contacting Lynx ..18 Cylinder Retention Requirements ......
  • Page 40 Lynx Professional Grills 7300 Flores Street Downey, CA 90242 Lynx Customer Care: 888.289.5969 Fax: 562-299-6978 www.lynxgrills.com PN #34170, Rev. D 02/15 SEDONA CARE & USE/INSTALLATION...
