KitchenAid KGCP483KSS - 48" Commercial-Style Gas Cookto Parts List

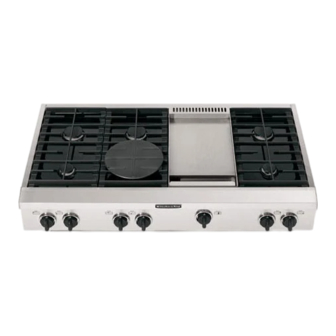

48" stainless professional cooktop (with griddle)
Hide thumbs


Advertisement

COOKTOP, BURNER AND GRATE PARTS
For Model: KGCP483KSS05
48" Stainless
(Stainless)
Professional Cooktop
(With Griddle)
09−08 Litho in U.S.A. (amd) (psw)
1
Part No.W10207229 Rev. A

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KGCP483KSS - 48" Commercial-Style Gas Cookto

  Summary of Contents for KitchenAid KGCP483KSS - 48" Commercial-Style Gas Cookto

  • Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP483KSS05 48" Stainless (Stainless) Professional Cooktop (With Griddle) 09−08 Litho in U.S.A. (amd) (psw) Part No.W10207229 Rev. A...
  • Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP483KSS05 (Stainless) Illus. Part DESCRIPTION Literature Parts 8285498 Tech Sheet W10162189 Use & Care Guide 9759405 Installation Instructions 9759442 Instructions, LP Conversion 2 W10157546 Backsplash 8284760 Support,Backsplash 3196537 Screw 5 W10106670 Grate, Burner 6 W10157549 Trim, Island 3400843 Screw 8273062 Screw,...
  • Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP483KSS05 (Stainless) W10207229...
  • Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP483KSS05 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8523704 Bolt, Valve 4455040 Tubing, Gas 3400843 Screw 4456907 Burner Switch & Burner − RF 4456767 Tube, Griddle Harness Assembly 4455041 Tubing, Gas 8284796 Plug, Manifold 3191387 Seal, Switch Burner −...
  • Page 5: Optional Parts

    OPTIONAL PARTS For Model: KGCP483KSS05 (Stainless) Illus. Part DESCRIPTION WIRING HARNESS PARTS 8285527 Power Cord 4456628 Harness, Ign 42" 4456627 Harness, Ign 28" 4173634 Bushing, Electric 1129449 Bushing 535183 Tie, Cable 4167077 Nut, Tinnerman Miscellaneous 8284782 L.P. Orifice Spud Pack W10207229...
