16.2 CU.FT. FRENCH DOOR REFRIGERATOR
MODEL (LIPPERT PN)
SRM-418CBG-E (2022302237) SRM-418CBG-ES (2023001029)
SRM-418CB-C (2022302096)
TROUBLESHOOTING AND SERVICE MANUAL
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.
* Picture shown here is for reference only.
Advertisement
Table of Contents
Related Manuals for Furrion Everchill SRM-418CBG-E
Summary of Contents for Furrion Everchill SRM-418CBG-E
- Page 1 16.2 CU.FT. FRENCH DOOR REFRIGERATOR MODEL (LIPPERT PN) SRM-418CBG-E (2022302237) SRM-418CBG-ES (2023001029) SRM-418CB-C (2022302096) TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance, replaceable parts, fault diagnosis and basic troubleshooting procedures.
-
Page 2: Table Of Contents
Fault Display Introduction This document provides an overview on replaceable parts for Furrion® Everchill 16.2 Cu. ft. French Door Refrigerator, as well as basic troubleshooting and service information. NOTE: Images used in this document are for reference only when assembling, installing and/or operating this product. -
Page 3: Important Safety Instructions
Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. Important Safety Instructions TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. -
Page 4: Maintenance And Cleaning
Risk of child entrapment. Before you throw away your old refrigerator: • Take off the door. • Leave the shelves in place so that children may not easily climb inside. Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer. -
Page 5: Replaceable Parts List
Replaceable Parts List Callout Part # Description Model SRM-418CBG-E 2023001037 Compressor Board SRM-418CBG-ES SRM-418CBG-E 2023021300 12V PCB Board SRM-418CBG-ES 2023021301 110V PCB Board SRM-418CB-C 2023021302 12V/110V LED Lamp Cover SRM-418CBG-E 2023001031 Upper Door Hinge Cover Assembly SRM-418CBG-ES 2023021303 110V Upper Door Hinge Cover Assembly, RH SRM-418CB-C 2023001032 12V/110V Upper Door Hinge, RH... -
Page 6: Troubleshooting
Callout Part # Description Model 2022302110 12V Door Assembly, BLK Glass, RH SRM-418CBG-E 2022302173 12V Door Assembly, SS Glass, RH SRM-418CBG-ES 2022449901 110V Door Assembly, Darker SS, RH SRM-418CB-C 2023001040 12V/110V Lower Freezer Drawer 2023001039 12V/110V Upper Freezer Drawer 2022302198 12V Upper Freezer Drawer Assembly, BLK Glass SRM-418CBG-E 2022302087... -
Page 7: Fault Display
What Is Why? What Should Be Done? Happening? Is the light damaged? Replace the LED light. The light is not The control system has disable the lights due to the The door has been open working door being kept open too long, close and reopen the too long door to reactivate the lights. - Page 8 Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center & Institute of Technology Centre d’innovation et institut de technologie Furrion...
Need help?
Do you have a question about the Everchill SRM-418CBG-E and is the answer not in the manual?
Questions and answers

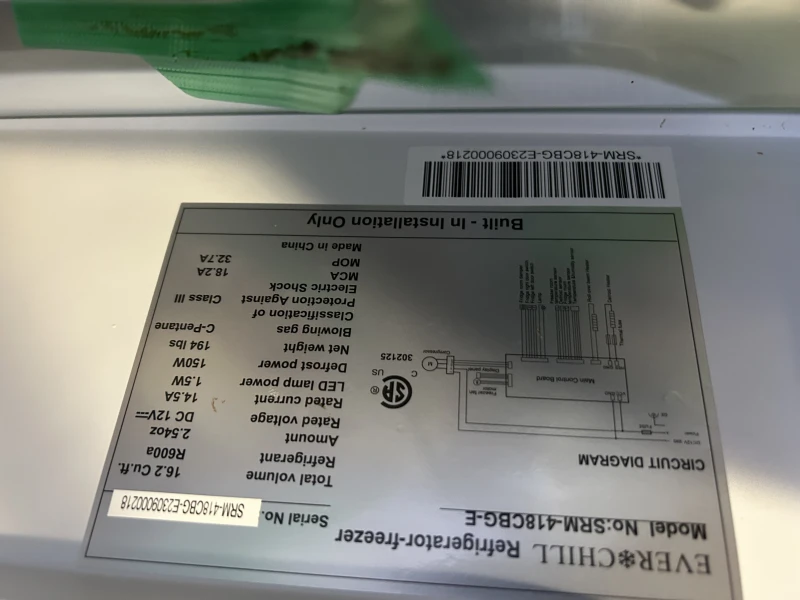

Hello I bought a heritage Eddie Bauer from camping world Berkley mass in sept of 2024 the refrigerator section is not getting below 56 degrees the freezer works fine I called the dealer they said they can’t help me I hope this is under warranty I wanted to see what I have to do to get this fixed model # arm-418cbg-e see # srm-418cbc-e2309000218
