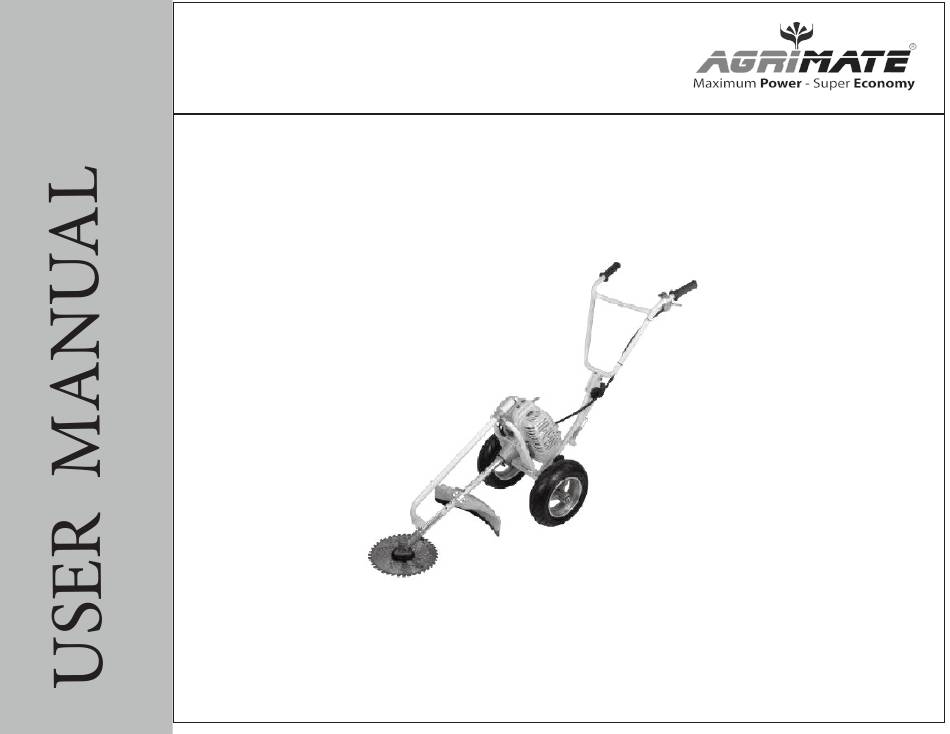

- Page 1 AGRIMATE BRUSH CUTTER - PUSH TYPE AM-5300PT-2S-NEO...
- Page 2 INTRODUCTION Dear Sir/ Madam, Thank you for choosing Agrimate product. You are the proud owner of high technology & dura- ble machine.Trust that our Franchisee/Dealer installed the product & installed the product and explained you about the usage & service instrcuctions. Please visit our autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL AM-5300PT-2S-PRO ENGINE TYPE 2S , AIRCOOLED TYPE OF HANDLE DOUBLE GRIP DISPLACEMENT 42.7CC METHOD OF STARTING RECOIL STARTING FUEL TANK CAPACITY 1.2L... - Page 5 Proper safety precautions must be observed. Like all equipment this unit must be handled carefully DO NOT EXPOSE YOURSELF TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read and understand the machine manual and are trained in its operation. •...
- Page 6 FOLLOW INSTRUCTION FOR CHANGING ACCESSORIES. • Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, furnaces, etc. store in a locked, well-ventilated area only. • Use only our company original equipment parts when servicing the unit, this will ensure safe and proper perfor-mance of your product. These parts are available from your dealer.
- Page 7 TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-5300PT-2S BRUSH CUTTER - PUSH TYPE...
- Page 8 TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-5300PT-2S BRUSH CUTTER - PUSH TYPE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-5300PT-TA01 Nylon Head AM-5300PT-TA13 Throttle Switch AM-5300PT-TA02 Corner Jet AM-5300PT-TA14 Handle Bar AM-5300PT-TA03 Hexagon screw combination AM-5300PT-TA15 handdle Connection Cover AM-5300PT-TA04 Hexagon screw combination...
- Page 9 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-5300PT-2S BRUSH CUTTER - PUSH TYPE...
- Page 10 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-5300PT-2S BRUSH CUTTER - PUSH TYPE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-5300PT-EA01 Air filter cover bolt AM-5300PT-EA17 Bolt AM-5300PT-EA02 Air filter cover AM-5300PT-EA18 Cylinder Gasket AM-5300PT-EA03 Choke sticker AM-5300PT-EA19 Cylinder Bolt AM-5300PT-EA04...
- Page 11 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-5300PT-2S BRUSH CUTTER - PUSH TYPE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-5300PT-EA33 Starter plate AM-5300PT-EA49 Fly wheel AM-5300PT-EA34 Oil seal AM-5300PT-EA50 Spark Plug AM-5300PT-EA35 Right cylinder AM-5300PT-EA51 Ignition Cap AM-5300PT-EA36 Bearing AM-5300PT-EA52...
- Page 12 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-5300PT-2S BRUSH CUTTER - PUSH TYPE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-5300PT-EA65 Sticker AM-5300PT-EA75 Oil Feedign tube AM-5300PT-EA66 Bolt AM-5300PT-EA76 Oil Output tube AM-5300PT-EA67 Plastic Guard board AM-5300PT-EA77 Dipstick AM-5300PT-EA68 Sticker...
-
Page 13: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 14 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 15 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 16 DONTS attempting to use the equipments. Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before trousers and jackets while operating potentially dangerous machines 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, 3.
- Page 17 NO. 1 CHOICE OF FARMERS SINCE 1999 RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
