Agrimate AM-5202-2S User Manual

Hide thumbs

Advertisement

Table of Contents

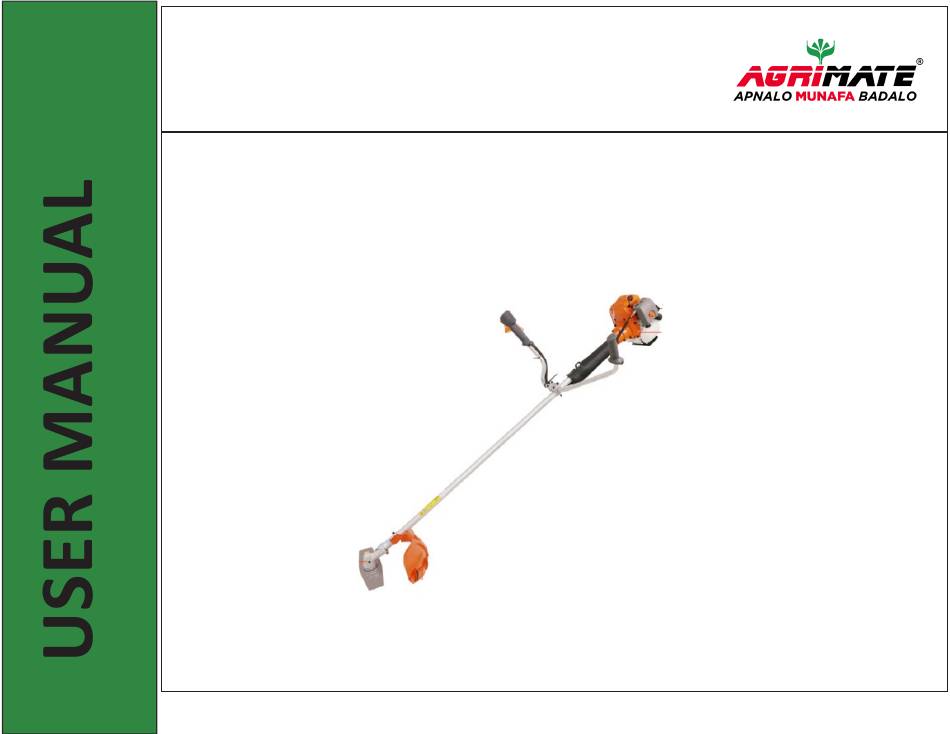

AGRIMATE BRUSH CUTTER
AM-5202-2S
AN ISO 9001 : 2015 CERTIFIED COMPANY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM-5202-2S and is the answer not in the manual?

Questions and answers

Related Manuals for Agrimate AM-5202-2S

Summary of Contents for Agrimate AM-5202-2S

  • Page 1 AGRIMATE BRUSH CUTTER AM-5202-2S AN ISO 9001 : 2015 CERTIFIED COMPANY...
  • Page 2 IMPORTANT! The machine is only designed for trimming grass. The only accessories you can operate with this engine unit are the cutting attachments we.recommend in the chapter on Technical data. Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your CCH>rdination.
  • Page 3 Carburettor Adjusting the Idle speed (T) Check that the air filter is clean. When the idle·speed is orrect, the cutting attachment should not rotate. If adjust ment is required, close (turn clockwise) the idle adjustment crew T, with the engine running, until the cutting attach ment starts to rotate. Open (turn anticlockwise) the screw ntil the cutting attachment stops.

  • Page 4: Basic Safety Rules

    Check that the vibration damping element is undamaged and securely attached. WARNING! Overexposure to vibration can lead to circulatory damage or nerve dam age in people w ,o have impaired circula tion. Contact your doctor if you experi ence symptoms of overexposure to vibra tion. Such symptoms include numbness, loss of feel- ing, tingling, pricking, pain, loss of strength, changes in skin colour or condition.

  • Page 5: General Safety Precautions

    CAUTION! Do not pull the starter CAUTION! Do not put any part of your body cord all the way out and do not in marked area. Contact can result in bums to Stop the engine by Throttle control position let go of the starter handle when the skin, or electrical shock if the sparkplug cap for starting.Set the throttle switching off the...
  • Page 6 ASSAMBLY Assembling the main Body 1. Connecting throttle cable and stop switch wires Assembling the handlebar and 2. Remove the air filter cover. Connect the engine (A) throttle Fit the handlebar in the Insert the throttle cable (A) through the carburettor bracket (B), then screw the to the tube (B) with four cable adjuster sleeve (C) into the carburettor bracket fully.
  • Page 7 Check before starting •Never use the machine without a guard nor with a defective guard. •All covers must be correctly fitted and undamaged before you start the machine. •Check that the trimmer head and trimmer guard are not damaged or cracked. Replace the trimmer head or trimmer guard if they have been exposed to impact or are cracked WARNING! The complete clutch cover and shaft must be fitted before the ma chine is started, otherwise the clutch can come loose and cause personal injury.
  • Page 8 • Always mix the petrol and oil in a clean container in tended for fuel. •Always start by filling half the amount of the petrol to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of petrol. •...

  • Page 9: Adjusting The Harness And Clearing Saw

    Adjusting the harness and clearing saw WARNING! When using a clearing saw it Spreading the load on your shoulders must always be hooked securely to the Correct height A well-adjusted harness and machine makes work harness. Otherwise you wlll be unable to Adjust the shoulder strap so that the much easier.
  • Page 10 Fuel safety Never start the machine: If you have spilt fuel on it. Wipe off the spillage and allow remaining fuel to evaporate. If you have spilt fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact.with fuel. Use soap and water.

  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL AM-5202-2S ENGINE G-45 POWER FUEL TANK CAPCITY 0.9LTR WEIGHT 10KG...
  • Page 12 TRANSMISSION DIAGRAM OF AM-5202-2S BRUSH CUTTER...
  • Page 13 SL NO. PART NO. DESCRIPTION SL NO. PART NO. DESCRIPTION AM-5202-T01 HARNESS AM-5202-T17 SCREW AM-5202-T02 RIGHT HANDLE AM-5202-T18 SCREW AM-5202-T03 LEVER ASS’Y AM-5202-T19 SCREW AM-5202-T04 GRIP AM-5202-T20 SCREW AM-5202-T05 LEFT HANDLE AM-5202-T21 HANG RING ASSY AM-5202-T06 40T BLADE AM-5202-T22 AM-5202-T07 DRUM PROTECTOR AM-5202-T23 OIL-BEARING...
  • Page 14 SL NO. PART NO. DESCRIPTION SL NO. PART NO. DESCRIPTION AM-5202-T33 GEAR SHAFT AM-5202-T49 AM-5202-T34 OIL SEAL AM-5202-T50 HANDGRIP AM-5202-T35 CUTTER HOLDER AM-5202-T51 SCREW AM-5202-T36 CUTTER HOLDER CAP AM-5202-T52 AM-5202-T37 NYLON HEAD CUTTER AM-5202-T53 LEFT BOX AM-5202-T38 STOP RING AM-5202-T54 SCREW AM-5202-T39 BEARING...
  • Page 15 ENGINE SPARE PARTS LIST OF AM-5202-2S BRUSH CUTTER...
  • Page 16 ENGINE SPARE PARTS LIST OF AM-5202-2S BRUSH CUTTER SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-5202-BC-E01 RECOIL STARTER ASSY AM-5202-BC-E17 PISTON PIN AM-5202-BC-E02 SCREW AM-5202-BC-E18 IGNITION STATOR AM-5202-BC-E03 FRONT CRANK CASE AM-5202-BC-E19 PISTON AM-5202-BC-E04 START REEL AM-5202-BC-E20...
  • Page 17 ENGINE SPARE PARTS LIST OF AM-5202-2S BRUSH CUTTER SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-5202-BC-E33 SCREW AM-5202-BC-E49 SCREW AM-5202-BC-E34 CLUTCH SHOE ASSY AM-5202-BC-E50 SCREW AM-5202-BC-E35 WAVE WASHER AM-5202-BC-E51 SCREW AM-5202-BC-E36 SCREW PIN AM-5202-BC-E52 FUEL TANK ASSY...
  • Page 18 INSPECTION & MAINTAINANCE For safety use, make sure the machine is cleaned every three months. Before working, make sure to inspect the filter and the nozzel and ensure there is no imurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.

  • Page 19: Warranty Card

    WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE...
  • Page 20 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
  • Page 21 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
  • Page 22 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
  • Page 23 AGRIMATE MULTI PURPOSE EQUIPMENT ANYWHERE - ANYTIME - ANY CROP IMPORTED & MARKETED BY, RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
