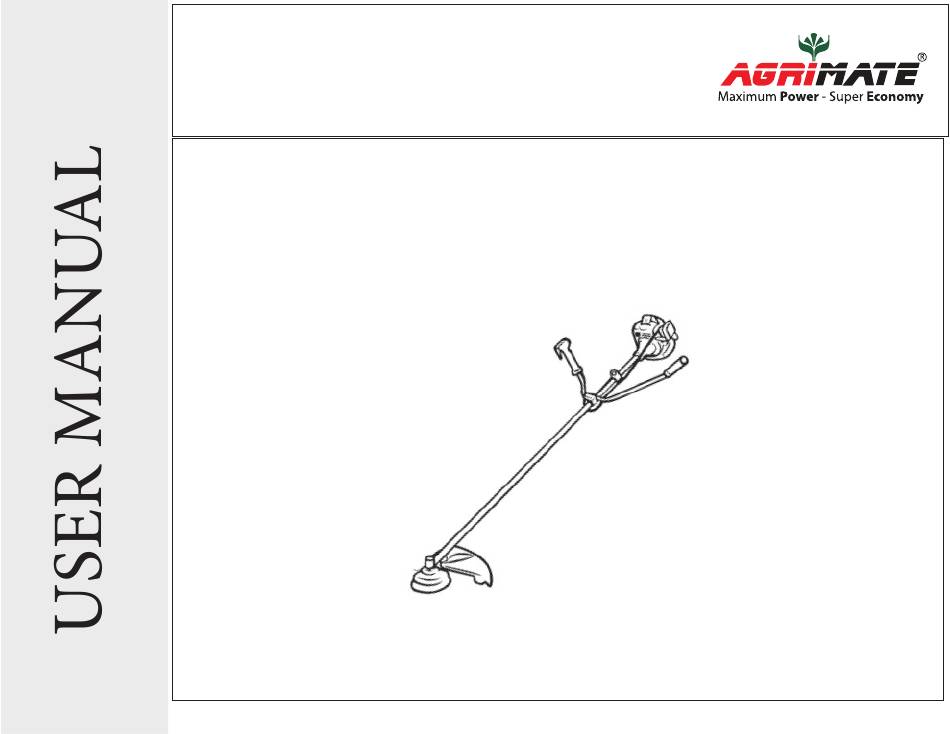

- Page 1 AGRIMATE BRUSH CUTTER AM-500HC-BC-4S-PRO...
- Page 2 INTRODUCTION Dear Sir/ Madam, Thank you for choosing Agrimate product. You are the proud owner of high technology & durable machine. Trust that our Franchisee/Dealer installed the product & installed the product and explained you about the usage & service instrcuctions. Please visit our autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.
- Page 3 TECHNICAL SPECIFICATIONS MODEL AM-500HC-BC-4S-PRO ENGINE MODEL GX-50 DISPLACMENT 50CC ENGINE POWER 1.3KW/7000RPM CARBURETOR DIAPHRAGM FUEL TANK CAPCITY 0.9LTR TUBE DIAMTER 26MM...
- Page 4 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER...
- Page 5 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER SL NO RIPL PART NO DESCRIPTION SL NO RIPL PART NO DESCRIPTION AM-500HC-BC-EA01 SCREW AM-500HC-BC-EA17 VALVE OIL SEAL AM-500HC-BC-EA02 ENGINE COVER AM-500HC-BC-EA18 MUFFLER DUAL-HEAD SCREW AM-500HC-BC-EA03 ADIABATIC WASHER AM-500HC-BC-EA19 EXHAUST WIND BOARD...
- Page 6 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER SL NO RIPL PART NO DESCRIPTION SL NO RIPL PART NO DESCRIPTION AM-500HC-BC-EA33 ORIENTATION PIN AM-500HC-BC-EA49 SCREW AM-500HC-BC-EA34 OIL PIPE CLIP AM-500HC-BC-EA50 FANCOVER AM-500HC-BC-EA35 LUBRICATING OIL PIPE AM-500HC-BC-EA51 SCREW AM-500HC-BC-EA36...
- Page 7 ENGINE DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER SL NO RIPL PART NO DESCRIPTION SL NO RIPL PART NO DESCRIPTION AM-500HC-BC-EA65 TIMING BELT WHEEL AM-500HC-BC-EA74 THE SECONDHALF CARANK CASE AM-500HC-BC-EA66 THROW OIL BOARD AM-500HC-BC-EA75 SCREW AM-500HC-BC-EA67 OIL SEAL...
- Page 8 TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER...
- Page 9 TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER SL NO RIPL PART NO DESCRIPTION SL NO RIPL PART NO DESCRIPTION AM-500HC-BC-T01 Small Safety Guards AM-500HC-BC-T4.1 Right grip ass' AM-500HC-BC-T1.1 heads screws AM-500HC-BC-T4.2 Right handle (1-5) AM-500HC-BC-T1-5 Spring cushion AM-500HC-BC-T4.3...
- Page 10 TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER SL NO RIPL PART NO DESCRIPTION SL NO RIPL PART NO DESCRIPTION AM-500HC-BC-T6.2 Throttle line 10-1 AM-500HC-BC-T10.1 Safety guard AM-500HC-BC-T07 Single shoulder strap 10-2 AM-500HC-BC-T10.2 Localizer for safety guard AM-500HC-BC-T08...
- Page 11 TRANSMISSION DIAGRAM & SPARE PARTS LIST OF AM-500HC-BC-4S-PRO BRUSH CUTTER SL NO RIPL PART NO DESCRIPTION SL NO RIPL PART NO DESCRIPTION 12-6 AM-500HC-BC-T12.6 Inner 6 angles screws 12-16 AM-500HC-BC-T12.16 Oil seal 12-7 AM-500HC-BC-T12.7 Inner 6 angles screws 12-17 AM-500HC-BC-T12.17...
-
Page 12: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 13 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 14 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 15 DONTS attempting to use the equipments. Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before trousers and jackets while operating potentially dangerous machines 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, 3.
- Page 16 NO. 1 CHOICE OF FARMERS SINCE 1999 RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
