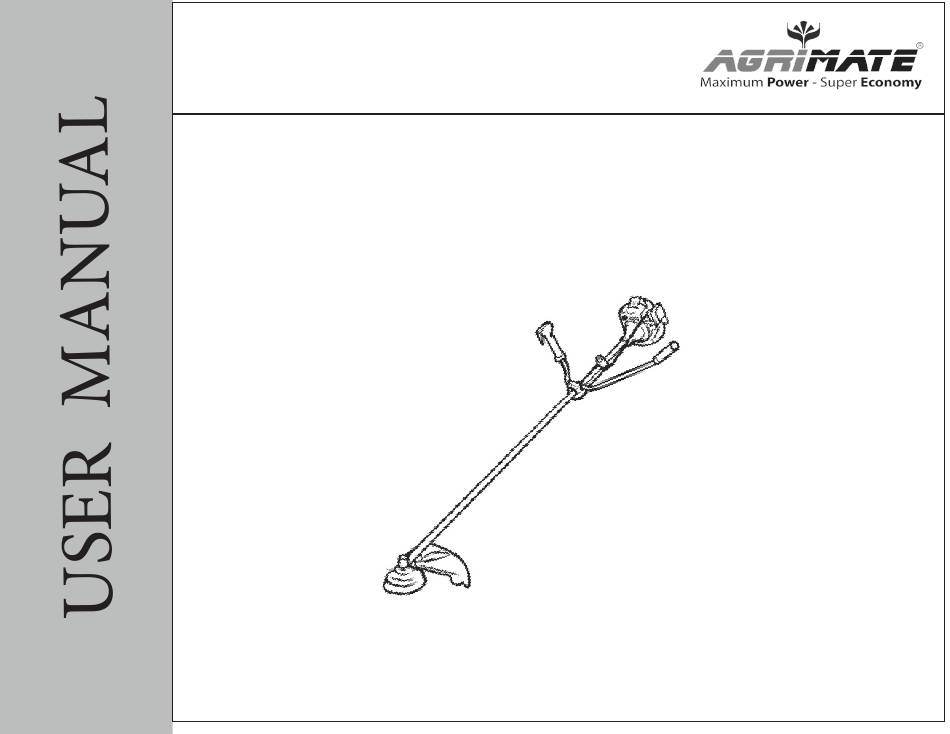

  • Page 1 AGRIMATE BRUSH CUTTER AM-3000-BC-2S-WC-PRO...
  • Page 2 INTRODUCTION Dear Sir/ Madam, Thank you for choosing Agrimate product. You are the proud owner of high technology & dura- ble machine.Trust that our Franchisee/Dealer installed the product & installed the product and explained you about the usage & service instrcuctions. Please visit our autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS STROKE 2-STROKE ENGINE SINGLE CYLINDER AIR COOL ENGINE DISPLACEMENT 26CC ENGINE POWER 0.65KW/6500RPM FUEL TANK CAPACITY 0.65LTR CARBURETOR DIAPHRAM TYPE WALBRO STARTING SYSTEM RECOIL STARTER IGNITION MODE STOP MODE SWITCH STOP AIR CLEANER SPONGE SPARK PLUG TORCH HANDLE POLE 19mm(Diameter)*1.5mm(Thinkness)

  • Page 4: Maintenance And Care

    MAINTENANCE & CARE Fuel filter • Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe and can be picked out through fuel port with a piece of hooked wire or the link. •...

  • Page 5: Air Filter

    • The cutting attachment must not rotate in idle mode.If this requirement is not satisfied,the cluth has to be adjusted or the machine needs an urgent maintenance by a qualified techni- cian. • You may make adjustments and repairs described here. For other repairs, have the trimmer serviced by an authorized service agent.
  • Page 6 ADJUSTING CARBURETOR NOTE Do not adjust carburetor unless necessary. If you have trouble with the carburetor, see your dealer. Improper adjustment may cause engine damage and void warranty Some of the following symbols may be used on this tool. Please study them and understand their meaning.

  • Page 7: Safety Rules&Precautions

    SAFETY RULES&PRECAUTIONS Proper safety precautions must be observed. Like all power equipment this unit bmeu hstandled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. FDoAllNowG EthRese general rules. Do not permit others to use this machine unless they are tahroeroughly responsible and have read, and understand the machine manual and are trained in its operation.

  • Page 8: Engine Starting And Stopping Procedures

    ENGINE STARTING AND STOPPING PROCEDURES STARTING COLD ENGINE 1. Move the ignition switch to “START”. 2.Give a gentle push on the primer pump repeatedly (7-10times) until fuel comes into the primer pump. 3.Pull the chock lever up to close choke 4.Move the throttle trigger and keep it in position with the throttle lock (if present).

  • Page 9: Preparing For Operations

    PREPARING FOR OPERATIONS WHEN MIXING GASOLINE WITH TWO CYCLE ENGINE OIL, USE ONLY GASOLINE WHICH CONTAINS NO ETHANOL OR METHA- NOL(TYPES OF ALCOHOL). THIS WILL HELP TO AVOID POSSIBLE DAMAGE TO ENGINE FUEL LINES AND OTHER ENGINE PARTS. DO NOT MIX GASOLINE AND OIL DIRECTLY IN THE ENGINE FUEL TANK. IMPORTANT: Failure to follow proper fuel mix instructions may cause damage to the engine 1.
  • Page 10 SAFETY RULES & PRECAUTIONS • Do not use the unit if it is damaged or poorly adjusted. Never remove the machine’s guard. Serious injury to the operator or bystanders could occur as well as damage to the machine. • Inspect the area to be cut and remove all debris that could become entangled in the nylon cutting head. Also remove any objects that the unit may throw during cutting.
  • Page 11 • Pay attention to loosening and overheating of parts. If there is any abnormality of the machine, stop operation immediately and check the ma- chine carefully. If necessary, have the machine serviced by a authorized dealer. Never continue to operate a machine which may be malfunction- ing.

  • Page 12: Fuel&Oil Mixture

    FUEL&OIL MIXTURE Fuel used for this model is a mixture of unlead gasoline and approved engine lubricant. When mixing gasoline with two-cy- cle engine oil, use only gasoline which contains NO ETHANOL or METHANOL(Types of Alcohol) Use Branded 91 octane or higher unlead gasoline known to be of good quality.

  • Page 13: Cutting With A Blade

    CUTTING WITH A BLADE SCYTHING WEEDS. This is cutting by swinging the blade in a level arc. It can quickly clear areas of field grass and weeds. Scything should not be used to cut large, tough weeds or woody growths. Scything can be done in both directions, or just in one way which results in the debris being thrown away from you.
  • Page 14 DESCRIPTION...

  • Page 15: Cutting With A Nylon Head

    CUTTING WITH A NYLON HEAD TRIMMING: This is feeding the trimmer carefully into the material you wish to cut. Tilt the head slowly to direct debris away from you. It’ cutting up to a barrier such as fence, wall or tree .approach from an angle where anydebris ricocheting off the barrier will fly away from you.
  • Page 16 USING THE SHOULDER HARNESS 1.Assemble and adjust the shoulder harness and belt, as shown. 2.Adjust the shoulder-harness button, and move the hook to your waist, then adjust the belt(If there is a belt). 3.Hang the latch tab on the harness hook. 4.If the brush cutter does’t balance, then adjust the harness hanger, and the handlebar, until it balances.

  • Page 17: Blade Installation

    INSTALLING PLASTIC SHIELD Install the safety cover on the shaft with the safety cover bracket and the screws provided. Tighten the screws after setting the safety cover bracket at the appropriate position. BLADE INSTALLATION -Insert the hex key (2) into the specific hole in the angle transmission (3) and rotate the nut (7) by hand until the hex key enters the inner hole , blocking rotation.
  • Page 18 ASSEMBLY HEAD LINE INSTALLATION Insert the hex key (2) into the specific hole in the angle transmission (3) and rotate the key gasket (4) by hand until the hex key enters the inner hole, blocking rota- tion. - Ensure that the grooves in the key gasket (4) mach up perfectly with the angle transmisson(3).
  • Page 19 Read the operator’s manual carefully. Be thoroughly familiar with the controls and proper use of the unit. Know how to stop the unit and shut off the engine.Know how to unhook a harnessed unit quickly. Never allow anyone to use the unit without proper instruction.Be sure the operator wears the foot, leg, eye, face and hearing protection.
  • Page 20 TRANSMISSION DIAGRAM & SPARE PART LIST...
  • Page 21 TRANSMISSION DIAGRAM & SPARE PART LIST SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-3000-BC-T01 Trimmer head AM-3000-BC-T17 Combined screw AM-3000-BC-T02 Lock nut AM-3000-BC-T18 Switch handle AM-3000-BC-T03 Blade sheild AM-3000-BC-T19 Upper handle base AM-3000-BC-T04 Press plate AM-3000-BC-T20 Middle handle base AM-3000-BC-T05 2T Blade AM-3000-BC-T21...
  • Page 22 ENGINE DIAGRAM & PART LIST...
  • Page 23 ENGINE DIAGRAM & PART LIST SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AX-33-E01 Air filter cover screw AX-33-E18 Saddle washer AX-33-E02 Air filter cover AX-33-E19 Clutch housing shoe AX-33-E03 Aponge filter AX-33-E20 Washer AX-33-E04 Screw AX-33-E21 Spring AX-33-E05 Air filter inside cover AX-33-E22...
  • Page 24 ENGINE DIAGRAM & PART LIST SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AX-33-E33 Key-Crank Shaft AX-33-E49 Engine cover AX-33-E34 Crank Shaft Assy AX-33-E50 Washer AX-33-E35 Small Crank Case AX-33-E51 Rubber cap AX-33-E36 Start Reel AX-33-E52 Spring AX-33-E37 Spring AX-33-E53 Rubber seat...
  • Page 25 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AX-33-E65 Piston ring AX-33-E76 Gasoline discharge pipe AX-33-E66 Piston AX-33-E77 Seal AX-33-E67 AX-33-E78 Filter AX-33-E68 Piston pin AX-33-E79 Fuel tank AX-33-E69 Bearing AX-33-E80 Fuel tank pipe assy AX-33-E70 Piston clip AX-33-E81 Screw AX-33-E71...

  • Page 26: Warranty Card

    WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE...
  • Page 27 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
  • Page 28 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
  • Page 29 DONTS attempting to use the equipments. Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before trousers and jackets while operating potentially dangerous machines 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, 3.
  • Page 30 NO. 1 CHOICE OF FARMERS SINCE 1999 RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
