Summary of Contents for Sovol SV01 PRO

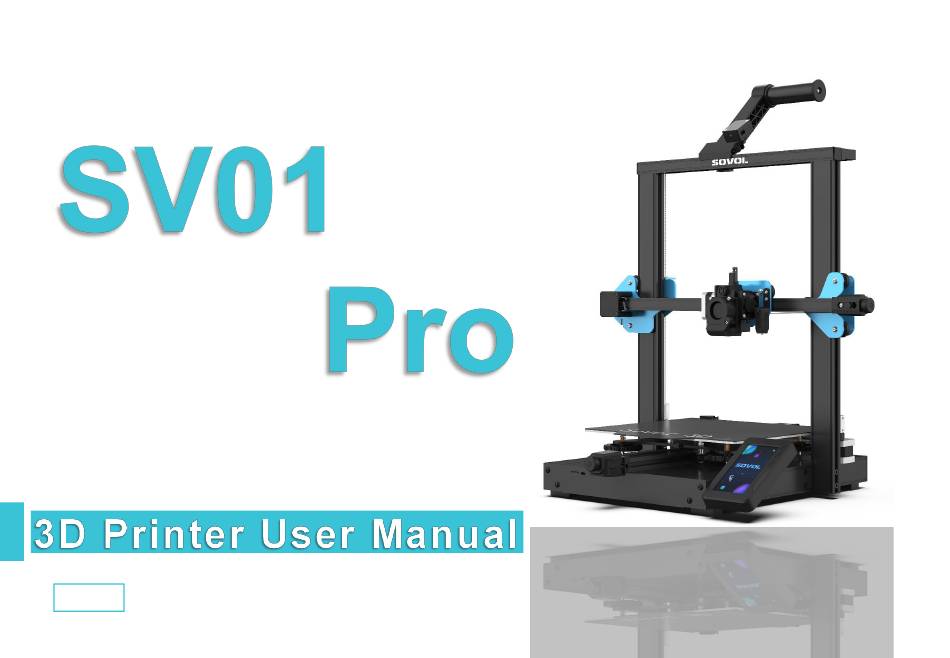

- Page 1 SOVOL 3D This guidebook is for Sovol SV01 Pro 3D printer. Please plug the power cable into a three-hole power jack. Detailed tutorial for are available in the TF card. V1.0...
-
Page 2: Table Of Contents
Install Gantry Components even if you are familiar with the 3D Printing technology, as there is lots of important information about the SV01 Pro for you to Install the Material Rack learn and help you get better printing exprience. In this manual there are tutorial... - Page 3 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Sovol will not be responsible for any violators' legal liability under any circustance.
-
Page 4: Introduction
1. Introduction Machine base frame Gantry Y axis belt Y motor limit switch Y-axis belt tensioner X axis bracket switching power supply X axis belt tensioner X axis belt Extruder assembly X-axis passive portion Kits Metal chassis Kit Touch screen Hotbed... -
Page 5: Equipment Parameters
2. Equipment Parameters Basic Parameters Model SV01 Pro Software language English Print method TF card, USB connection Molding Number of nozzles Print size 280*240*300mm Layer thickness 0.1~0.4 mm（ Adjustable） Printing speed 50-80mm/s Nozzle diameter Standard 0.4 (Adjustable) Nozzle temperature ≦260℃... -
Page 6: Package List
3. Package List Touch screen×1 Base×1 Gantry×1 Filament holder×1 Tool List Power cable Screw pack Wrench tool kit Zip tie Diagonal pliers Card reader/TF card Needle Teflon tube Spatula Spare nozzle... -
Page 7: Install Gantry Components
4. Install Gantry Components Install gantry components Machine base x1 1. The cables on the extruder assembly, including CR touch cable, extrusion motor wire, fan cable, nozzle thermistor and heating pipeline, shall be fixed on the extrusion motor mounting bracket with black tape. If it is disassembled, please fix it again before use. -
Page 8: Install The Material Rack
5. Install the Material Rack Install the material rack Filament holder×1 1. Put the filament holder vertically with the top profile of the gantry and check the position, press it to let it be clamped on profile. -
Page 9: Install The Touch Screen
6. Install the Touch Screen Install the touch screen Touch screen assembly x1 1. Fix the touch scren assembly on the screen holder. Tips： Select the correct input voltage to match your local mains (230V or 115V). -
Page 10: Equipment Wiring
7. Equipment Wiring Equipment wiring Tips： The filament sensor must have filament inserted and detected so that the printer can print normally. Power cable 1. The wires on the nozzle assembly, including CR touch leveling wire, extrusion motor wire, fan wire, nozzle thermal and Filament sensor connection heating pipeline, shall be fixed on the extrusion motor mounting bracket with... - Page 11 8. Equipment Wiring Equipment wiring 3.Use the zip tie, tie up the X-axis motor cable and the limit switch cable with the back plate 1. The z-axis motor cable is connected with the through the hole on the back plate to make the mainboard through the metal plate opening of the clean wire management.
-
Page 12: Interface Information
9.Interface Information Click the nozzle Click the sun/moon temperature or hot bed icon on the top of temperature icon to enter the screen to switch Target nozzle temp Current nozzle temp the right interface to the theme day adjust the temperature mode/night mode Target hotbed temp Current hotbed temp... -
Page 13: Bed Leveling
10.Bed Leveling 1. Click Leveling, the printer will start initial leveling, x y z axis will auto home, the CR touch will probe in the center. 2. When the CR Touch stop to probe, put a piece of A4 paper between the nozzle and the hotbed, click -Z or Z+ to move the extruder down or up to adjust the distance between the nozzle and the hotbed, click Save.(Drag the paper, When you feel the nozzle can scratch the paper slightly, that means the distance is perfect.) 3. -
Page 14: Load Filament
11. Load Filament When you wait for the temperature to rise,hang the filament over the Filament Holder. The filament holder and the filament sensor should be placed as shown in the picture to load filament smoothly. - Page 15 12.Load Filament When it reaches the target temperature, load the filament through the filament sensor into the small hole of the Extruder until it reaches the nozzle. If the filament flows out from the nozzle, it presents that the filament is properly loaded. Q：How to replace filament? Method 1: After preheating the nozzle, push the filament forward a little bit, quickly draw out the filament, then load the new filament.
-
Page 16: Start Printing
13.Start Printing ① Install Sovol3D Cura software ② Slicing Open slicer→Import（Open file）→Select the file→Click slice→Save Select Other → SV01 → Rename the printer：SV01 Pro → Add Printer. to file (Save to the TF card) >> >> >> >> >> >>... - Page 17 14.Start Printing ③ Printing Select The File → Start Printing (File name only supports English numbers). Select the file Print Print progress Warning：① Do not save more than 20 files in the TF card. ② Do not put any other files except Gcode. Otherwise, it may cause unstable operation of the machine or printing failure.
-
Page 18: Printer Maintenance
15. Printer Maintenance 1. Level the bed carefully to prevent scratching the bed with the nozzle. 2. If the belt is loose, turn the belt tensioner to adjust the tension of belt, the belt can’t be too loose , can’t be too tight, or the belt can break.(As shown in Figure A) 3. -
Page 19: Circuit Wiring
16. Circuit Wiring Extrusion motor port X-axis motor port Y-axis motor port Z-axis motor port TF card slot Micro USB port Controllable fan Screen port Fuse CR-Touch optional port Power port Nozzle thermistor port Normal fan Hotbed Nozzle Pre- X-axis Y-axis Z-axis port... -
Page 20: Trouble Shooting
17. Trouble Shooting...
