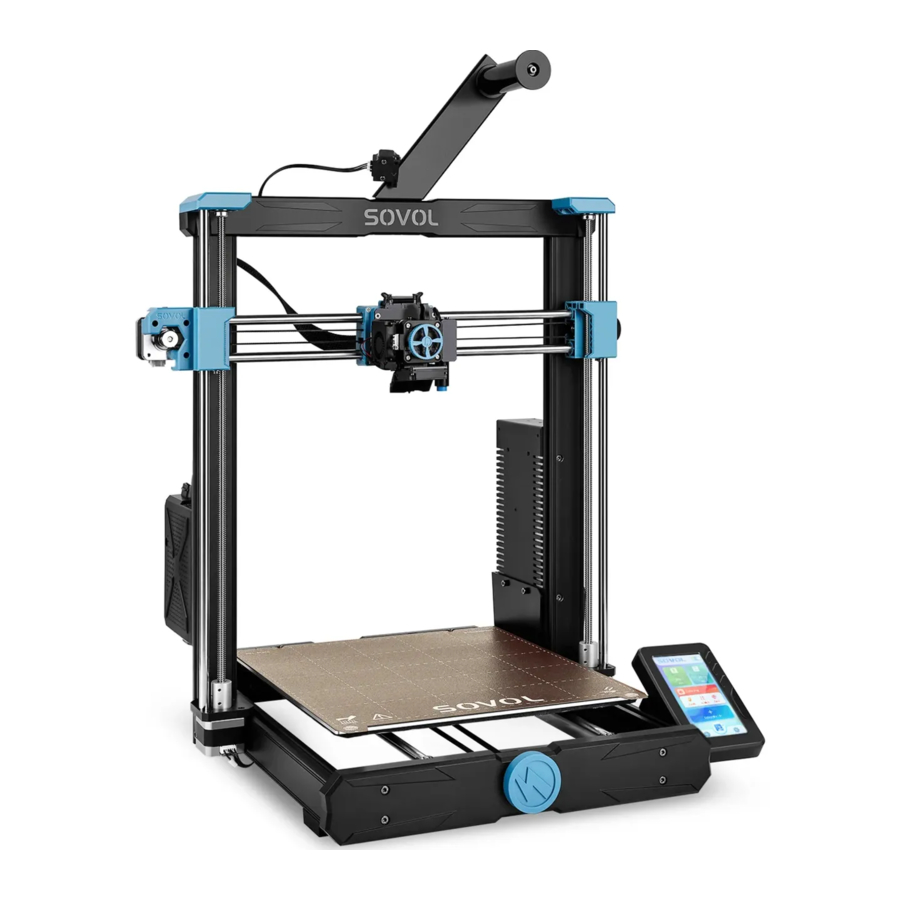

Sovol SV06-PLUS - 3D Printer Manual

Equipment Parameters

Package List

Assembly

Install gantry

1. Install gantry on the base with 4 M5X50 screws, and tighten the screws.


Install power supply

1. Install the extruder kits on the sliding base via 3 M3X5 screws and tighten the screws.


Install extruder kits

Install control box

1. Please turn the aircraft switch on the control box hanging plate to the left from locked state to unlocked state.

2. Install control box on the hanging plate.

3. Press the entire control box downward to lock it to hanging plate.

4. Re-rotate the aircraft switch to lock position.


Install filament holder

1. Install filament plate to the top of the machine with 2 M5X10 screws.


2. Install filament barrel.

Install touch screen

1. Mount the touch screen bracket to the profile on the right of the base via 3 M4X12 screws.


2. Mount the touch screen on the bracket, push and pull it downward, and fix it in the groove.


Connect cable

Information of touch screen

Leveling

Leveling-1

1. Click the "Leveling" on the main interface, the machine will auto home first. After the machine stops, click "Auto Z-axis Alignment", and the whole X-axis beam of the machine will ascend to the top and then descend to zero again.


Leveling-2

2. After the machine stops, adjust the Z offset value in order to adjust the distance between nozzle and hot bed.


Remember to click "Save" after leveling.

About 0.2mm, like the thickness of a piece of A4 paper. When you drag the paper between the nozzle and the hotbed, if the nozzle can scratch on the paper slightly, that means the distance between the nozzle and the hotbed is suitable.

Leveling-3

3. Click the "Auto Leveling" icon after finishing adjustment, and the machine will enable 25-point detection.


Remember to click "Save Settings" after detecting.

After clicking "Auto Leveling", the nozzle will rise to 120℃ and the hot bed will rise to 60℃. Please wait patiently and avoid scalding.

Load filament

1. Click the temperature icon → select preheat PLA/ABS on the main interface.

2. When the temperature reaches the target value, cut the front end of filament at a 45° bevel and insert it into the feed port for about 20mm. Hold it downward with your hand and turn the wheel in a clockwise direction until filament could be seen extruding out of the nozzle.


Replace filament

1. Main interface → Click the gear icon to enter the setting interface → Click "Refuel".

2. Enter "50" and click "Retreat". If the nozzle temperature is too low, it will prompt you to heat up. Please click "Yes".
3. Wait until the temperature rises to the target value, click "Retreat" again, the machine will withdraw to the feed port automatically, then insert new filament to start printing.

Printing

1. Double click the file "Sovol-Cura" installed in the TF card.

2. Select to add SV06-Plus.

3. Select to add the model you want to print.

4. Click slice and save the file to TF card.

5. Insert the TF card into the card slot on the control box.

6. In the interface →Click "Select Files" → Select files to print.


Mainboard

Notice

• Do not use the printer by any way except as otherwise described herein to avoid personal injury or property damage.
• Do not place the printer in an environment with heavy vibration or other unstable factors. Printer shaking will affect printing quality.
• Do not place the printer near inflammables and explosives or heat sources.
• Keep the printer in a well-ventilated, cool and dust-free place.
• It is suggested to use the materials recommended by manufacturer in order to avoid machine damage.
• Do not use any power cord other than the accompanied one. Use grounded three-phase power outlet.
• Do not wear cotton gloves while operating the printer. This type of fabric may be wound in the printer's motion parts, which can cause burns, personal injury, or printer damage.
• Wait for a moment after printing to remove the prints.
• It is not recommended to use third-party firmware or motherboard; otherwise, the warranty will be void.
• Clean the printer frequently. Prior to cleaning, turn off the power supply; use a dry cloth to wipe off dust, adhesive printed plastic or any other materials from the frame, rail or wheels. Use glass cleaner or isopropyl alcohol to clean printer surface.
• Children below 10 years old shouldn't use the printer alone.
• Do not move the nozzle and printing mechanism with your hands during printing.
• Users shall abide by relevant laws and regulations of the countries and regions where the printer is placed (used) and professional ethics, perform safety obligations, and do not use our product or device for any illegal purpose. In no case shall Sovol bear any legal responsibilities for anyone breaching laws.
