Nemalux ZLM Series Installation Manual

ZLM Series Installation Manual
SINGLE UNIT FIXED MOUNT INSTALLATION
APPLICATION

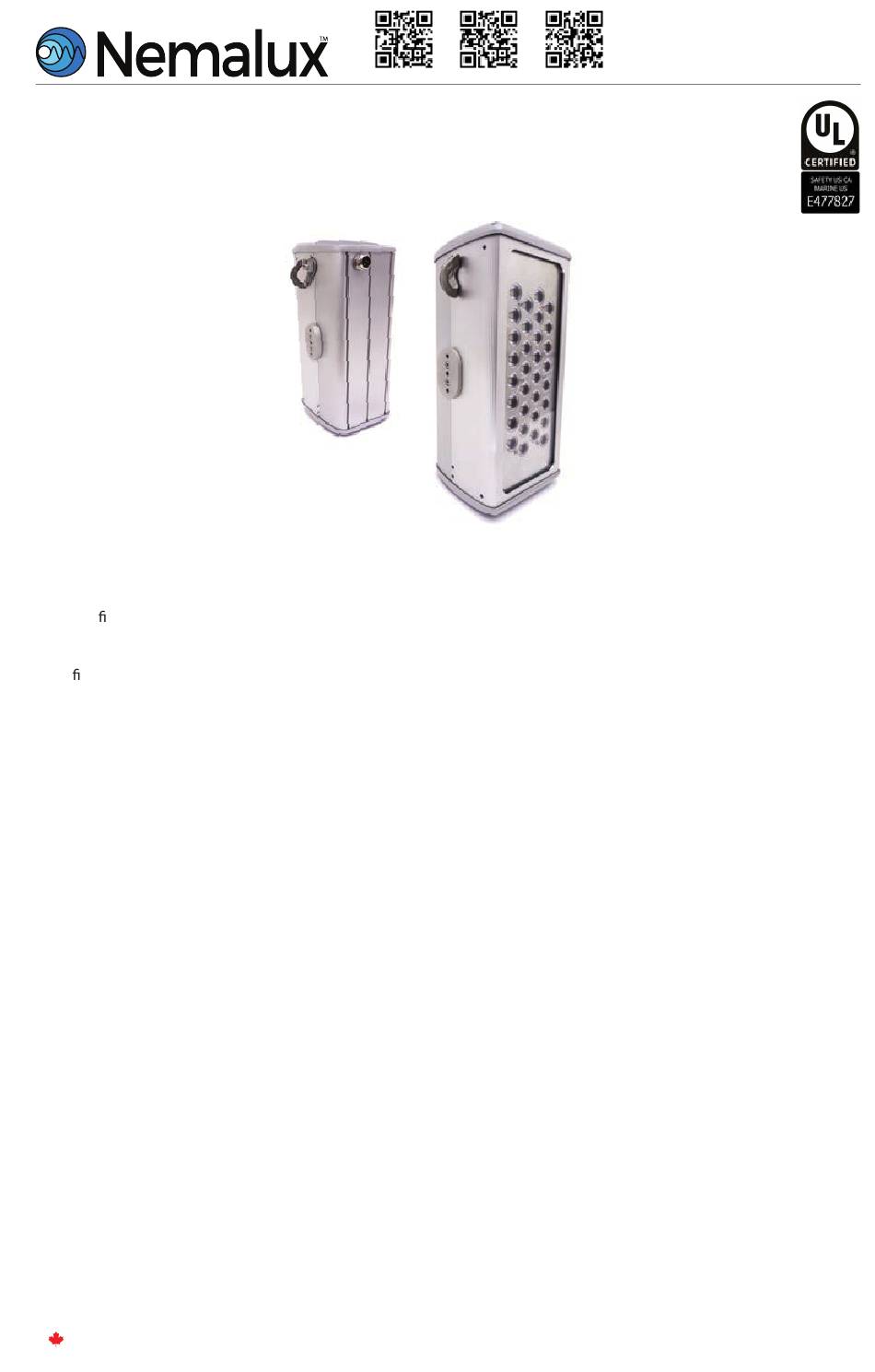

The ZLM luminaire is an industrial-grade product suitable for general locations. Installation areas
include indoor, outdoor, and wet locations. This product family is commonly exposed to moisture,
dirt, corrosion, vibration, and rough usage. ZLM luminaires are suitable for use in the following
areas de ned by the National Electrical Code (NEC) and the Canadian Electrical Code (CEC).
Certi ed to:
Housing:
Rated Voltage:
Rated Current:
Connections:
Temperature Range:
Ingress Protection:
MADE IN CANADA
Installation
UL1598
CSA 22.2 NO. 250.0, CSA C22.2 NO 250.13
High pressure die-cast aluminum end caps, extruded aluminum body &
polycarbonate lens.
120-277 VAC , 50/60 Hz
ZLM: 2.5A | ZLM2: 4.9A
Standard: Black: Line | White: Neutral/Line 2 | Green: Ground
Dimming: Black: Line | White: Neutral/Line 2 | Green: Ground
Red: Dimming (+) | Orange: Dimming (-)
*For connections use wire rated to a minimum of 90° C
-40° C to +45° C
IP66 | Suitable for wet locations.
