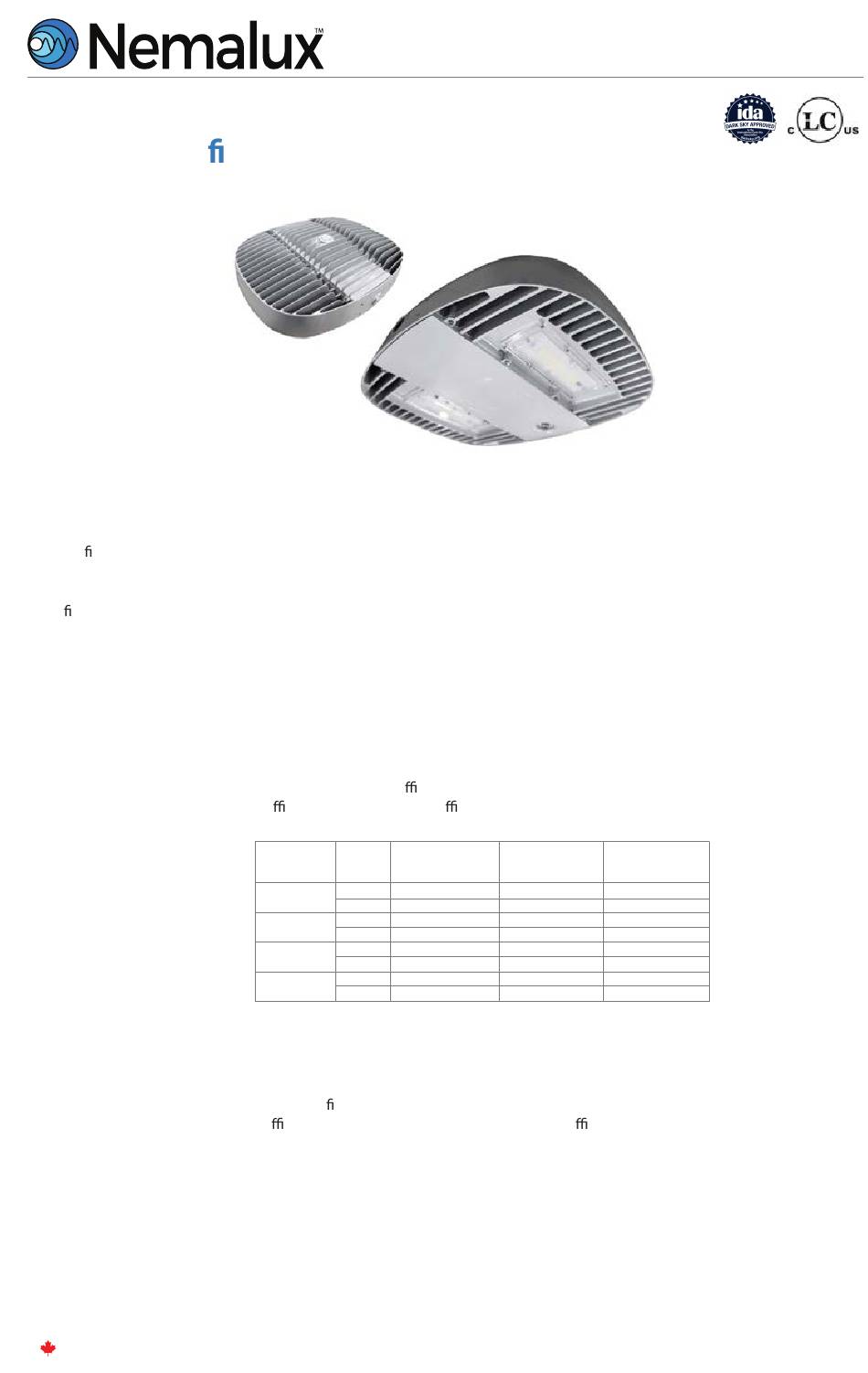

Nemalux XR Series Installation Manual

XR Series Installation Manual
Zone 21 Certi cation
APPLICATION
The XR luminaire is an industrial-grade product suitable for harsh and hazardous locations.
Installation areas include indoors, outdoors, and wet locations. Frequent exposure to moisture,
dirt, corrosion, vibration, and rough usage is common for this product family. The XR-Z21 is Zone
21 certi ed for Canada. Zone 21 areas are high-risk environments for explosive powder or dust.
Models, including "-HZ-," are approved for use in hazardous location areas.
Certi ed to:
Hazardous Location
Certication:
Housing:
Input Voltage:
Electrical Ratings:
Connections:
Ambient
Temperature Range:
Ingress Protection:
MADE IN CANADA
Conforms to: CSA C22.2 NO. 60079-0, CSA-C22.2 NO. 60079-31,
CSA-C22.2 No250.0 and CSA-C22.2 No. 250.13
Ex tb IIIC Db T92°C -50°C <Ta< +50°C
Zone 21
Copper-free die cast aluminium with polycarbonate lens.
Based on luminaire su x in table below:
Su x - AC: 120-277 VAC | Su x - HV: 347-480 VAC
INPUT
LUMINANCE
VOLTAGE
AC Flood: 47 Optic: 60
XR8
HV Flood: 49 Optic: 64
AC Flood: 55 Optic: 75
XR10
HV Flood: 58 Optic: 77
AC Flood: 84 Optic: 103
XR15
HV Flood: 91 Optic: 107
AC Flood: 141 Optic: 156
XR20
HV Flood: 148 Optic: 160
3 x 3/4" NPT Conduit | Black: Line | White: Neutral/Line 2 | Green: Ground
Optional: Violet: 0-10V Dimming (+) | Grey: 0-10V Dimming (-)
For connections use wire rated to a minimum of 90°C. Class 1 Wiring only.
All supply eld wiring must be rated 300V minimum for luminaires with
su x AC, 600V minimum for luminaires with su x HV.
All models -50°C to +50°C
IP66 | Suitable For wet locations.
www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190
RATED WATTAGE RATED VOLTAGE
[Watts] [Volts]
120-277
347-480
120-277
347-480
120-277
347-480
120-277
347-480
XR-Z21
LC21CA19098-1X
FREQUENCY
[Hz]
50/60
50/60
50/60
50/60
50/60
50/60
50/60
50/60
rev. C-01
1-19
