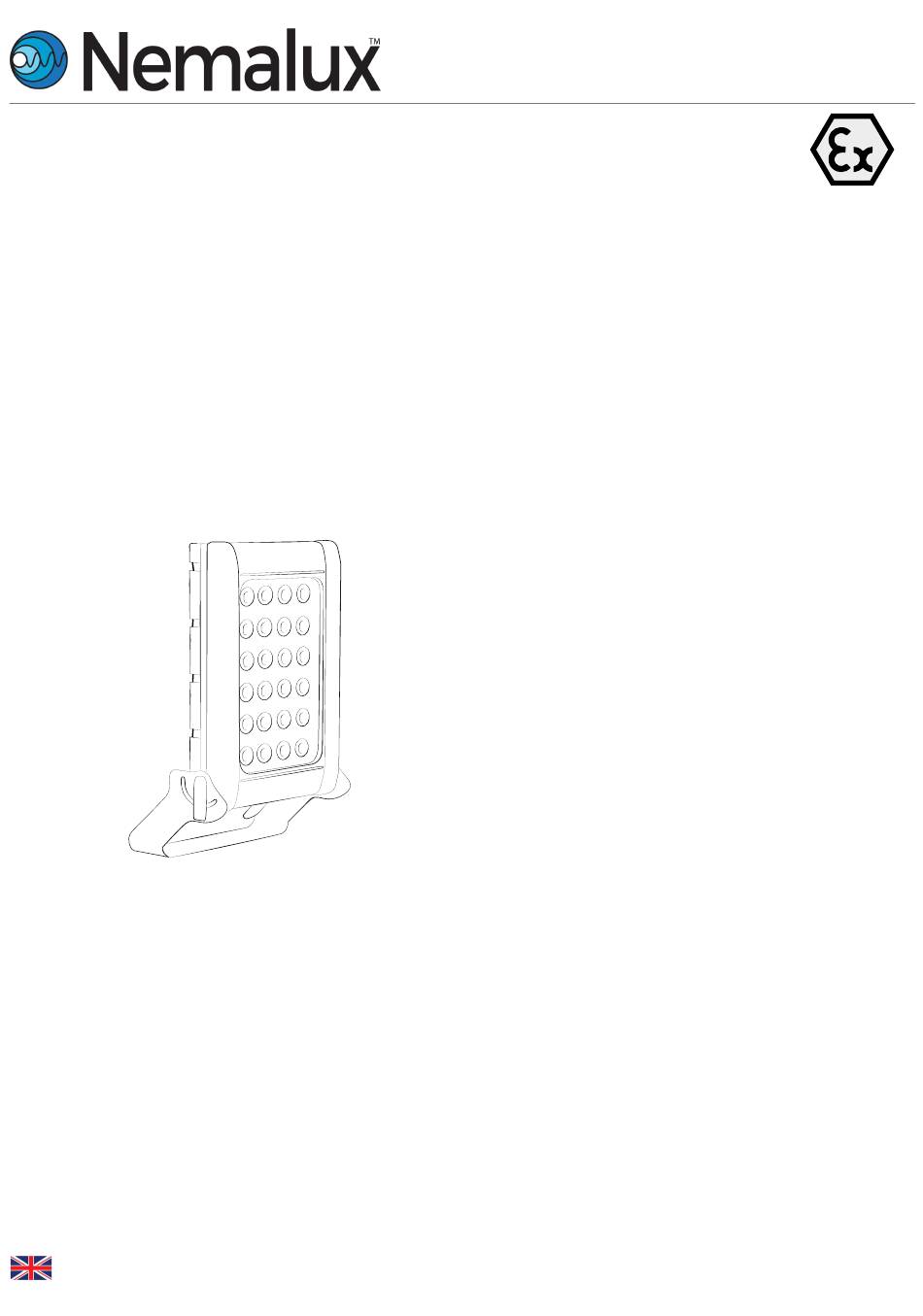

Nemalux RH-20 Series Installation Manual

High Power Luminaire Range - Installation Guide
Zone 1 and 21 Variant CML 17ATEX1148 & IEC Ex CML17.0074 or CML21UKEX1102 Zone 2 and
22 Variant CML 17ATEX4149 & IEC Ex CML17.0074 or CML21UKEX4101 Zone 21 Dust only
Variant CML 18ATEX3161 & IEC Ex CML18.0087 or CML21UKEX3107
This installation guide provides instructions for installing the RH Highbay/ Floodlight series of
explosion protected floodlights.
Overview
Important information
The RH-20/25 series of explosion protected floodlights/highbay are specialist devices,
certified for use in specific operating environments.
The units must be installed in accordance with these instructions, must be correctly certified
for the specific operating environment and must be installed by suitably qualified personnel.
If you have any queries about the installation or the certification of the unit – please contact
Nemalux for immediate assistance and advice.
MADE IN UK www.nemalux.com | sales@nemalux.com | Tel 403•242•7475 | Fax 403•243•6190
1
2
3
4
5
SUBJECT TO CHANGE WITHOUT NOTICE
RH Series
Safety Instructions
Installation
Maintenance Technical
Specification Trouble
Shooting
rev. A-21
1-12
